UT-40903 - Homelite Mightylite Hedge Trimmer, 26cc Figure B Parts Diagram

Mightylite Hedge Trimmer, 26cc

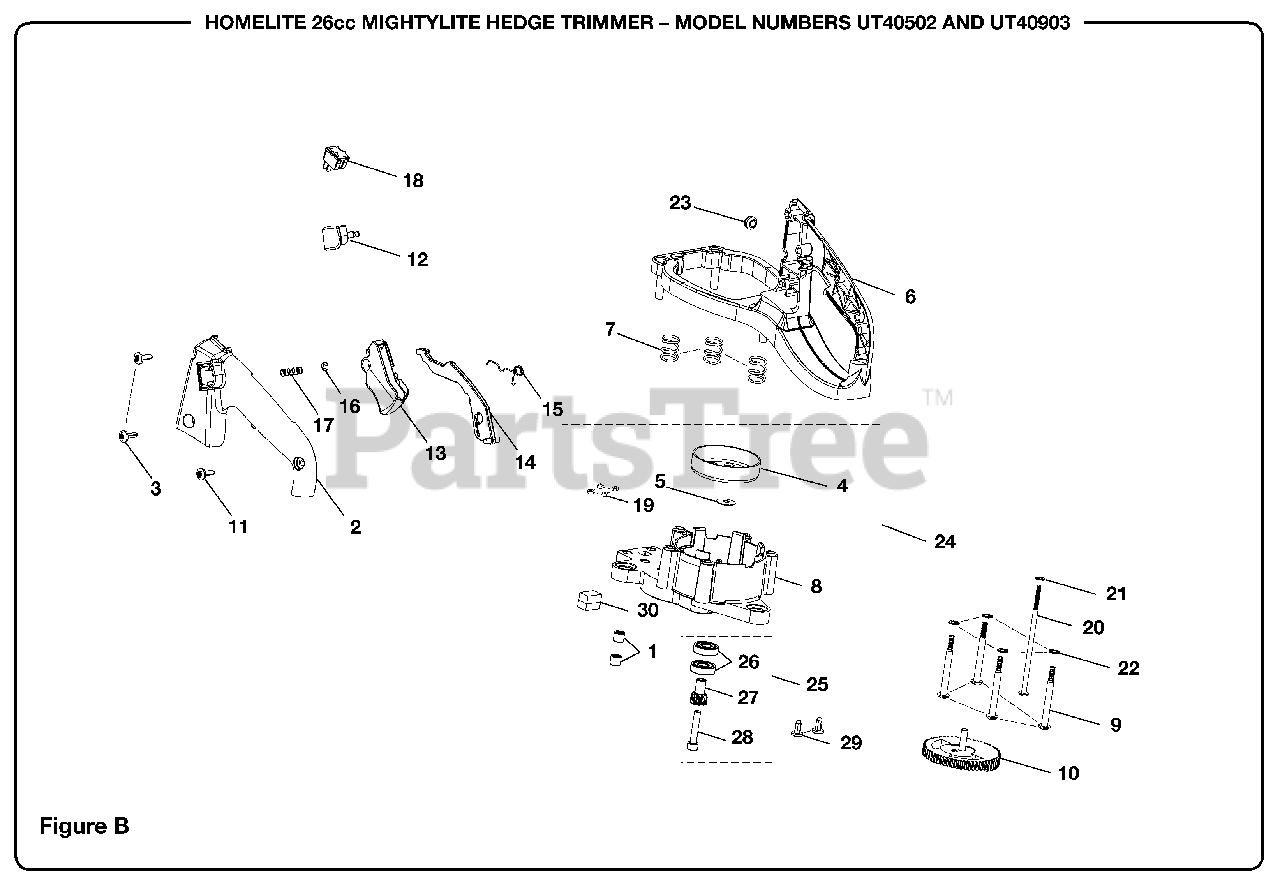

Figure B Parts Diagram

  • Title

1

Homelite 638388001

Needle Bearing

$

$

Not available

2

Homelite 518561001

Left Handle

$3.49

$

Usually ships in 3-7 days

0

3

Homelite 660468001

Screw (M5 x 25 mm)

Note: Purchase locally

$

$

Not available

4

Homelite 308794001

Clutch Drum Assembly

$8.99

$

Usually ships in 3-7 days

0

5

Homelite 678433001

Bellville Washer

$

$

Not available

6

Homelite 518559001

Handle (Rear Base)

$

$

Not available

7

Homelite 678022002

Compression Spring

$

$

Not available

8

Homelite 518553001

Gear Box

$11.99

$

In Stock, only 2 left!

0

9

Homelite 660934002

Screw (M5 x 60 mm)

Note: Purchase locally

$

$

Not available

10

Homelite 308789001

Gear & Pin Assembly

$

$

Not available

11

Homelite 660468003

Screw (M5 x 17 mm)

Note: Purchase locally

$

$

Not available

12

Homelite 518299001

Throttle Lock Pin

$

$

Not available

13

Homelite 518300001

Trigger

$

$

Not available

14

Homelite 518301001

Throttle Lockout

$1.49

$

In Stock, only 4 left!

0

15

Homelite 678037001

Torsion Spring
(Superseded to PS04914)

$1.49

$

Usually ships in 3-7 days

0

16

Homelite 638177001

Retaining Ring

$

$

Not available

17

Homelite 671073001

Compression Spring

Note: Purchase locally

$1.49

$

Usually ships in 3-7 days

0

18

Homelite 760338001

Switch
(Superseded to PS02369)

$1.49

$

Usually ships in 3-7 days

0

19

Homelite 678509001

Hex Nut (M5)

Note: Purchase locally

$1.49

$

Usually ships in 3-7 days

0

20

Homelite 660970005

Screw (M5 x 110 mm)

Note: Purchase locally

$

$

Not available

21

Homelite 638454001

Washer (M4.5)

Note: Purchase locally

$

$

Not available

22

Homelite 638453001

Washer (M6)

Note: Purchase locally

$

$

Not available

23

Homelite 570219001

Grommet

$

$

Not available

24

Homelite 220034001

Gearbox Assembly

Note: Incl Key Nos 1, 4, 5, 8,19, 25, 29 and 30

$

$

Not available

25

Homelite 308788001

Pinion Assembly

Note: Incl Key Nos 26-28

$

$

Not available

26

Homelite 678429001

Ball Bearing (609ZZ)

Note: Purchase locally

$2.99

$

Usually ships in 3-7 days

0

27

Homelite 610655001

Pinion

$

$

Not available

28

Homelite 660460001

Screw (M6 x 33 mm)

Note: Purchase locally

$

$

Not available

29

Homelite 660468002

Screw (M5 x 12 mm)

Note: Purchase locally

$

$

Not available

30

Homelite 901519001

Blade Seal

$

$

Not available
