UT-42120-A - Homelite Blower Vacuum, Electric General Assembly Parts Diagram

Blower Vacuum, Electric

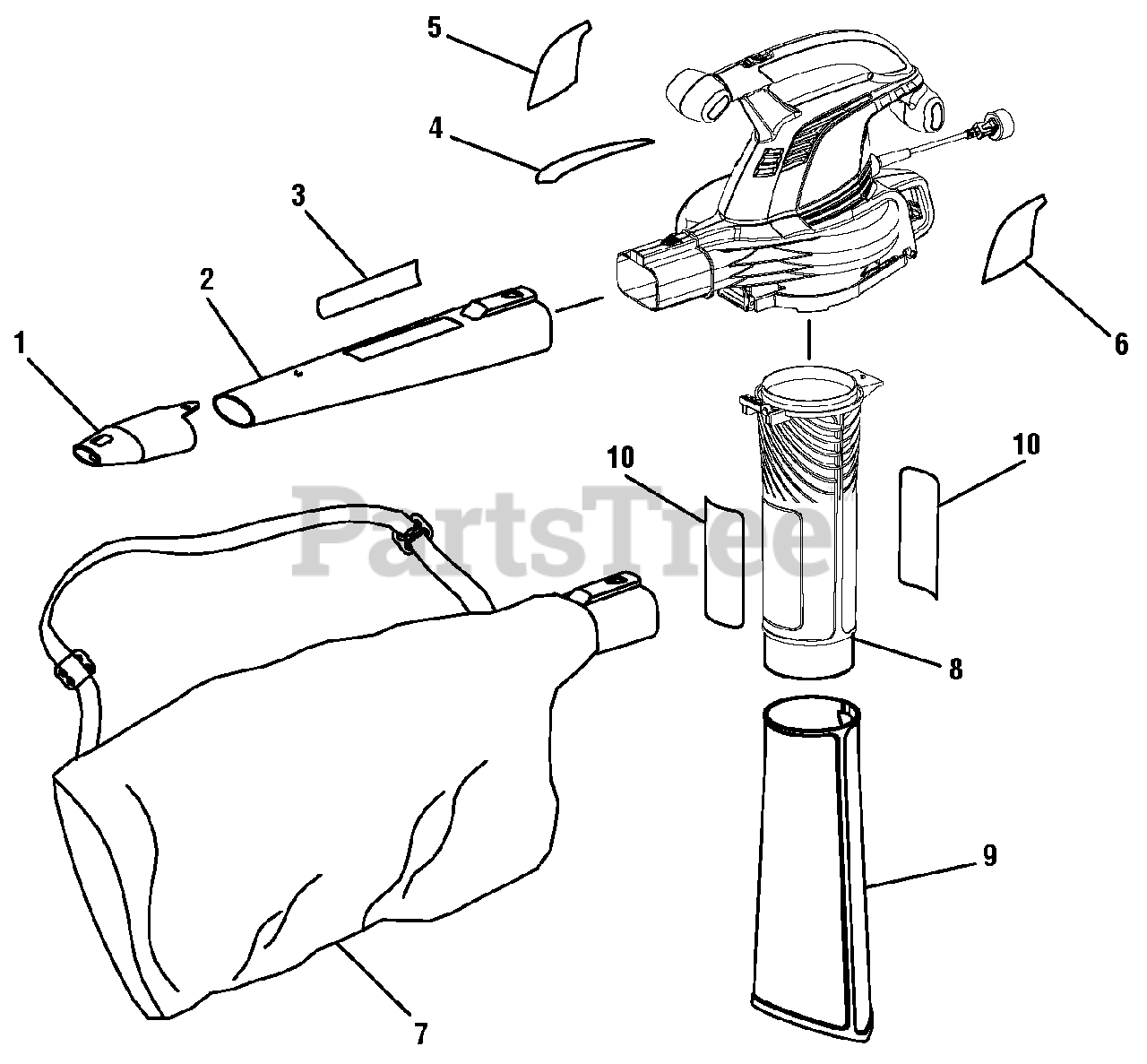

General Assembly Parts Diagram

  • Title

1

Homelite 34115142G

High Velocity Nozzle

$

$

Not available

2

Homelite 31104145AG

Blower Tube

$

$

Not available

3

Homelite 099964001901

Logo Label (Blower Tube)

$

$

Not available

4

Homelite 099964001903

Icon Label

$

$

Not available

5

Homelite 099964001904

Logo Label

$

$

Not available

6

Homelite 099964001900

Data Label

$

$

Not available

7

Homelite 31118142AG

Vacuum Bag

$

$

Not available

8

Homelite 31107145G

Upper Vacuum Tube

$

$

Not available

9

Homelite 34107142G

Lower Vacuum Tube

$

$

Not available

10

Homelite 099964001902

Logo Label (Upper Vacuum Tube)

$

$

Not available

Homelite 990000711

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
