UT-43103-A (099824002) - Homelite Chainsaw, Electric General Assembly Section "A" Parts Diagram

Chainsaw, Electric

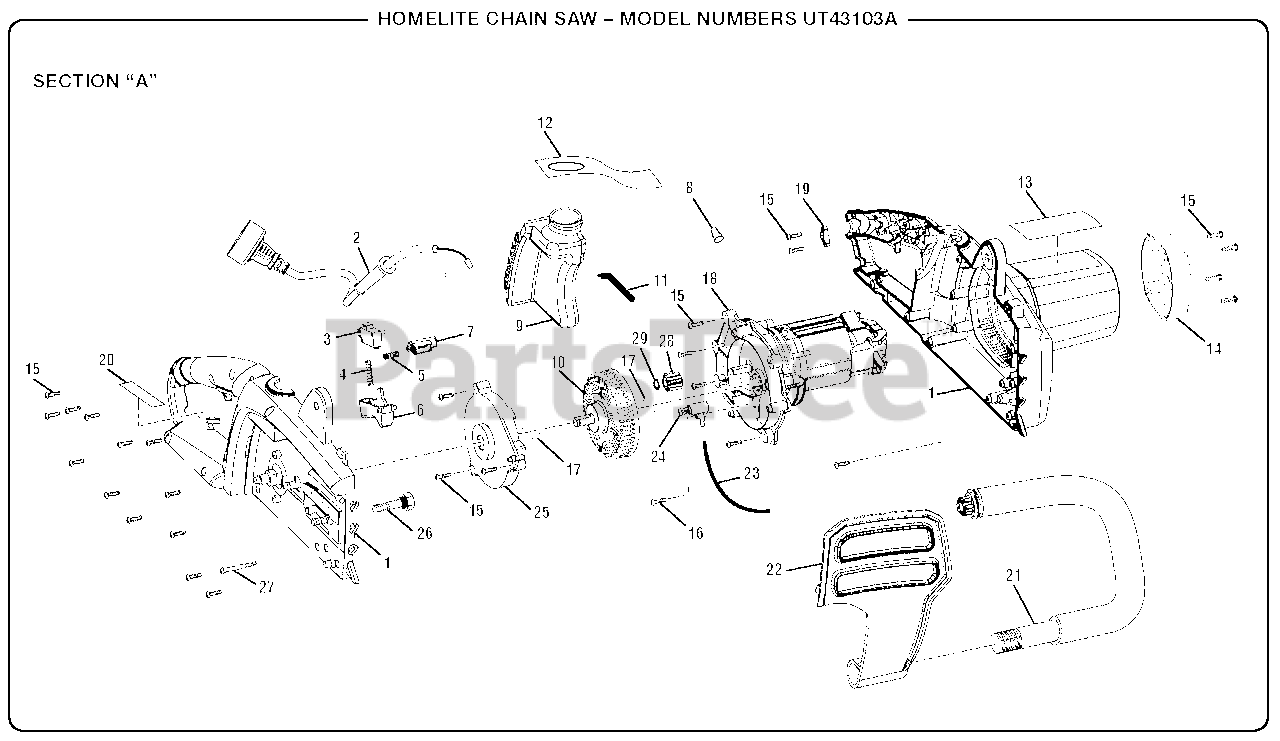

General Assembly Section "A" Parts Diagram

  • Title

1

Homelite 31100573G

Housing Assembly

$

$

Not available

2

Homelite 36401154G

Power Cord

$

$

Not available

3

Homelite 36301154G

Switch

$

$

Not available

4

Homelite 33203154G

Trigger Spring

$0.99

$

In Stock, only 1 left!

0

5

Homelite 33204154G

Lock-off Spring

$0.99

$

In Stock, only 1 left!

0

6

Homelite 34106154G

Trigger

$0.99

$

In Stock, only 1 left!

0

7

Homelite 34107154G

Lock-off Button

$

$

Not available

8

Homelite 36511154G

Wire Nut

$

$

Not available

9

Homelite 31208261G

Oil Reservoir Assembly

$

$

Not available

10

Homelite 31105573G

Ring Gear Assembly

$

$

Not available

11

Homelite 34201154G

Inlet Oil Tube

$0.99

$

Usually ships in 3-7 days

0

12

Homelite 38202154G

Hang Tang

$

$

Not available

13

Homelite 099928001900

Data Label

$

$

Not available

14

Homelite 34101153G

Motor Cap

$

$

Not available

15

Homelite 3220313G

Screw (M4 x 14 mm)

$0.99

$

In Stock, Qty 5

0

16

Homelite 3220348G

Screw (M3.8 x 14 mm)

$

$

Not available

17

Homelite 34210154G

Rubber Pin

$

$

Not available

18

Homelite 36102573G

Motor Assembly

$

$

Not available

19

Homelite 3410302G

Cord Clamp

$

$

Not available

20

Homelite 099928001901

Icon Strip

$

$

Not available

21

Homelite 34120154G

Front Handle

$

$

Not available

22

Homelite 34110154G

Guard

$

$

Not available

23

Homelite 34117102G

Outlet Oil Tube

$

$

Not available

24

Homelite 34901154G

Oil Pump

$

$

Not available

25

Homelite 34105154G

Ring Gear Cover

$

$

Not available

26

Homelite 33205154G

Chain Bar Stud

$

$

Not available

27

Homelite 32201154G

Screw (M4.2 x 45 mm)

$

$

Not available

28

Homelite 33904154G

Pinion

$

$

Not available

29

Homelite 32908154G

Retaining Ring

$

$

Not available
