UT-43120 - Homelite Chainsaw, Electric General Assembly (Part 2) Parts Diagram

Chainsaw, Electric

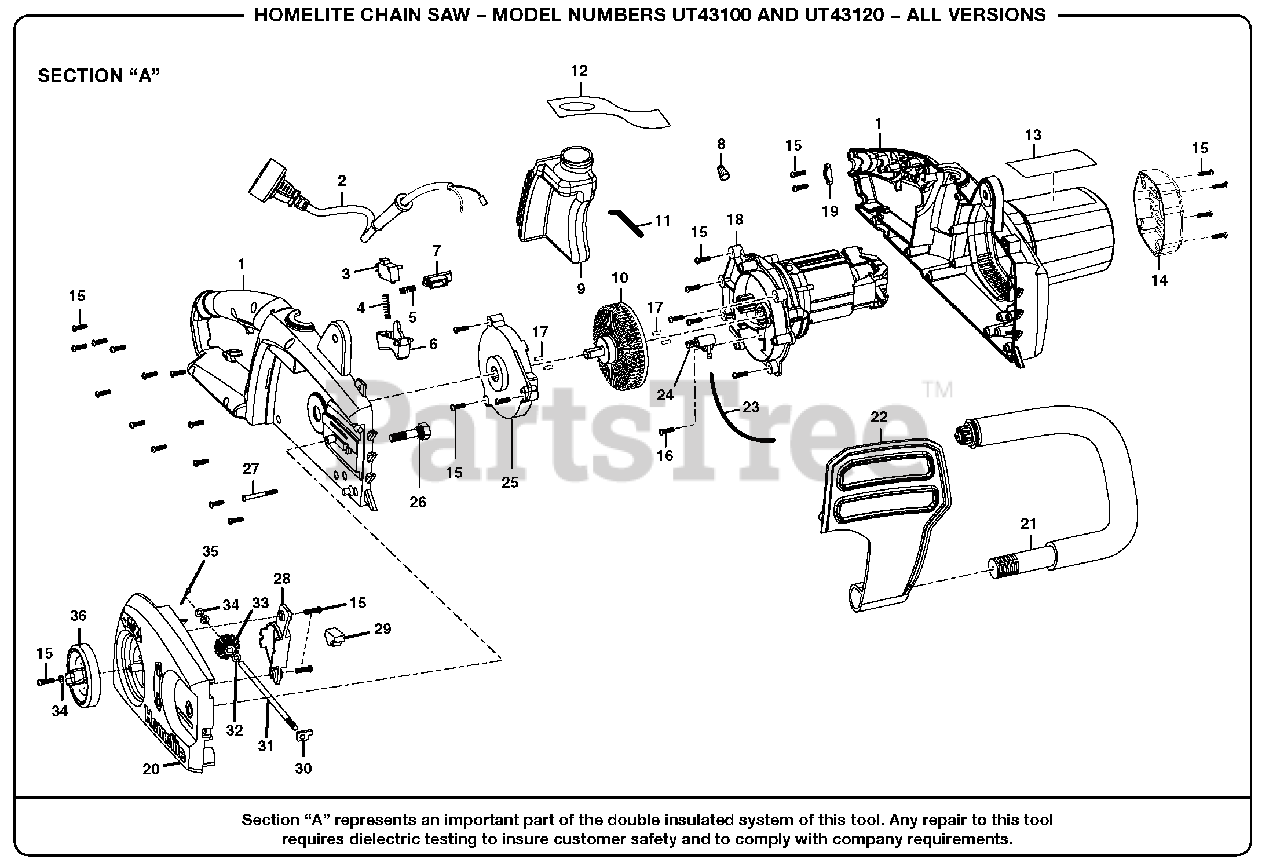

General Assembly (Part 2) Parts Diagram

  • Title

1

Homelite 31301154G

Housing Assembly

$

$

Not available

2

Homelite 36401154G

Power Cord

$

$

Not available

3

Homelite 36301154G

Switch

$

$

Not available

4

Homelite 33203154G

Trigger Spring

$0.99

$

In Stock, only 1 left!

0

5

Homelite 33204154G

Lock-off Spring

$0.99

$

In Stock, only 1 left!

0

6

Homelite 34106154G

Trigger

$0.99

$

In Stock, only 1 left!

0

7

Homelite 34107154G

Lock-off Button

$

$

Not available

8

Homelite 36511154G

Wire Nut

$

$

Not available

9

Homelite 31208261G

Oil Reservoir Assembly

$

$

Not available

10

Homelite 34118154G

Ring Gear Assembly

$

$

Not available

11

Homelite 34201154G

Oil Tube, Inlet

$0.99

$

Usually ships in 3-7 days

0

12

Homelite 38202154G

Hang Tang

$

$

Not available

13

Homelite 38101153G

Data Label

Note: (UT43100/UT43100A)

$

$

Not available

Homelite 38101154AG

Data Label

Note: (UT43120/UT43120A)

$

$

Not available

14

Homelite 34101153G

Motor Cap

Note: (UT43100)

$

$

Not available

Homelite 34103154G

Motor Cap

Note: (UT43120)

$

$

Not available

15

Homelite 3220313G

Screw (M4 x 14 mm)

$0.99

$

In Stock, Qty 5

0

16

Homelite 3220348G

Screw (M3.8 x 14 mm)

$

$

Not available

17

Homelite 34210154G

Rubber Pin

$

$

Not available

18

Homelite 36101153G

Motor Assembly

Note: (UT43100/UT43100A)

$

$

Not available

Homelite 36101154G

Motor Assembly

Note: (UT43120/UT43120A)

$

$

Not available

19

Homelite 3410302G

Cord Clamp

$

$

Not available

20

Homelite 34116154G

Chain Cover

$

$

Not available

21

Homelite 34120154G

Front Handle

$

$

Not available

22

Homelite 34110154G

Guard

$

$

Not available

23

Homelite 34117102G

Oil Tube, Outlet

$

$

Not available

24

Homelite 34901154G

Oil Pump

$

$

Not available

25

Homelite 34105154G

Ring Gear Cover

$

$

Not available

26

Homelite 33205154G

Chain Bar Stud

$

$

Not available

27

Homelite 32201154G

Screw (M4.2 x 45 mm)

$

$

Not available

28

Homelite 34119154G

Gear Cover

$0.99

$

In Stock, only 1 left!

0

29

Homelite 34208154G

Rubber Pad

$

$

Not available

30

Homelite 33311154G

Adjustment Pin

$

$

Not available

31

Homelite 33210154G

Shaft
(Superseded to 33202419G)

$

$

Not available

32

Homelite 33320154G

Washer

$

$

Not available

33

Homelite 34117154G

Adjustment Gear

$

$

Not available

34

Homelite 3290408G

Washer

$0.99

$

In Stock, only 2 left!

0

35

Homelite 32901153G

Cotter Pin

$

$

Not available

36

Homelite 34121154G

Adjustment Knob

$

$

Not available

Homelite 987000287

Operator's Manual

$

$

Not available
