UT-43123 - Homelite 16" Chainsaw, Electric, Revision 02 (2018-06) General Assembly (Part 2) Parts Diagram

16" Chainsaw, Electric, Revision 02

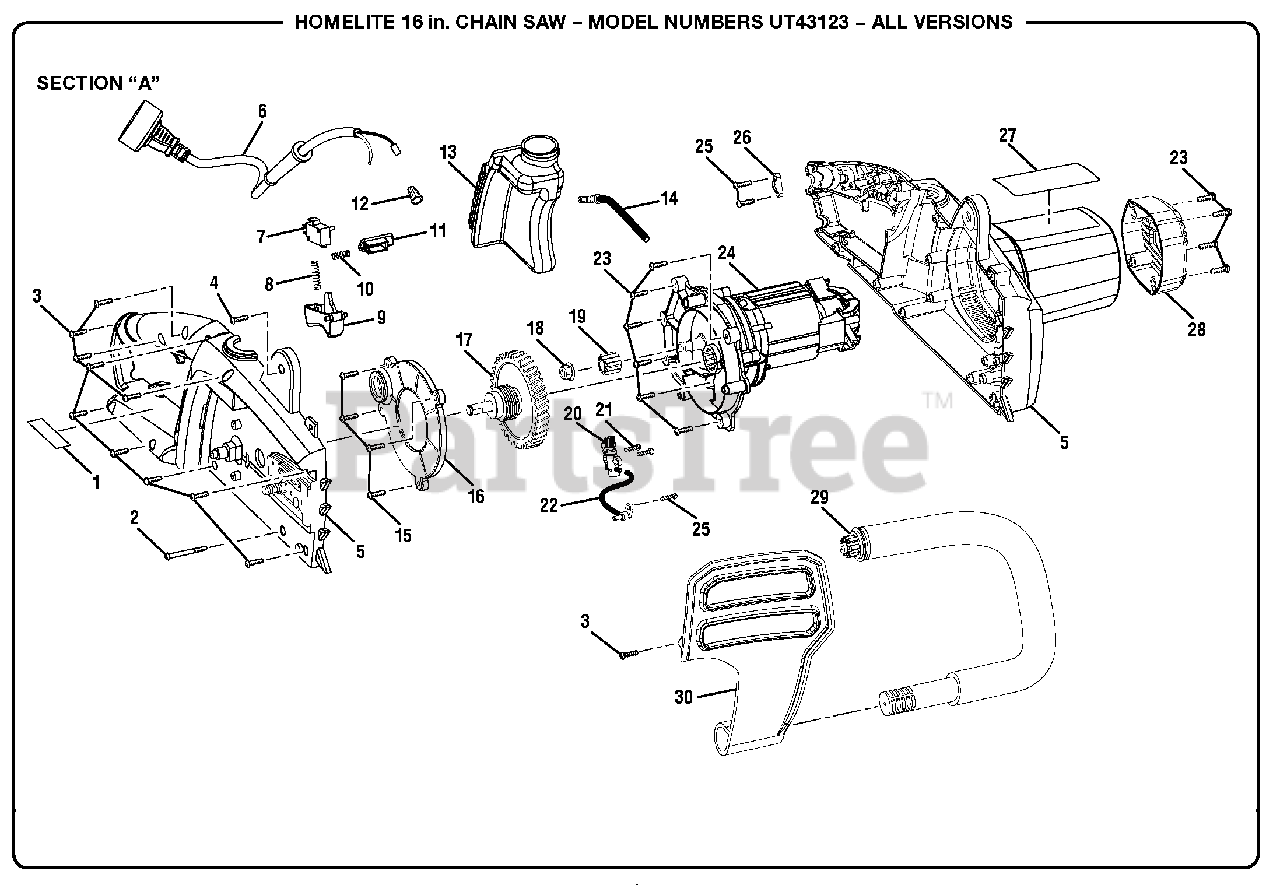

General Assembly (Part 2) Parts Diagram

  • Title

1

Homelite 9928001901

Warning Icon Label

$

$

Currently unavailable

2

Homelite 994112001

Screw (M5 x 35 mm)

$1.49

$

Usually ships in 3-7 days

0

3

Homelite 994111001

Screw (M4 x 16 mm)

$1.49

$

In Stock, Qty 8

0

4

Homelite 994139001

Screw (M4 x 20 mm)

$1.49

$

Usually ships in 3-7 days

0

5

Homelite 994171001

Housing Assembly

$30.99

$

In Stock, only 1 left!

0

6

Homelite 994170001

Power Cord

$5.49

$

Usually ships in 3-7 days

0

7

Homelite 993745001

Switch

$2.49

$

Usually ships in 3-7 days

0

8

Homelite 994074001

Compression Spring (Trigger)

$1.49

$

Usually ships in 3-7 days

0

9

Homelite 994073001

Switch Trigger

$1.49

$

Usually ships in 3-7 days

0

10

Homelite 993749001

Compression Spring (Lock-Off)

$1.49

$

Usually ships in 3-7 days

0

11

Homelite 994075001

Lock-Off Button

$1.49

$

Usually ships in 3-7 days

0

12

Homelite 993744001

Wire Nut

$

$

Not available

13

Homelite 994172001

Oil Reservoir Assembly

$3.49

$

Usually ships in 3-7 days

0

14

Homelite 994169001

Oil Outlet Tube

$1.49

$

Usually ships in 3-7 days

0

15

Homelite 994105001

Screw (M4 x 12 mm)

$1.49

$

In Stock, Qty 5

0

16

Homelite 994133001

Gear Cover

$1.49

$

Usually ships in 3-7 days

0

17

Homelite 994174001

Gear Assembly

$25.99

$

In Stock, only 3 left!

0

18

Homelite 994107001

Flange Nut (M8)

$1.49

$

Usually ships in 3-7 days

0

19

Homelite 994106001

Pinion

$2.99

$

Usually ships in 3-7 days

0

20

Homelite 994149001

Oil Pump

$3.99

$

Usually ships in 3-7 days

0

21

Homelite 994154001

Screw (M3 x 10 mm)

$

$

Not available

22

Homelite 994168001

Oil Inlet Tube

$1.49

$

Usually ships in 3-7 days

0

23

Homelite 994104001

Screw (M4 x 16 mm)

$1.49

$

Usually ships in 3-7 days

0

24

Homelite 994166001

Motor Assembly

$71.99

$

Usually ships in 3-7 days

0

25

Homelite 994072001

Screw (M4 x 10 mm)

$

$

Not available

26

Homelite 994071001

Cord Clamp

$

$

Not available

27

Homelite 941588047

Data Label

$1.49

$

Usually ships in 3-7 days

0

28

Homelite 994137001

Motor End Cap

$

$

Not available

29

Homelite 994140001

Handle

$6.99

$

Usually ships in 3-7 days

0

30

Homelite 994141001

Guard

$5.99

$

Usually ships in 3-7 days

0

Homelite 990000745

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
