UT-44171 - Homelite 7.2 Volt Hedge Trimmer General Assembly Parts Diagram

7.2 Volt Hedge Trimmer

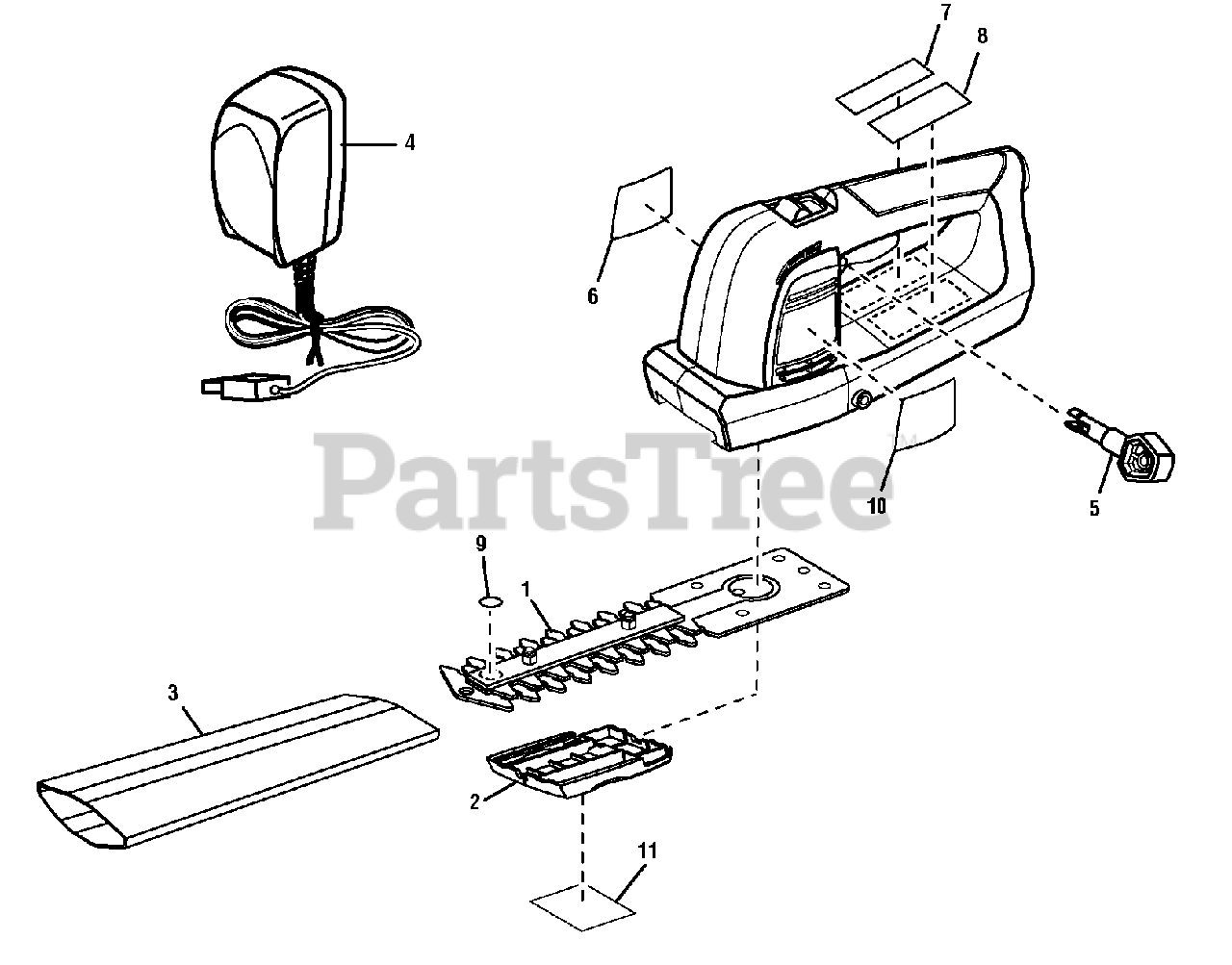

General Assembly Parts Diagram

  • Title

1

Homelite 31106251G

Shrubber Blade Assembly

$

$

Not available

2

Homelite 34106251G

Bottom Cover

$

$

Not available

3

Homelite 34109251G

Scabbard

$

$

Not available

4

Homelite 36901251G

Charger

$

$

Not available

5

Homelite 34112251G

Lock-out Pin

$

$

Not available

6

Homelite 099941003901

Data Label

$

$

Not available

7

Homelite 099941003902

No Hands Warning Label

$

$

Not available

8

Homelite 099941003903

Icon Strip

$

$

Not available

9

Homelite 099941003904

No Hands Label

$

$

Not available

10

Homelite 099941002905

Logo Label

$

$

Not available

11

Homelite 099941003905

Padlock/Lock Pin Warning Label

$

$

Not available

Homelite 987000828

Operator's Manual

Note: (Not Shown)

$

$

Not available
