UT-44180 - Homelite Extended Reach Hedge Trimmer Figure A Parts Diagram

Extended Reach Hedge Trimmer

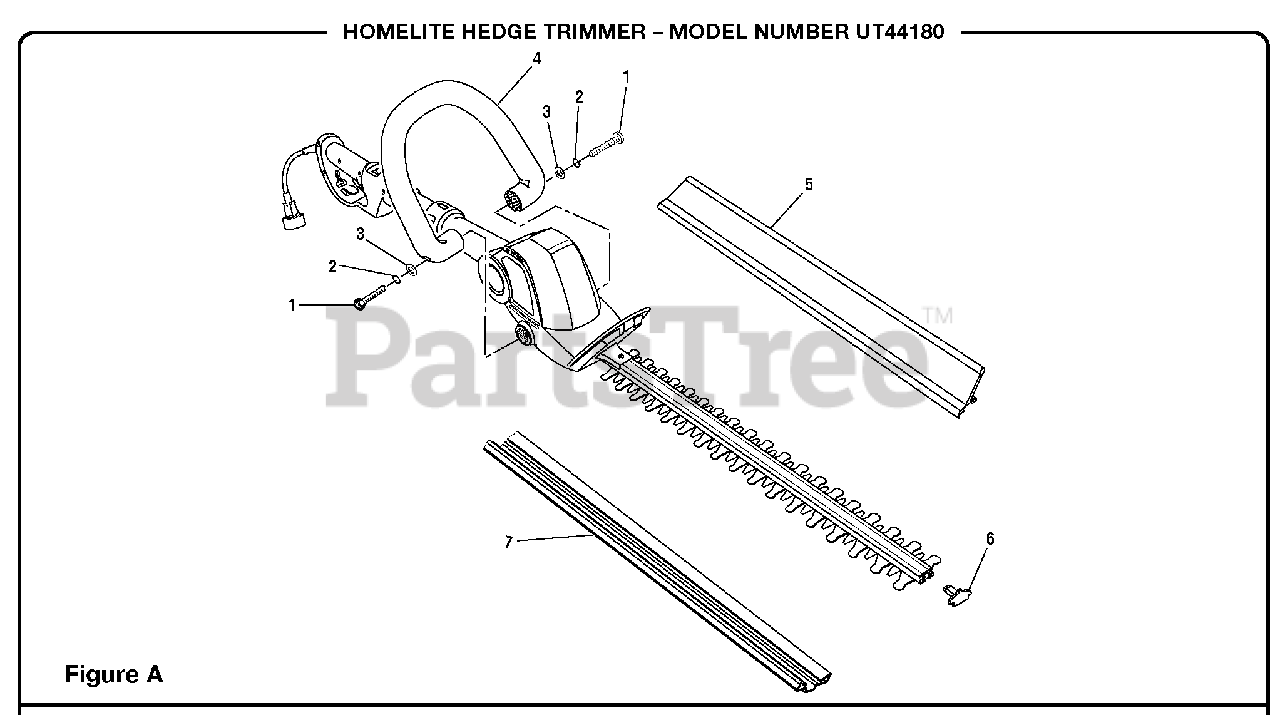

Figure A Parts Diagram

  • Title

1

Homelite 32201162G

Screw (M4 x 23)

$

$

Not available

2

Homelite 3290675G

Lock Washer

$

$

Not available

3

Homelite 3290186G

Washer

$

$

Not available

4

Homelite 31307445G

Front Handle

$

$

Not available

5

Homelite 31103445G

Debris Deflector

$

$

Not available

6

Homelite 34201162G

Deflector Retainer

$

$

Not available

7

Homelite 34111171G

Scabbard

$

$

Currently unavailable
