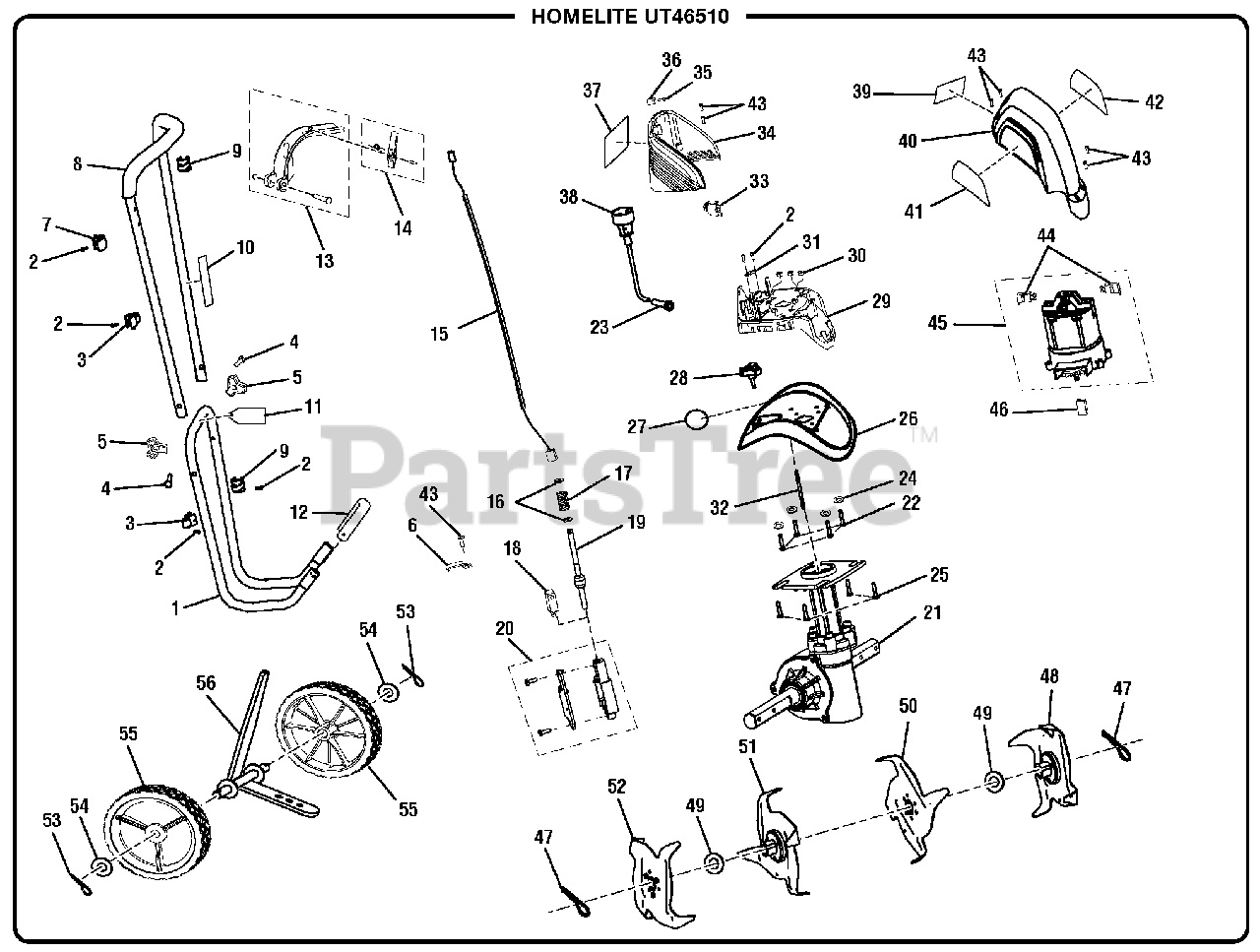

UT-46510 - Homelite Electric Cultivator General Assembly Parts Diagram

Electric Cultivator

General Assembly Parts Diagram

  • Title

1

Homelite 33202282G

Lower Handle

$

$

Not available

2

Homelite 3220107G

Screw (M4.2 x 14 mm)

$

$

Not available

3

Homelite 34103282G

Cable Retainer Ring

$

$

Not available

4

Homelite 3220436G

Handle Bolt

$

$

Not available

5

Homelite 3410835G

Handle Knob

$

$

Not available

6

Homelite 33207282G

Switch plate

$

$

Not available

7

Homelite 34102282G

Upper Cable Retainer Ring

$

$

Not available

8

Homelite 31115282G

Upper Handle Assembly

$

$

Not available

9

Homelite 3411135G

Cord Retainer Ring

$

$

Not available

10

Homelite 38105282G

Icon Warning Label

$

$

Not available

11

Homelite 38102282G

Hang Tag

$

$

Not available

12

Homelite 31105282G

Front Handle Assembly

$

$

Not available

13

Homelite 31112822G

Switch Trigger Assembly

$

$

Not available

14

Homelite 31113282G

Switch Lock-out Assembly

$

$

Not available

15

Homelite 31101282G

Switch Cable Assembly

$

$

Not available

16

Homelite 3230136G

Retaining Ring

$

$

Not available

17

Homelite 33903282G

Compression Spring

$

$

Not available

18

Homelite 36301282G

Switch

$

$

Not available

19

Homelite 31104282G

Switch Actuator

$

$

Not available

20

Homelite 31107282G

Switch Box Assembly

$

$

Not available

21

Homelite 31101281G

Gear Box Assembly

$

$

Not available

22

Homelite 32201282G

Bolt (M6 x 35 mm Hex Hd.)

$

$

Not available

23

Homelite 3420102G

Bend Relief

$

$

Not available

24

Homelite 3290699G

Washer (M6)

$

$

Not available

25

Homelite 32205271G

Bolt (M6 x 25 mm, Hex Hd.)

$

$

Currently unavailable

26

Homelite 31117282G

Tine Shield Assembly

$

$

Not available

27

Homelite 38103282G

Foot Warning Label

$

$

Not available

28

Homelite 34111282G

Adjustment Knob

$

$

Not available

29

Homelite 34105282G

Motor Base

$

$

Not available

30

Homelite 3220343G

Lock Nut (M6)

$

$

Not available

31

Homelite 3411435G

Wire Clip

$

$

Not available

32

Homelite 33206282G

Flex Shaft

$

$

Not available

33

Homelite 36901281G

Circuit Breaker

$

$

Not available

34

Homelite 31118282G

Lower Motor Cover

$

$

Not available

35

Homelite 32212100G

Screw (M4 x12 mm)

$

$

Not available

36

Homelite 33203282G

Switch Cable Clip

$

$

Not available

37

Homelite 38106282G

Data Label

$

$

Not available

38

Homelite 36401281G

Power Cord

$

$

Not available

39

Homelite 38104282G

Warning Label

$

$

Not available

40

Homelite 31116282G

Upper Motor Cover

$

$

Not available

41

Homelite 38107282G

Logo Label (right)

$

$

Not available

42

Homelite 38101282G

Logo Label (left)

$

$

Not available

43

Homelite 3220210G

Screw (M4.2 x 18 mm)

$

$

Not available

44

Homelite 36111281G

Brush Assembly

$

$

Not available

45

Homelite 31114282G

Motor Assembly

$

$

Not available

46

Homelite 33209281G

Flex Shaft Adaptor

$

$

Not available

47

Homelite 3320543G

Hitch Pin
(Superseded to 638001004)

$1.49

$

In Stock, Qty 5

0

48

Homelite 31105281G

Tine Assembly (D)
(Superseded to 308693004)

$23.99

$

Usually ships in 3-7 days

0

49

Homelite 34901282G

Washer (Felt)
(Superseded to 900755001)

$1.49

$

In Stock, Qty 14

0

50

Homelite 31104281G

Tine Assembly (C)
(Superseded to 308693003)

$23.99

$

Usually ships in 3-7 days

0

51

Homelite 31103281G

Tine Assembly (B)
(Superseded to 308693002)

$

$

Not available

52

Homelite 31102281G

Tine Assembly (A)
(Superseded to 308693001)

$23.99

$

Usually ships in 3-7 days

0

53

Homelite 3290237G

Hitch Pin

$

$

Not available

54

Homelite 3220898G

Washer

$

$

Not available

55

Homelite 31102282G

Wheel Assembly (6 in.)

$

$

Not available

56

Homelite 31103282G

Axle/Drag Stake Assembly

$

$

Not available

Homelite 987000517

Operator's Manual

Note: Not Shown

$

$

Not available
