UT-50500 - Homelite Mightylite Edger, 26cc Figure A Parts Diagram

Mightylite Edger, 26cc

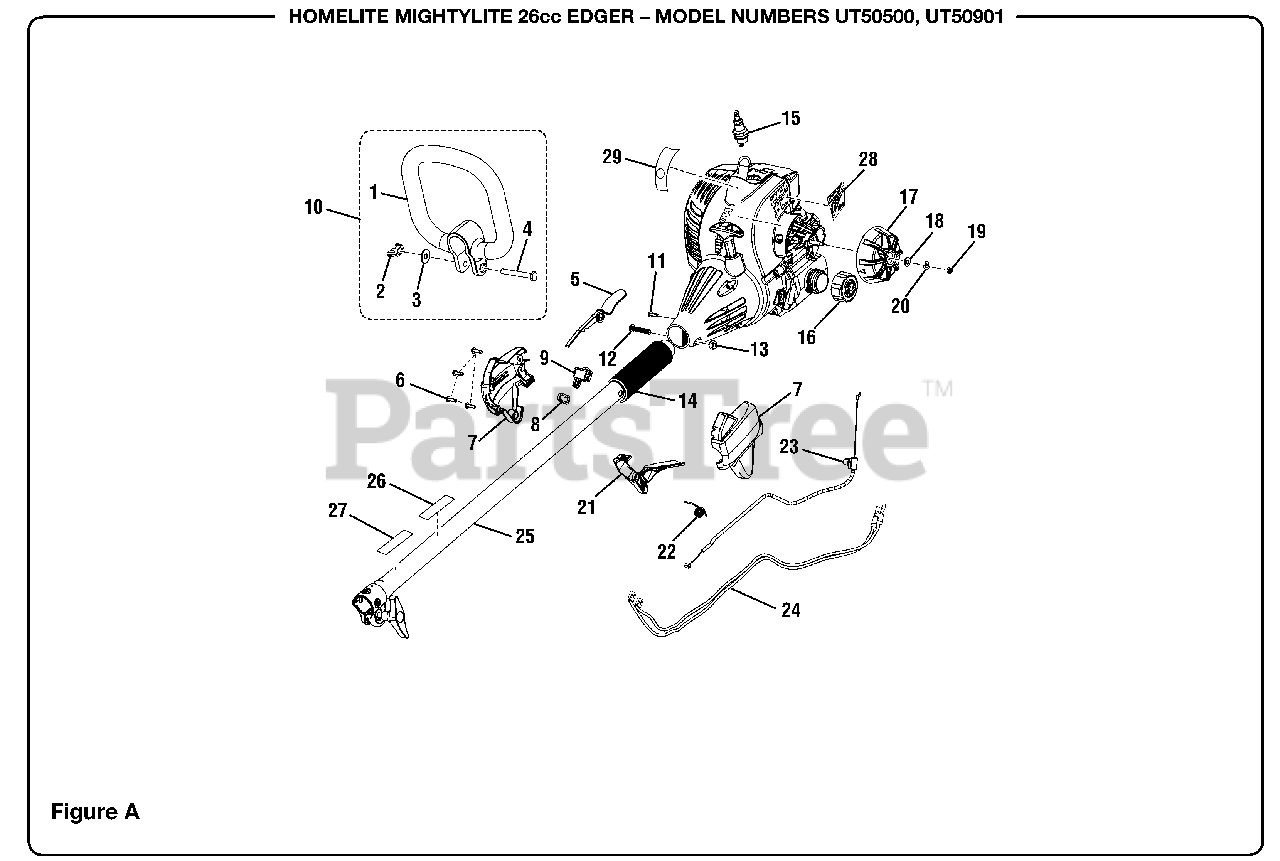

Figure A Parts Diagram

  • Title

1

Homelite 518674002

Handle

$7.99

$

Usually ships in 3-7 days

0

2

Homelite 678246001

Wing Nut (1/4-20)
(Superseded to PS02453)

Note: Purchase locally

$1.49

$

In Stock, only 3 left!

0

3

Homelite 678008001

Washer

$1.49

$

In Stock, only 1 left!

0

4

Homelite 660643008

Bolt (1/4-20 x 40 mm)

Note: Purchase locally

$1.49

$

Usually ships in 3-7 days

0

5

Homelite 518695001

Throttle Lock

$1.49

$

In Stock, only 3 left!

0

6

Homelite 660563002

Screw (M4 x 20 mm)

Note: Purchase locally

$1.49

$

In Stock, Qty 6

0

7

Homelite 308888001

Housing Assembly

$

$

Not available

8

Homelite 638431001

Shoulder Strap Hook

$1.49

$

In Stock, only 2 left!

0

9

Homelite 760700002

Switch
(Superseded to 760700001)

$2.99

$

In Stock, Qty 5

0

10

Homelite 308741002

Front Handle Assembly

$15.99

$

Usually ships in 3-7 days

0

11

Homelite 660634001

Screw (8-16 x 5/16 in.)

Note: Purchase locally

$1.49

$

In Stock, Qty 20+

0

12

Homelite 660697002

Bolt (M6 x 20 mm)

Note: Purchase locally

$1.49

$

In Stock, only 1 left!

0

13

Homelite 678029002

Hex Nut (M6)

Note: Purchase locally

$1.49

$

In Stock, Qty 9

0

14

Homelite 570450001

Rear Handle

$

$

Not available

15

Homelite 870174001

Spark Plug

Note: (Champion RCJ6Y); Purchase locally

$4.99

$

In Stock, Qty 20+

0

16

Homelite 308680001

Fuel Cap

$2.49

$

In Stock, only 1 left!

0

17

Homelite 518496001

Choke Dial Cover

$2.49

$

Usually ships in 3-7 days

0

18

Homelite 678434001

Washer

$

$

Not available

19

Homelite 678435001

Hex Nut (M4)

Note: Purchase locally

$

$

Not available

20

Homelite 678434002

Wavy Washer

$1.49

$

In Stock, only 2 left!

0

21

Homelite 518696001

Throttle Trigger

$

$

Not available

22

Homelite 690694002

Torsion Spring

$1.49

$

In Stock, only 4 left!

0

23

Homelite 308842001

Throttle Cable

$

$

Not available

24

Homelite 290735002

Lead

$

$

Not available

25

Homelite 308885001

Upper Boom Assembly

Note: Inc Key Nos 26-27

$31.99

$

Usually ships in 3-7 days

0

26

Homelite 940734009

Starting Label

$

$

Not available

27

Homelite 940230129

Warning Label
(Superseded to 984032001)

$1.49

$

Usually ships in 3-7 days

0

28

Homelite 940755002

Logo Label

$

$

Not available

29

Homelite 940647008

Choke Label

$1.49

$

Usually ships in 3-7 days

0

Homelite 987000048

Operator's Manual (960480001)

$

$

Not available
