UT-50500 - Homelite Mightylite Edger, 26cc Figure B Parts Diagram

Mightylite Edger, 26cc

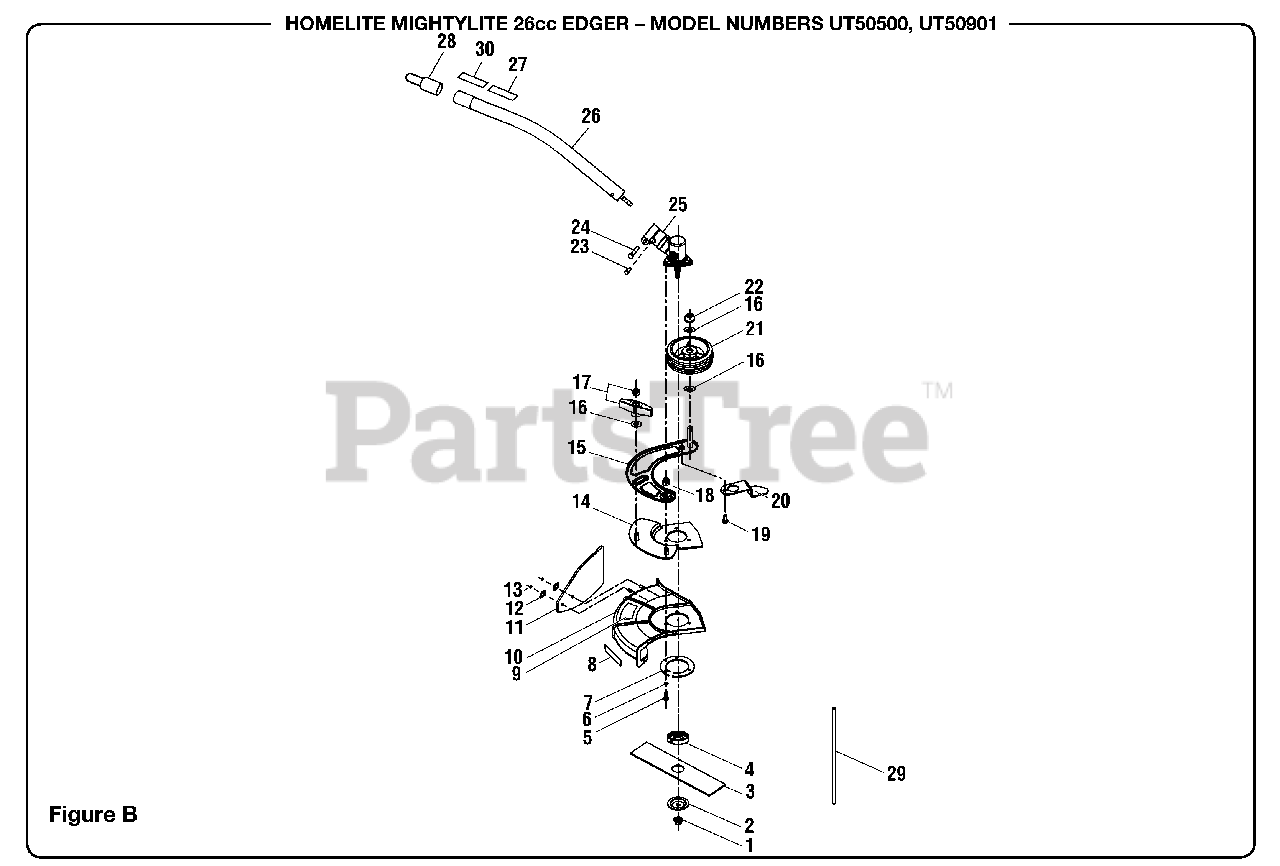

Figure B Parts Diagram

  • Title

1

Homelite 678018001

Blade Nut (M8)
(Superseded to 04277)

$

$

Not available

2

Homelite 638017001

Cupped Washer
(Superseded to 04409)

$2.49

$

Usually ships in 3-7 days

0

3

Homelite 638006005

Blade

$

$

Not available

4

Homelite 678011001

Flange Washer
(Superseded to 099078001005)

$6.49

$

Usually ships in 3-7 days

0

5

Homelite 660887001

Screw (10-24 x 5/8 in Hex Hd.)
(Superseded to 099078001007)

Note: Purchase locally

$1.49

$

Usually ships in 3-7 days

0

6

Homelite 678263001

Lock Washer (5 mm)

Note: Purchase locally

$1.49

$

Usually ships in 3-7 days

0

7

Homelite 678262001

Flange
(Superseded to 099078001009)

$

$

Not available

8

Homelite 940657007

Warning Decal
(Superseded to 099078001038)

$

$

Not available

9

Homelite 940230162

Logo Label

$

$

Not available

10

Homelite 308734001

Blade Guard
(Superseded to 099078001012)

Note: Includes Key Nos 8-9

$13.99

$

Usually ships in 3-7 days

0

11

Homelite 561382001

Debris Flap

$

$

Not available

12

Homelite 678260001

Washer (6 mm)
(Superseded to 099078001014)

Note: Purchase locally

$1.49

$

Usually ships in 3-7 days

0

13

Homelite 678017001

Hex Nut (10-24)
(Superseded to 099078001015)

Note: Purchase locally

$1.49

$

Usually ships in 3-7 days

0

14

Homelite 308485001

Plate with Stud
(Superseded to 099078001017)

$

$

Not available

15

Homelite 308484001

Wheel Arm
(Superseded to 099078001018)

$

$

Not available

16

Homelite 678258001

Washer (10 mm)
(Superseded to 099078001019)

Note: Purchase locally

$

$

Not available

17

Homelite 308730001

Adjusting Knob with Hex Nut
(Superseded to 099078001020)

$1.49

$

Usually ships in 3-7 days

0

18

Homelite 678259001

Hex Nut with Nylon Cap (5/16-18)
(Superseded to 099078001021)

Note: Purchase locally

$

$

Not available

19

Homelite 660737001

Hex Screw (10-24 x 1/2 in.)
(Superseded to 88049)

Note: Purchase locally

$

$

Not available

20

Homelite 638245001

Curb Guide
(Superseded to 099078001024)

$

$

Not available

21

Homelite 518377001

Guide Wheel
(Superseded to 099078001027)

$

$

Not available

22

Homelite 308483001

Push Nut (10 mm)
(Superseded to 099078001028)

Note: Purchase locally

$1.49

$

In Stock, Qty 5

0

23

Homelite 660641001

Hex Screw (10-24 x 5/8 in.)

Note: Purchase locally

$1.49

$

Usually ships in 3-7 days

0

24

Homelite 660642001

Cap Screw (1/4-20 x 1.25 in.)
(Superseded to 983381007)

Note: Purchase locally

$1.49

$

Usually ships in 3-7 days

0

25

Homelite 308210001

Gear Head Assembly
(Superseded to 308210008)

$

$

Not available

26

Homelite 000998356

Drive Shaft Assembly

Note: Includes Key No.27

$

$

Not available

27

Homelite 940654019

Warning Label

$

$

Not available

28

Homelite 518019001

Hanger Cap
(Superseded to 518019004)

$1.49

$

In Stock, only 2 left!

0

29

Homelite 678020001

Holding Pin
(Superseded to 099078001040)

$1.49

$

In Stock, only 4 left!

0

30

Homelite 940627024

Expand-It Label
(Superseded to 985165001)

$1.49

$

Usually ships in 3-7 days

0
