UT-60526 - Homelite Cultivator Figure B Parts Diagram

Cultivator

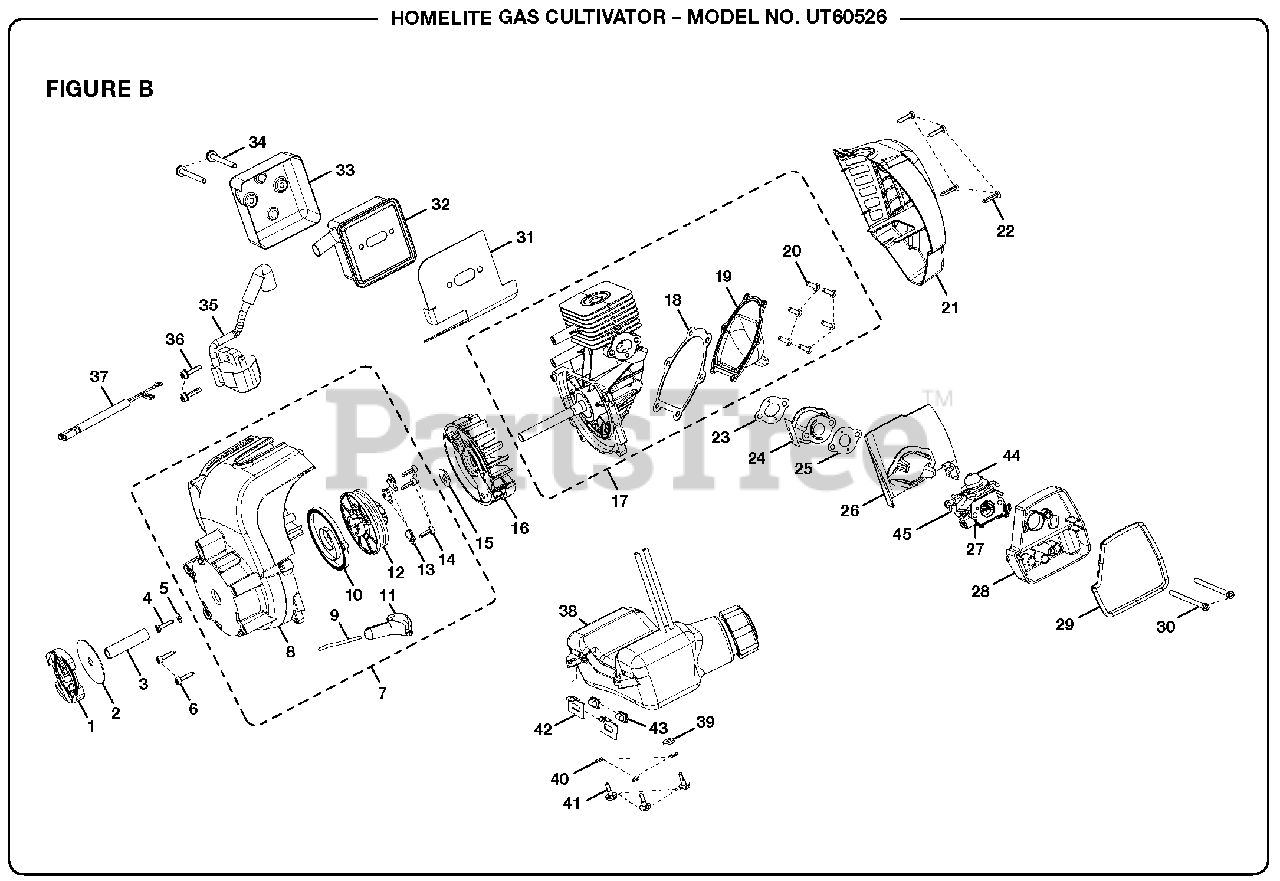

Figure B Parts Diagram

  • Title

1

Homelite 638566001

Clutch Assembly

$

$

Not available

2

Homelite 638090001

Washer

$1.49

$

Usually ships in 3-7 days

0

3

Homelite 638284002

Spacer Tube

$

$

Not available

4

Homelite 660970003

Screw (M4 x 20 mm)

$

$

Not available

5

Homelite 690969001

Washer

$1.49

$

In Stock, Qty 5

0

6

Homelite 660970001

Screw (M4 x 16 mm)

$1.49

$

In Stock, only 1 left!

0

7

Homelite 308889006

Lower Housing w/Starter Assembly Inc. Key Nos. 8-14)

$19.99

$

Usually ships in 3-7 days

0

8

Homelite 308981009

Lower Housing Assembly

$

$

Not available

9

Homelite 900849010

Starter Rope

$

$

Not available

10

Homelite 638033001

Spring & Container Assembly

$3.49

$

In Stock, only 3 left!

0

11

Homelite 511731001

Grip
(Superseded to PS06114)

$

$

Not available

12

Homelite 518501001

Starter Pulley

$1.99

$

In Stock, Qty 8

0

13

Homelite 638389001

Pulley Retainer

$1.49

$

In Stock, only 4 left!

0

14

Homelite 660967001

Screw (M4 x 14 mm)

$1.49

$

Usually ships in 3-7 days

0

15

Homelite 650017001

Washer
(Superseded to PS05268)

$1.49

$

In Stock, only 1 left!

0

16

Homelite 308674001

Flywheel Assembly

$15.99

$

Usually ships in 3-7 days

0

17

Homelite 309960008

Short Block Assembly

$

$

Not available

18

Homelite 901550001

Crankcase Cover Gasket
(Superseded to 901550003)

$1.49

$

In Stock, Qty 5

0

19

Homelite 638337001

Crankcase Cover
(Superseded to 638337005)

$3.99

$

Usually ships in 3-7 days

0

20

Homelite 660925003

Screw (M4 x 12 mm)

$1.49

$

Usually ships in 3-7 days

0

21

Homelite 518726004

Top Housing

$

$

Not available

22

Homelite 660466001

Screw (M4 x 18 mm)

$1.49

$

In Stock, only 2 left!

0

23

Homelite 901551001

Intake Gasket

$1.49

$

In Stock, Qty 18

0

24

Homelite 518497001

Heat Dam

$2.49

$

Usually ships in 3-7 days

0

25

Homelite 901552001

Carburetor Gasket

$1.49

$

In Stock, only 1 left!

0

26

Homelite 518690001

Baffle Plate

$1.49

$

Usually ships in 3-7 days

0

27

Homelite 308054022

Carburetor

$

$

Currently unavailable

28

Homelite 519792001

Air Box Base

$

$

Not available

29

Homelite 570367001

Air Box Seal

$

$

Not available

30

Homelite 660454007

Muffler Bolt

$1.49

$

In Stock, Qty 5

0

31

Homelite 901452004

Muffler Gasket

$1.49

$

Usually ships in 3-7 days

0

32

Homelite 308990017

Muffler Assembly

$

$

Not available

33

Homelite 638442002

Heat Shield

$

$

Not available

34

Homelite 660638003

Screw (10-24 x 2-1/8 in.)
(Superseded to PS03999)

$

$

Not available

35

Homelite 850108005

Ignition Module

$17.99

$

Usually ships in 3-7 days

0

36

Homelite 660968001

Screw (M4 x 19 mm)

$1.49

$

Usually ships in 3-7 days

0

37

Homelite 308863024

Lead Wire Assembly

$2.99

$

Usually ships in 3-7 days

0

38

Homelite 310264001

Fuel Tank with Cap Assembly
(Superseded to 310264002)

$

$

Not available

39

Homelite 638576002

Flat Washer

$

$

Not available

40

Homelite 678284001

Spring Washer
(Superseded to 099078001031)

$

$

Not available

41

Homelite 660970008

Screw (M4 x 19 mm, Shoulder)

$

$

Not available

42

Homelite 638588001

Bracket

$

$

Not available

43

Homelite 570256001

Bumper
(Superseded to 98792)

$1.49

$

In Stock, only 3 left!

0

44

Homelite 561635001

Primer Bulb

$4.99

$

In Stock, Qty 8

0

45

Homelite 518824001

Choke Lever

$1.49

$

In Stock, only 3 left!

0
