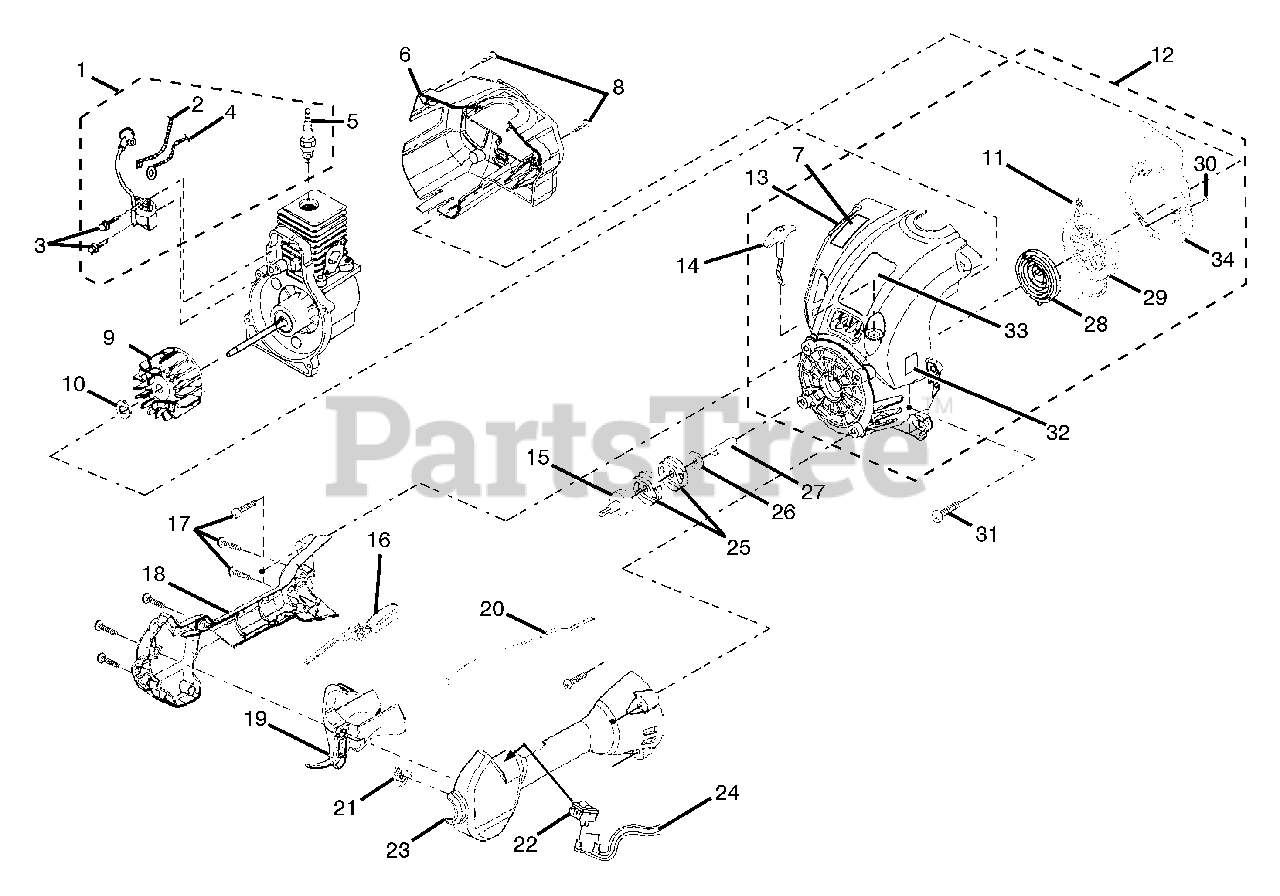

UT-70026 - Homelite Curved Shaft Trimmer Engine & Housing Parts Diagram

Curved Shaft Trimmer

Engine & Housing Parts Diagram

  • Title

1

Homelite 984520001

IGNITION KIT

$

$

Not available

2

Homelite A06963

ELECTRICAL LEAD

$2.49

$

Usually ships in 3-7 days

0

3

Homelite 82540

SCREW

$1.49

$

Usually ships in 3-7 days

0

4

Homelite A06964

ELECTRICAL LEAD

$

$

Not available

5

Homelite PS02227

SPARK PLUG
(Superseded to 870174001)

$4.99

$

In Stock, Qty 20+

0

6

Homelite PS01127

REAR COVER

$

$

Not available

7

Homelite 07184

DECAL, HOMELITE
(Superseded to 940299603)

$

$

Not available

8

Homelite 82537

SCREW (10-14 x 7/8")

$1.99

$

Usually ships in 3-7 days

0

9

Homelite 984521001

ROTOR AND PAWL ASSEMBLY
(Superseded to 300952002)

$13.99

$

Usually ships in 3-7 days

0

10

Homelite 95479A

WASHER

$

$

Not available

11

Homelite 9789902

STARTER ROPE (42 in)
(Superseded to 900849002)

$1.49

$

In Stock, only 4 left!

0

12

Homelite 984609001

STARTER ASSEMBLY

$

$

Not available

13

Homelite PA01165

STARTER HOUSING AND EYELET

$

$

Not available

14

Homelite 5946702

STARTER GRIP
(Superseded to PS01200)

$1.49

$

In Stock, only 3 left!

0

15

Homelite PA01613

DRUM AND CONNECTOR
(Superseded to 308177001)

$

$

Not available

16

Homelite PS01128

INTERLOCK TRIGGER

$6.99

$

Usually ships in 3-7 days

0

17

Homelite 82589

SCREW

$1.99

$

Usually ships in 3-7 days

0

18

Homelite PS01124

CONTROL HANDLE / RH

$

$

Not available

19

Homelite PS01814

TRIGGER
(Superseded to UP03207A)

$3.49

$

Usually ships in 3-7 days

0

20

Homelite PS01177

THROTTLE CABLE

$1.49

$

In Stock, only 3 left!

0

21

Homelite PS01718

SPRING

$1.49

$

In Stock, only 2 left!

0

22

Homelite PS02764

SWITCH

$

$

Not available

23

Homelite PS01125

CONTROL HANDLE / LH

$

$

Not available

24

Homelite PA00387

ELECTRICAL LEADS

$4.49

$

Usually ships in 3-7 days

0

25

Homelite 00242

CLUTCH DISK ( ST185 & ST385 )

$

$

Not available

26

Homelite 98929A

WASHER
(Superseded to 638090001)

$1.49

$

In Stock, Qty 5

0

27

Homelite PS04300

SPACER
(Superseded to UP04118)

$

$

Not available

28

Homelite A98773A

SPRING & CONTAINER
(Superseded to 638033001)

$3.49

$

In Stock, only 1 left!

0

29

Homelite PS01122

STARTER PULLEY

$1.99

$

In Stock, only 3 left!

0

30

Homelite 82543

SCREW

$

$

Not available

31

Homelite 82538

SCREW

$1.49

$

Usually ships in 3-7 days

0

32

Homelite PS06141

DECAL, NOISE

$1.49

$

Usually ships in 3-7 days

0

33

Homelite PS02544

DECAL, MODEL

$

$

Not available

34

Homelite PS01123

AIR BAFFLE PLATE

$

$

Not available

35

Homelite 03646

TORX WRENCH (NOT SHOWN)

$

$
