UT-80522 G (090079228) - Homelite Pressure Washer Figure A Parts Diagram

Pressure Washer

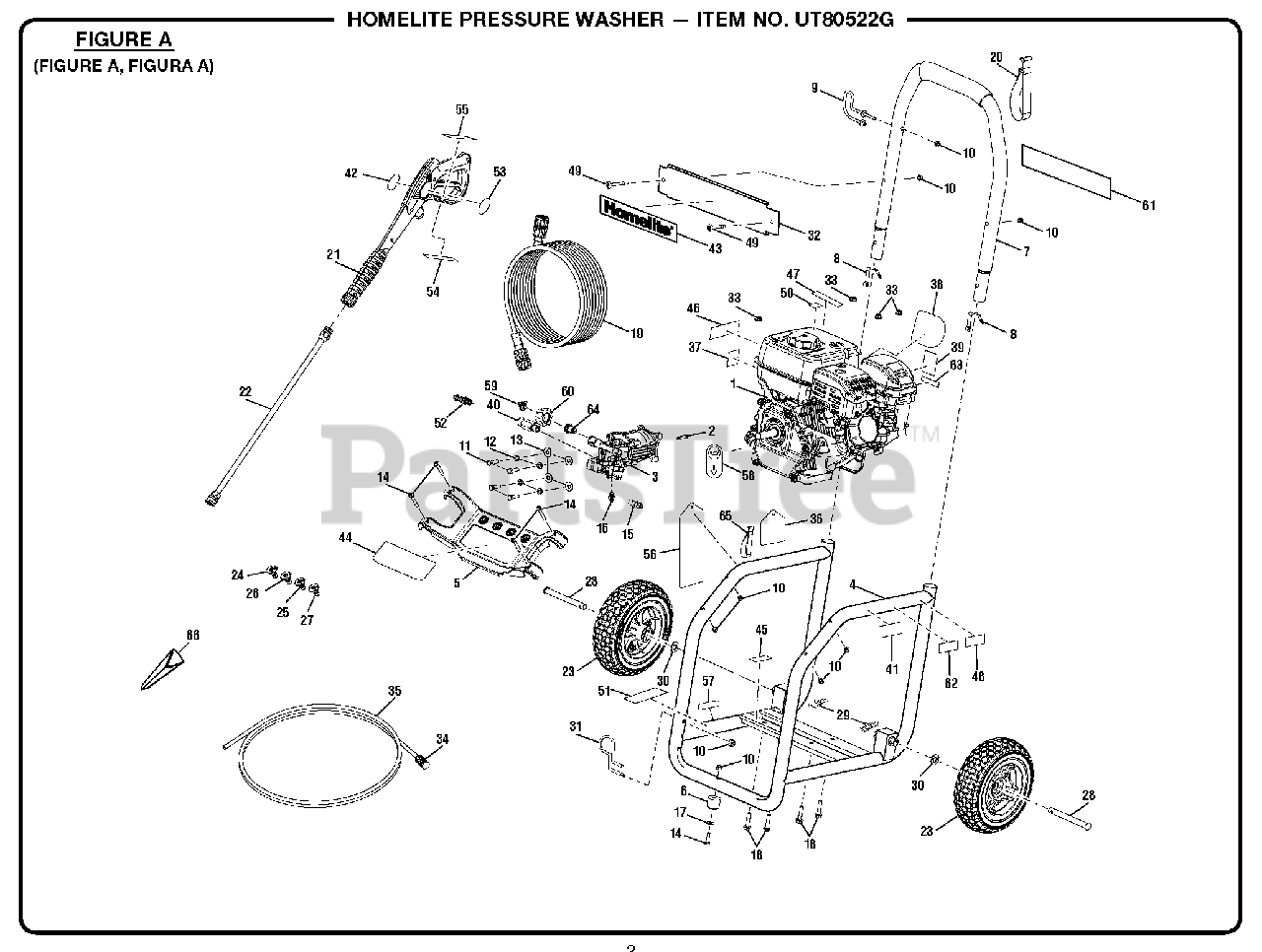

Figure A Parts Diagram

  • Title

1

Engine (Rato 180cc Horizontal Shaft, EPA III)

Note: Homelite Consumer Products, Inc. will not provide complete engines as replacement parts. Engines are covered through the engine manufacturer's warranty. Consult the accompanying engine manual or contact our service department for assistance.

$

$

Not available

2

Homelite 678041007

Output Shaft Key

$1.49

$

Usually ships in 3-7 days

0

3

Homelite 308653057

Pump

Note: (Inc. Keys Nos. 16, 40, 52, 59-60 & 64)

$253.99

$

Usually ships in 3-7 days

0

4

Homelite 308582044

Main Frame

$

$

Not available

5

Homelite 518790009

Nozzle Holder

$5.49

$

Usually ships in 3-7 days

0

6

Homelite 570554002

Rubber Foot

$1.49

$

In Stock, Qty 5

0

7

Homelite 308638039

Handle Assembly

Note: (Inc. Key No. 8, 10, 32 & 49)

$

$

Not available

8

Homelite 308421005

Lock Button w/Spring Clip

$1.49

$

Usually ships in 3-7 days

0

9

Homelite 308316005

Wand Holder (Upper)

$3.99

$

Usually ships in 3-7 days

0

10

Homelite 678016006

Lock Nut (1/4-20)
(Superseded to 678016002)

$1.49

$

In Stock, only 2 left!

0

11

Homelite 661557011

Bolt (5/16-24 x 27 mm, Hex Hd.)

$1.49

$

Usually ships in 3-7 days

0

12

Homelite 638678001

Lock Washer (5/16 in.)

$1.99

$

Usually ships in 3-7 days

0

13

Homelite 638675005

Washer (5/16 in.)

$1.49

$

Usually ships in 3-7 days

0

14

Homelite 661503013

Screw (1/4-20 x 2.0 in.)

$

$

Not available

15

Homelite 678169004

Thermal Release Valve

$

$

Not available

16

Homelite 308452002

Detergent Suction Kit

$3.49

$

Usually ships in 3-7 days

0

17

Homelite 638128004

Washer (1/4 in.)

$1.49

$

In Stock, Qty 5

0

18

Homelite 661505005

Bolt (M8 x 36 mm, Hex Flange Hd.)

$1.49

$

Usually ships in 3-7 days

0

19

Homelite 308835006

Hose

$33.99

$

Usually ships in 3-7 days

0

20

Homelite 310801001

Hook and Loop Strap

$3.49

$

In Stock, only 1 left!

0

21

Homelite 308760019

Trigger Handle

Note: (Inc. Keys Nos. 53 & 55)

$27.99

$

Usually ships in 3-7 days

0

22

Homelite 308506006

Extension Wand
(Superseded to 308506014)

$

$

Not available

23

Homelite 308451018

Wheel Assembly (10 in. x 3 in.)

$

$

Not available

24

Homelite 308697029

Nozzle, 0 deg

$5.49

$

Usually ships in 3-7 days

0

25

Homelite 308700030

Nozzle 40 deg

$10.99

$

Usually ships in 3-7 days

0

26

Homelite 308699029

Nozzle 25 deg

$5.49

$

Usually ships in 3-7 days

0

27

Homelite 308706011

Soap Nozzle

$12.99

$

In Stock, only 2 left!

0

28

Homelite 620599019

Axle

$2.99

$

Usually ships in 3-7 days

0

29

Homelite 678899006

Hitch Pin
(Superseded to 678899001)

$

$

Not available

30

Homelite 638275002

Washer (1/2 in.)

$1.49

$

Usually ships in 3-7 days

0

31

Homelite 678243012

Wand Holder (Lower)

$3.99

$

Usually ships in 3-7 days

0

32

Homelite 678973001

Front Panel

$

$

Not available

33

Homelite 678774001

Lock Nut (M8 x 1.25)

$1.49

$

Usually ships in 3-7 days

0

34

Homelite 308103015

Filter

$1.49

$

In Stock, only 1 left!

0

35

Homelite 561399003

Chemical Siphon Tube

$1.99

$

Usually ships in 3-7 days

0

36

Homelite 961039005

Nozzle Instructions Hangtag

$

$

Not available

37

Homelite 940698017

Engine Label (On-Off)

$

$

Not available

38

Homelite 940633005

Recoil Label

$1.49

$

Usually ships in 3-7 days

0

39

Homelite 940647080

Choke Label

$

$

Not available

40

Homelite 308862003

Outlet Tube

$5.49

$

Usually ships in 3-7 days

0

41

Homelite 940680027

Hot Surface Label

$1.49

$

Usually ships in 3-7 days

0

42

Homelite 940786016

Trigger Handle Logo Label

$1.49

$

Usually ships in 3-7 days

0

43

Homelite 940748005

Homelite Label

$1.49

$

Usually ships in 3-7 days

0

44

Homelite 940779071

Performance Label

$1.49

$

Usually ships in 3-7 days

0

45

Homelite 940871002

Add Oil Label

$1.49

$

Usually ships in 3-7 days

0

46

Homelite 940894004

Danger Label

$1.49

$

Usually ships in 3-7 days

0

47

Homelite 940872003

E85 Label

$1.49

$

In Stock, only 2 left!

0

48

Homelite 940324014

Homelite Inquiries Label

$

$

Not available

49

Homelite 661503014

Bolt (1/4-20 x 43 mm, Torx T-30)

$

$

Not available

50

Homelite 940899002

No Oil to Gas Label

$

$

Not available

51

Homelite 940947003

Combustion Label

$

$

Not available

52

Homelite 310924003

Unloader Valve Assembly

$17.99

$

In Stock, only 1 left!

0

53

Homelite 940654084

Trigger Handle Warning Label (Eng)

$1.99

$

Usually ships in 3-7 days

0

54

Homelite 940654228

Warning Label (Fr/Sp)

$1.99

$

Usually ships in 3-7 days

0

55

Homelite 940786020

Trigger Handle Label
(Superseded to 940786006)

$

$

Not available

56

Homelite 940473009

Danger Hangtag

$

$

Not available

57

Homelite 940517007

Lubricant Label

$1.49

$

Usually ships in 3-7 days

0

58

Homelite 940889002

Dipstick Hangtag

$1.49

$

Usually ships in 3-7 days

0

59

Homelite 308662001

Filter Screen

$

$

Not available

60

Homelite 310993003

Collar

$3.49

$

In Stock, only 1 left!

0

61

Homelite 940617108

Quick Start Label

$2.49

$

Usually ships in 3-7 days

0

62

Homelite 940803018

EMC Label

$1.49

$

Usually ships in 3-7 days

0

63

Homelite 941494010

Fuel On/Off Label

$

$

Not available

64

Homelite 642058001

Spindle

$2.49

$

Usually ships in 3-7 days

0

65

Homelite 310801003

Detergent Suction Hose Velcro Strap

$

$

Not available

66

Homelite 519314001

Funnel

$1.49

$

Usually ships in 3-7 days

0

Homelite 990000610

Operator's Manual (960908007)

Note: Not Shown

$

$

Not available

Homelite 990000612

Quick Reference Guide (960554008)

Note: Not Shown

$

$

Not available
