UT-80522 G - Homelite Pressure Washer Figure A Parts Diagram

Pressure Washer

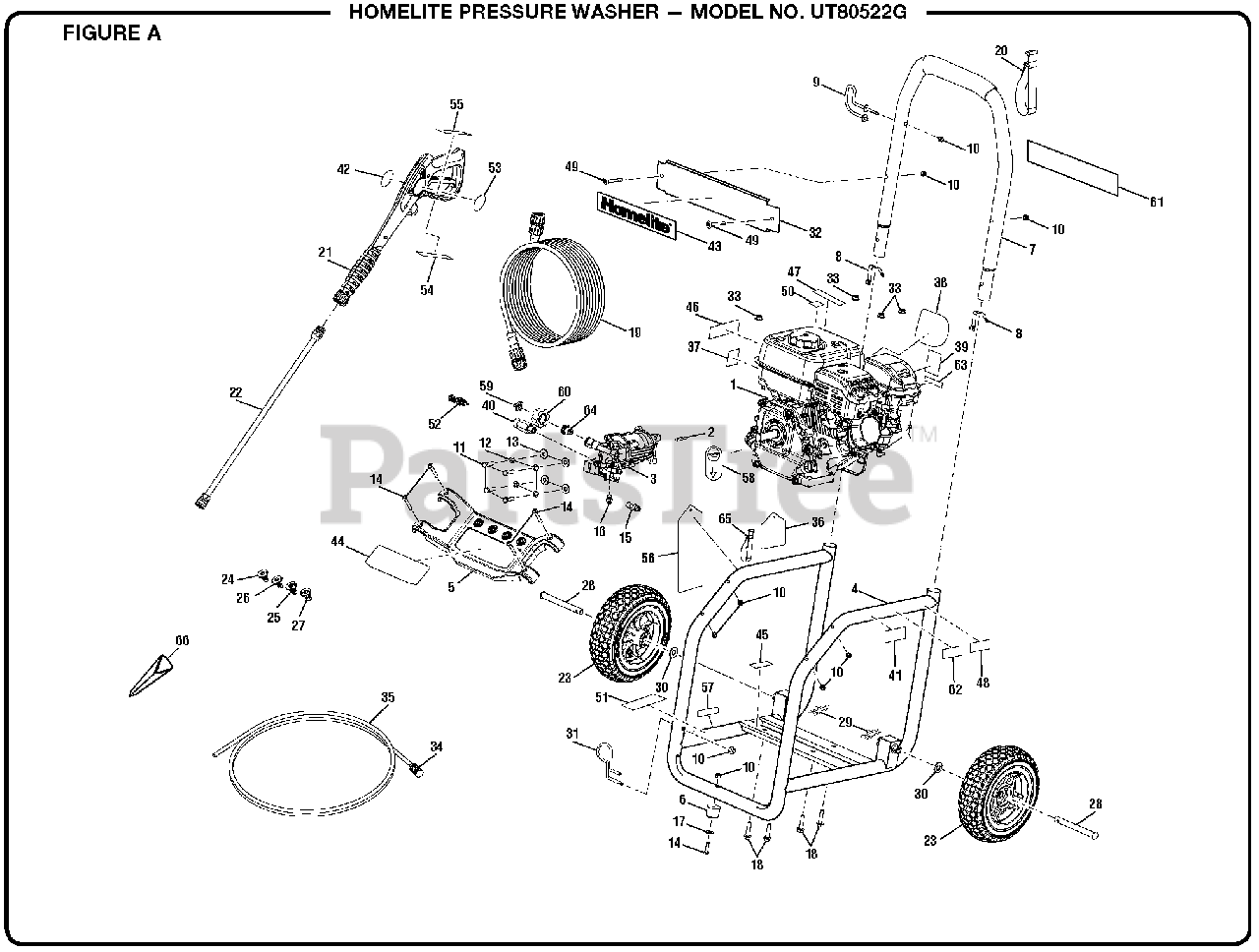

Figure A Parts Diagram

  • Title

1

Engine (Rato 180cc Horizontal Shaft, EPA III)

$

$

Not available

2

Homelite 678041007

Output Shaft Key

$1.49

$

Usually ships in 3-7 days

0

3

Homelite 308653057

Pump

Note: (Inc. Keys Nos. 16, 40, 52, 59-60 & 64)

$253.99

$

Usually ships in 3-7 days

0

4

Homelite 308582044

Main Frame

$

$

Not available

5

Homelite 518790009

Nozzle Holder

$5.49

$

Usually ships in 3-7 days

0

6

Homelite 570554002

Rubber Foot

$1.49

$

In Stock, Qty 5

0

7

Homelite 308638039

Handle Assembly

Note: (Inc. Key No. 8, 10, 32 & 49)

$

$

Not available

8

Homelite 308421005

Lock Button w/Spring Clip

$1.49

$

Usually ships in 3-7 days

0

9

Homelite 308316005

Wand Holder (Upper)

$3.99

$

Usually ships in 3-7 days

0

10

Homelite 678016006

Lock Nut (1/4-20)
(Superseded to 678016002)

$1.49

$

In Stock, only 2 left!

0

11

Homelite 661557011

Bolt (5/16-24 x 27 mm, Hex Hd.)

$1.49

$

Usually ships in 3-7 days

0

12

Homelite 638678001

Lock Washer (5/16 in.)

$1.99

$

Usually ships in 3-7 days

0

13

Homelite 638675005

Washer (5/16 in.)

$1.49

$

Usually ships in 3-7 days

0

14

Homelite 661503013

Screw (1/4-20 x 2.0 in.)

$

$

Not available

15

Homelite 678169004

Thermal Release Valve

$

$

Not available

16

Homelite 308452002

Detergent Suction Kit

$3.49

$

Usually ships in 3-7 days

0

17

Homelite 638128004

Washer (1/4 in.)

$1.49

$

In Stock, Qty 5

0

18

Homelite 661505005

Bolt (M8 x 36 mm, Hex Flange Hd.)

$1.49

$

Usually ships in 3-7 days

0

19

Homelite 308835006

Hose

$33.99

$

Usually ships in 3-7 days

0

20

Homelite 310801001

Hook and Loop Strap

$3.49

$

In Stock, only 1 left!

0

21

Homelite 308760019

Trigger Handle

Note: (Inc. Keys Nos. 53 & 55)

$27.99

$

Usually ships in 3-7 days

0

22

Homelite 308506006

Extension Wand
(Superseded to 308506014)

$

$

Not available

23

Homelite 308451018

Wheel Assembly (10 in. x 3 in.)

$

$

Not available

24

Homelite 308697029

Nozzle, 0deg

$5.49

$

Usually ships in 3-7 days

0

25

Homelite 308700030

Nozzle 40deg

$10.99

$

Usually ships in 3-7 days

0

26

Homelite 308699029

Nozzle 25deg

$5.49

$

Usually ships in 3-7 days

0

27

Homelite 308706011

Soap Nozzle

$12.99

$

In Stock, only 2 left!

0

28

Homelite 620599019

Axle

$2.99

$

Usually ships in 3-7 days

0

29

Homelite 678899006

Hitch Pin
(Superseded to 678899001)

$

$

Not available

30

Homelite 638275002

Washer (1/2 in.)

$1.49

$

Usually ships in 3-7 days

0

31

Homelite 678243012

Wand Holder (Lower)

$3.99

$

Usually ships in 3-7 days

0

32

Homelite 678973001

Front Panel

$

$

Not available

33

Homelite 678774001

Lock Nut (M8 x 1.25)

$1.49

$

Usually ships in 3-7 days

0

34

Homelite 308103015

Filter

$1.49

$

In Stock, only 1 left!

0

35

Homelite 561399003

Chemical Siphon Tube

$1.99

$

Usually ships in 3-7 days

0

36

Homelite 961039005

Nozzle Instructions Hangtag

$

$

Not available

37

Homelite 940698017

Engine Label (On-Off)

$

$

Not available

38

Homelite 940633005

Recoil Label

$1.49

$

Usually ships in 3-7 days

0

39

Homelite 940647080

Choke Label

$

$

Not available

40

Homelite 308862003

Outlet Tube

$5.49

$

Usually ships in 3-7 days

0

41

Homelite 940680027

Hot Surface Label

$1.49

$

Usually ships in 3-7 days

0

42

Homelite 940786016

Trigger Handle Logo Label

$1.49

$

Usually ships in 3-7 days

0

43

Homelite 940748005

Homelite Label

$1.49

$

Usually ships in 3-7 days

0

44

Homelite 940779071

Performance Label

$1.49

$

Usually ships in 3-7 days

0

45

Homelite 940871002

Add Oil Label

$1.49

$

Usually ships in 3-7 days

0

46

Homelite 940894004

Danger Label

$1.49

$

Usually ships in 3-7 days

0

47

Homelite 940872003

E85 Label

$1.49

$

In Stock, only 2 left!

0

48

Homelite 940324014

Homelite Inquiries Label

$

$

Not available

49

Homelite 661503014

Bolt (1/4-20 x 43 mm, Torx T-30)

$

$

Not available

50

Homelite 940899002

No Oil to Gas Label

$

$

Not available

51

Homelite 940947003

Combustion Label

$

$

Not available

52

Homelite 310924003

Unloader Assembly

$17.99

$

In Stock, only 1 left!

0

53

Homelite 940654084

Trigger Handle Warning Label (Eng)

$1.99

$

Usually ships in 3-7 days

0

54

Homelite 940654228

Warning Label (Fr/Sp)

$1.99

$

Usually ships in 3-7 days

0

55

Homelite 940786020

Trigger Handle Label
(Superseded to 940786006)

$

$

Not available

56

Homelite 940473009

Danger Hangtag

$

$

Not available

57

Homelite 940517007

Lubricant Label

$1.49

$

Usually ships in 3-7 days

0

58

Homelite 940889002

Dipstick Hangtag

$1.49

$

Usually ships in 3-7 days

0

59

Homelite 308662001

Filter Screen

$

$

Not available

60

Homelite 310993003

Collar

$3.49

$

In Stock, only 1 left!

0

61

Homelite 940617108

Quick Start Label

$2.49

$

Usually ships in 3-7 days

0

62

Homelite 940803018

EMC Label

$1.49

$

Usually ships in 3-7 days

0

63

Homelite 941494010

Fuel On/Off Label

$

$

Not available

64

Homelite 642058001

Spindle

$2.49

$

Usually ships in 3-7 days

0

65

Homelite 310801003

Detergent Suction Hose Velcro Strap

$

$

Not available

66

Homelite 519314001

Funnel

$1.49

$

Usually ships in 3-7 days

0

Homelite 990000610

Operator's Manual (960908007)

Note: Not Shown

$

$

Not available

Homelite 990000612

Quick Reference Guide 960554008)

Note: Not Shown

$

$

Not available
