UT-80522 - Homelite Pressure Washer Figure B Parts Diagram

Pressure Washer

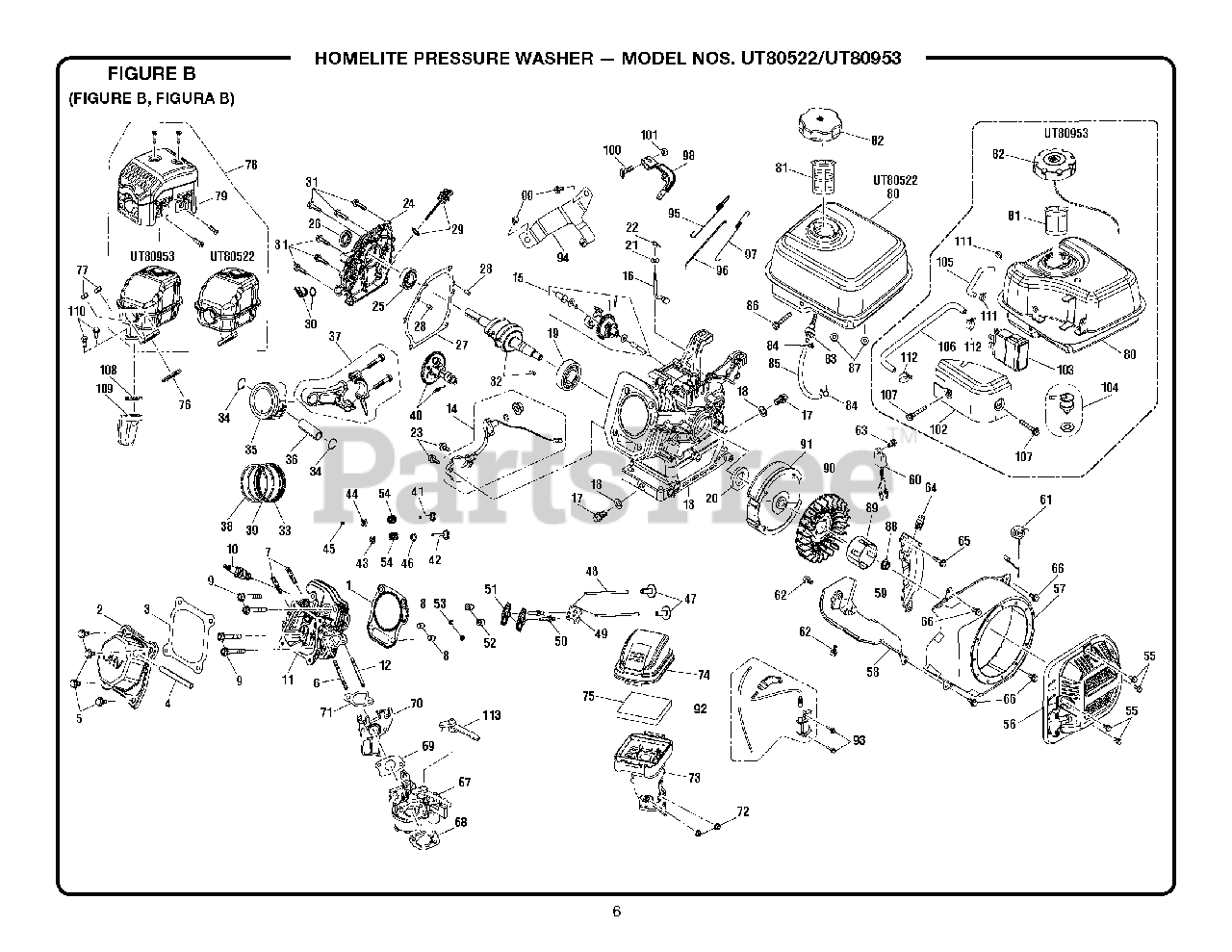

Figure B Parts Diagram

  • Title

1

Homelite 099980425001

Cylinder Head Gasket

$8.49

$

Usually ships in 3-7 days

0

2

Homelite 099980425002

Cylinder Head Cover Assembly

$

$

Not available

3

Homelite 099980425003

Cylinder Head Cover Gasket

$3.49

$

In Stock, only 2 left!

0

4

Homelite 099980425004

Breather Tube

$3.49

$

In Stock, only 1 left!

0

5

Homelite 099980425005

Bolt

$3.49

$

In Stock, only 3 left!

0

6

Homelite 099980425006

Stud

$2.49

$

In Stock, only 1 left!

0

7

Homelite 099980425007

Stud

$2.49

$

Usually ships in 3-7 days

0

8

Homelite 099980425008

Pin

$2.49

$

Usually ships in 3-7 days

0

9

Homelite 099980425009

Cylinder Head Bolt

$

$

Not available

10

Homelite 099980425010

Spark Plug (Champion RC12YC)

$12.99

$

Usually ships in 3-7 days

0

11

Homelite 099980425011

Cylinder Head Assembly

Note: (Inc. Key No. 7)

$85.99

$

Usually ships in 3-7 days

0

12

Homelite 099980425012

Stud

$2.49

$

Usually ships in 3-7 days

0

13

Homelite 099980425013

Crankcase Assembly

$

$

Not available

14

Homelite 099980425014

Engine Oil Sensor

$11.99

$

Usually ships in 3-7 days

0

15

Homelite 099980425015

Governor Gear Assembly

$

$

Not available

16

Homelite 099980425016

Governor Arm

$

$

Not available

17

Homelite 099980425017

Drain Plug Bolt

$

$

Not available

18

Homelite 099980425018

Washer

$

$

Not available

19

Homelite 099980425019

Bearing

$

$

Not available

20

Homelite 099980425020

Oil Seal

$3.49

$

Usually ships in 3-7 days

0

21

Homelite 099980425021

Governor Gear Washer

$

$

Not available

22

Homelite 099980425022

Pin

$

$

Not available

23

Homelite 099980425023

Bolt

$

$

Not available

24

Homelite 099980425024

Crankcase Cover Assembly

$44.99

$

Usually ships in 3-7 days

0

25

Homelite 099980425025

Bearing

$11.99

$

Usually ships in 3-7 days

0

26

Homelite 099980425026

Oil Seal

$3.49

$

In Stock, only 1 left!

0

27

Homelite 099980425027

Crankcase Gasket

$

$

Not available

28

Homelite 099980425028

Pin

$

$

Not available

29

Homelite 099980425029

Oil Dipstick Assembly

$2.99

$

Usually ships in 3-7 days

0

30

Homelite 099980425030

Engine Oil Plug Assembly

$2.99

$

Usually ships in 3-7 days

0

31

Homelite 099980425031

Bolt

$

$

Not available

32

Homelite 099980425032

Crankshaft Assembly

$85.99

$

In Stock, only 1 left!

0

33

Homelite 099980425033

Oil Ring Set

$4.99

$

Usually ships in 3-7 days

0

34

Homelite 099980425034

Piston Pin Clip

$2.49

$

Usually ships in 3-7 days

0

35

Homelite 099980425035

Piston Assembly

$18.99

$

Usually ships in 3-7 days

0

36

Homelite 099980425036

Piston Pin

$3.49

$

Usually ships in 3-7 days

0

37

Homelite 099980425037

Connecting Rod

$18.99

$

Usually ships in 3-7 days

0

38

Homelite 099980425038

First Ring

$4.49

$

Usually ships in 3-7 days

0

39

Homelite 099980425039

Second Ring

$2.99

$

Usually ships in 3-7 days

0

40

Homelite 099980425040

Camshaft Assembly

$33.99

$

Usually ships in 3-7 days

0

41

Homelite 099980425041

Exhaust Valve

$12.99

$

Usually ships in 3-7 days

0

42

Homelite 099980425042

Intake Valve

$9.49

$

Usually ships in 3-7 days

0

43

Homelite 099980425043

Valve Spring Seat

$4.49

$

Usually ships in 3-7 days

0

44

Homelite 099980425044

Exhaust Valve Retainer

$

$

Not available

45

Homelite 099980425045

Valve Rotator

$

$

Not available

46

Homelite 099980425046

Seal Guide

$

$

Not available

47

Homelite 099980425047

Valve Tappet

$3.99

$

Usually ships in 3-7 days

0

48

Homelite 099980425048

Valve Lifter

$2.99

$

Usually ships in 3-7 days

0

49

Homelite 099980425049

Lifter Stopper Plate Assembly

$2.49

$

Usually ships in 3-7 days

0

50

Homelite 099980425050

Valve Adjusting Bolt

$2.99

$

Usually ships in 3-7 days

0

51

Homelite 099980425051

Valve Rocker

$2.49

$

Usually ships in 3-7 days

0

52

Homelite 099980425052

Valve Adjusting Nut

$

$

Not available

53

Homelite 099980425053

Valve Lock Nut

$2.49

$

Usually ships in 3-7 days

0

54

Homelite 099980425054

Valve Spring

$

$

Not available

55

Homelite 099980425055

Bolt
(Superseded to 099980425005)

$3.49

$

In Stock, only 3 left!

0

56

Homelite 099980425056

Recoil Starter Assembly

$55.99

$

In Stock, only 3 left!

0

57

Homelite 099980425057

Shroud

$28.99

$

Usually ships in 3-7 days

0

58

Homelite 099980425058

Cylinder Body Shroud

$

$

Not available

59

Homelite 099980425059

Lower Shield

$

$

Not available

60

Homelite 099980425060

Oil Protector

$9.49

$

Usually ships in 3-7 days

0

61

Homelite 099980425061

Stop Engine Switch Assembly

$6.49

$

In Stock, only 1 left!

0

62

Homelite 099980425062

Bolt

$2.49

$

Usually ships in 3-7 days

0

63

Homelite 099980425063

Bolt

$

$

Not available

64

Homelite 099980425064

Collar

$

$

Not available

65

Homelite 099980425065

Bolt

$2.49

$

Usually ships in 3-7 days

0

66

Homelite 099980425066

Bolt

$2.49

$

Usually ships in 3-7 days

0

67

Homelite 099980425067

Carburetor Assembly
(Superseded to 16100-Z440210-QG00)

Note: (UT80522) (Inc. Key No. 113)

$59.99

$

In Stock, only 3 left!

0

67

Homelite 099980425134

Carburetor Assembly

Note: (UT80953) (Inc. Key No. 113)

$

$

Not available

68

Homelite 099980425068

Air Cleaner Gasket

$3.49

$

In Stock, only 2 left!

0

69

Homelite 099980425069

Carburetor Gasket

$3.49

$

In Stock, Qty 5

0

70

Homelite 099980425070

Carburetor Insulator Plate

$

$

Not available

71

Homelite 099980425071

Carburetor Insulator Gasket

$3.49

$

Usually ships in 3-7 days

0

72

Homelite 099980425072

Nut

$2.49

$

Usually ships in 3-7 days

0

73

Homelite 099980425073

Air Cleaner
(Superseded to 17100-Z440110-0000)

Note: (Inc. Key Nos. 74-75)

$29.99

$

Usually ships in 3-7 days

0

Homelite 099980425133

Air Cleaner

Note: (Inc. Key Nos. 74-75)

$

$

Not available

74

Homelite 099980425099

Air Cleaner Case Cover

$10.99

$

Usually ships in 3-7 days

0

75

Homelite 099980425101

Air Cleaner Element
(Superseded to 17151-Z440110-0000)

$7.49

$

In Stock, only 1 left!

0

76

Homelite 099980425074

Exhaust Outlet Gasket

$2.99

$

Usually ships in 3-7 days

0

77

Homelite 099980425075

Nut

$

$

Not available

78

Homelite 099980425076

Muffler Assembly

Note: (Inc. Key No. 79, UT80522)

$66.99

$

Usually ships in 3-7 days

0

78

Homelite 099980425129

Muffler Assembly

Note: (Inc. Key No. 79, UT80953)

$

$

Not available

79

Homelite 099980425100

Muffler Outer Cover

$21.99

$

Usually ships in 3-7 days

0

80

Homelite 099980425077

Fuel Tank

Note: (UT80522)

$85.99

$

Usually ships in 3-7 days

0

80

Homelite 099980425119

Fuel Tank

Note: (UT80953)

$

$

Not available

81

Homelite 099980425078

Fuel Strainer

$3.49

$

In Stock, Qty 7

0

82

Homelite 099980425079

Fuel Tank Cap

Note: (UT80522)

$8.49

$

Usually ships in 3-7 days

0

82

Homelite 099980425120

Fuel Tank Cap

Note: (UT80953)

$

$

Not available

83

Homelite 099980425080

Fuel Tank Outlet Assembly

$3.99

$

In Stock, Qty 5

0

84

Homelite 099980425081

Collar

$3.49

$

In Stock, Qty 6

0

85

Homelite 099980425082

Fuel Tube

$7.49

$

In Stock, Qty 7

0

86

Homelite 099980425083

Bolt

$

$

Not available

87

Homelite 099980425084

Nut

$2.49

$

Usually ships in 3-7 days

0

88

Homelite 099980425085

Nut

$2.49

$

Usually ships in 3-7 days

0

89

Homelite 099980425086

Starter Pulley

$7.49

$

Usually ships in 3-7 days

0

90

Homelite 099980425087

Impeller

$6.49

$

Usually ships in 3-7 days

0

91

Homelite 099980425088

Flywheel Assembly

$48.99

$

Usually ships in 3-7 days

0

92

Homelite 099980425089

Ignition Coil

Note: (UT80522)

$38.99

$

Usually ships in 3-7 days

0

92

Homelite 099980425136

Ignition Coil

Note: (UT80953)

$

$

Not available

93

Homelite 099980425090

Bolt

$2.49

$

Usually ships in 3-7 days

0

94

Homelite 099980425091

Throttle Control Assembly

$

$

Not available

95

Homelite 099980425092

Governor Spring

$2.49

$

In Stock, only 4 left!

0

96

Homelite 099980425093

Governor Rod

$2.49

$

Usually ships in 3-7 days

0

97

Homelite 099980425094

Throttle Valve Return Spring
(Superseded to 16012-Z010110)

$2.99

$

In Stock, only 4 left!

0

98

Homelite 099980425095

Governor Support Assembly

$

$

Not available

99

Homelite 099980425096

Bolt

$2.49

$

Usually ships in 3-7 days

0

100

Homelite 099980425097

Governor Support Bolt

$

$

Not available

101

Homelite 099980425098

Nut

$

$

Not available

102

Homelite 099980425124

Canister Cover

Note: (UT80953)

$

$

Not available

103

Homelite 099980425125

Carbon Canister

Note: (UT80953)

$

$

Not available

104

Homelite 099980425121

Rollover Valve

Note: (UT80953)

$

$

Not available

105

Homelite 099980425122

Vapor Line

Note: (UT80953)

$

$

Not available

106

Homelite 099980425126

Vapor Line

Note: (UT80953)

$

$

Not available

107

Homelite 099980425128

Bolt

Note: (UT80953)

$

$

Not available

108

Homelite 099980425131

Air Valve Gasket

Note: (UT80953)

$

$

Not available

109

Homelite 099980425132

Muffler Air Valve

Note: (UT80953)

$

$

Not available

110

Homelite 099980425130

Bolt

Note: (UT80953)

$

$

Currently unavailable

111

Homelite 099980425123

Clamp

Note: (UT80953)

$

$

Not available

112

Homelite 099980425127

Clamp

Note: (UT80953)

$2.49

$

Usually ships in 3-7 days

0

113

Homelite 099980425137

Choke Lever

$

$

Currently unavailable
