UT-80720 - Homelite Pressure Washer Figure A Parts Diagram

Pressure Washer

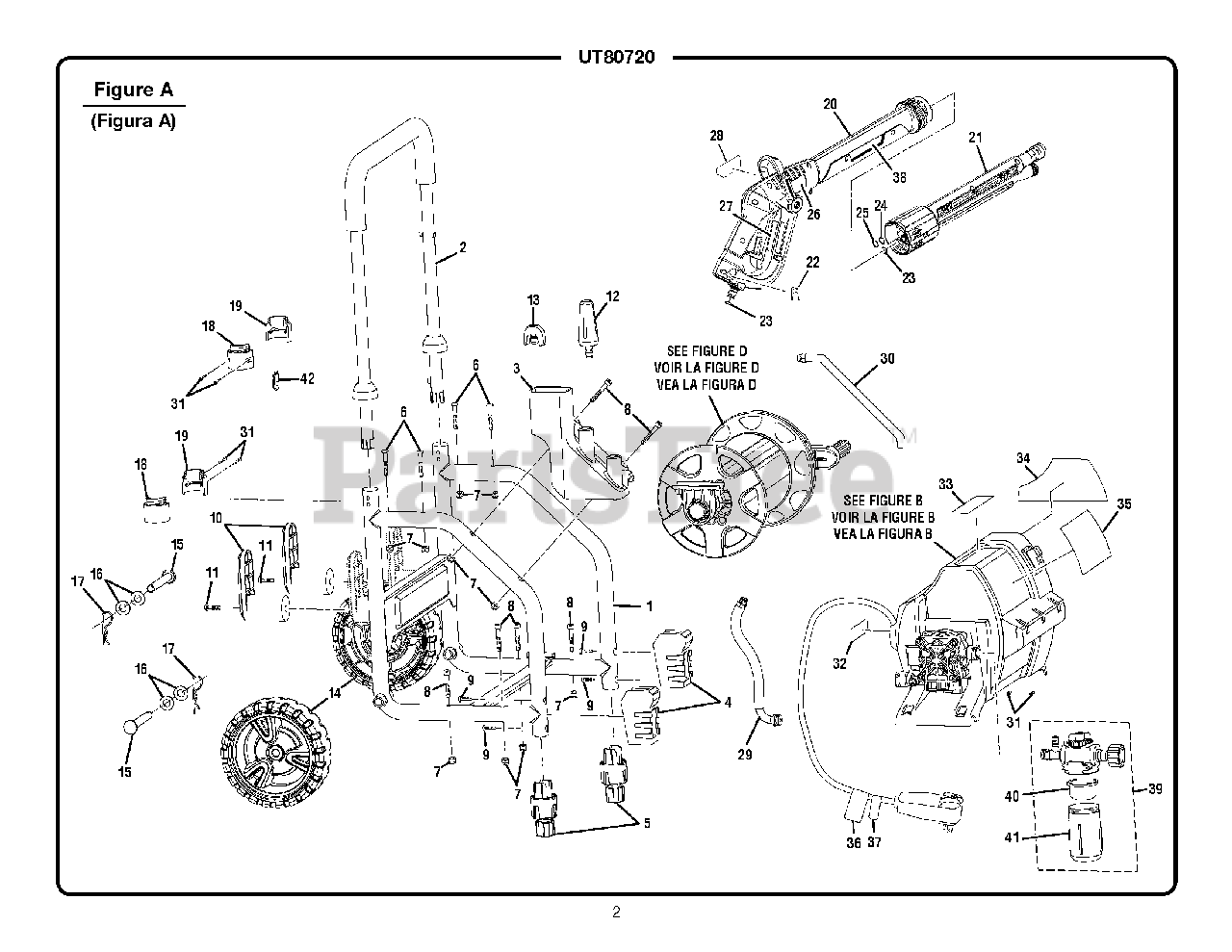

Figure A Parts Diagram

  • Title

1

Homelite 308412024

Frame Assembly

$

$

Not available

2

Homelite 308790024

Handle Assembly

$

$

Not available

3

Homelite 519312002

Trigger Handle Holder

$

$

Not available

4

Homelite 570355004

Foot Cover

$

$

Not available

5

Homelite 308909009

Foot Assembly

$1.49

$

Usually ships in 3-7 days

0

6

Homelite 660590002

Bolt (M6 x 40 mm, Pan Hd.)

$

$

Not available

7

Homelite 678460001

Lock Nut (M6)

$1.49

$

Usually ships in 3-7 days

0

8

Homelite 660481015

Screw (M6 x 40 mm)

$

$

Not available

9

Homelite 661403008

Screw (M4 x 12 mm)

$

$

Not available

10

Homelite 522037002

Cord Wrap Arm

$

$

Not available

11

Homelite 661554004

Bolt (M8 x 20 mm, Hex Soc. Hd.)

$

$

Not available

12

Homelite 308311014

Turbo Nozzle

$

$

Not available

13

Homelite 308698024

Spray Nozzle (15deg)

$

$

Not available

14

Homelite 308451020

Wheel Assembly

$

$

Not available

15

Homelite 620599018

Wheel Axle

$

$

Not available

16

Homelite 678889003

Washer (ID12.5 x OD24 x 2t)

$1.49

$

Usually ships in 3-7 days

0

17

Homelite 678238002

Hitch Pin
(Superseded to 678238004)

$1.49

$

Usually ships in 3-7 days

0

18

Homelite 522066001

Inner Handle Clamp

$

$

Not available

19

Homelite 522067001

Outer Handle Clamp

$

$

Not available

20

Homelite 310425001

Trigger Handle Assembly
(Superseded to 31123301G)

$

$

Not available

21

Homelite 308494031

Lance Assembly

$

$

Not available

22

Homelite 519858003

High Pressure Hose Clip

$

$

Not available

23

Homelite 570768001

O-Ring

$1.49

$

In Stock, only 2 left!

0

24

Homelite 120442002

O-Ring

$1.49

$

In Stock, only 2 left!

0

25

Homelite 570742046

Backup Ring

$

$

Not available

26

Homelite 940870001

Logo Label

$

$

Not available

27

Homelite 940779008

Trigger Rating Label

$

$

Not available

28

Homelite 940324005

Warning Label

$

$

Not available

29

Homelite 308835039

High Pressure Hose

$

$

Not available

30

Homelite 308835040

Low Pressure Hose

$

$

Not available

31

Homelite 660923006

Screw (M3 x 10 mm)

$

$

Not available

32

Homelite 940678200

Data Label

$

$

Not available

33

Homelite 940705133

Hydrosurge Label

$

$

Not available

34

Homelite 940707084

Danger Label

$

$

Not available

35

Homelite 940779051

Performance Label

$

$

Not available

36

Homelite 940324013

Warning Label (UL)

$1.49

$

Usually ships in 3-7 days

0

37

Homelite 940604001

California Proposition 65 Label

$

$

Not available

38

Homelite 940324007

Logo Label (Hydrosurge)

$

$

Not available

39

Homelite 309024004

G-Clean Assembly

Note: (Inc. Key Nos. 40-41)

$

$

Not available

40

Homelite 678981001

Water Inlet Filter

$

$

Not available

41

Homelite 519840004

Detergent Container

$

$

Not available

42

Homelite 308910004

Handle Release Button

$

$

Not available

Homelite 988000327

Operator's Manual

Note: Not Shown

$

$

Not available

Homelite 988000328

Replacement Parts List

Note: Not Shown

$

$

Not available

Homelite 988000339

Assembly Guide

Note: Not Shown

$

$

Not available
