UT-902211 - Homelite 2,250 Watt Generator General Assembly Parts Diagram

2,250 Watt Generator

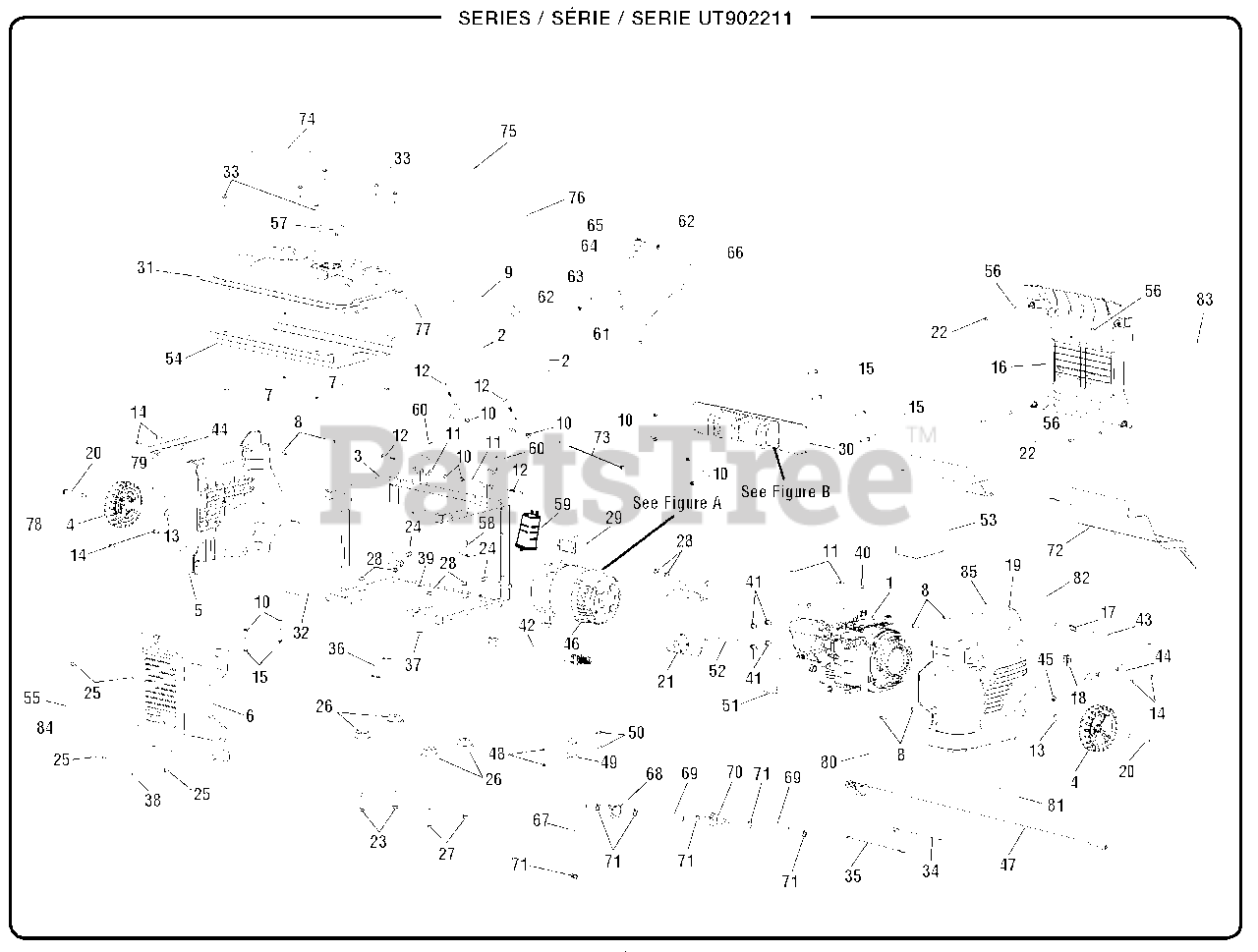

General Assembly Parts Diagram

  • Title

1

Engine (Subaru SP170)

$

$

Not available

2

Homelite 940498001

Handle Warning Label

$

$

Not available

3

Homelite 308581018

Frame Assembly

$

$

Not available

4

Homelite 310223003

Wheel

$

$

Not available

5

Homelite 519848001

Panel Cover

$

$

Not available

6

Homelite 638238002

Service Panel

$

$

Not available

7

Homelite 518724002

Nylon Washer (D20 x D8 x 4.5t)

$1.49

$

Usually ships in 3-7 days

0

8

Homelite 661537001

Screw (#9-18 x 20 mm)

$

$

Not available

9

Homelite 310224021

Handle Assembly

$

$

Not available

10

Homelite 678016006

Lock Nut (1/4-20 in.)
(Superseded to 678016002)

$1.49

$

In Stock, only 2 left!

0

11

Homelite 638128004

Washer (1/4 in.)

$1.49

$

In Stock, Qty 5

0

12

Homelite 678406008

Bolt (1/4-20 x 2 in., Hex Hd.)

$1.49

$

Usually ships in 3-7 days

0

13

Homelite 638275002

Washer (1/2 in.)

$1.49

$

Usually ships in 3-7 days

0

14

Homelite 660956001

Screw (12-14 x 15 mm)

$1.49

$

Usually ships in 3-7 days

0

15

Homelite 661556001

Screw (1/4-20 x 1-3/4 in., T30 Torx Hd.)

$1.49

$

Usually ships in 3-7 days

0

16

Homelite 519849001

Control Panel Cover

$

$

Not available

17

Homelite 310712001

Release Pin

$1.99

$

In Stock, Qty 5

0

18

Homelite 760504004

Switch

$1.99

$

Usually ships in 3-7 days

0

19

Homelite 519863001

Outer Panel

$

$

Not available

20

Homelite 620599010

Wheel Axle

$4.49

$

Usually ships in 3-7 days

0

21

Homelite 309322012

Muffler Assembly

$45.99

$

Usually ships in 3-7 days

0

22

Homelite 660479001

Screw (#9-18 x 15 mm)

$

$

Not available

23

Homelite 661505004

Bolt (M8 x 45 mm, Flange Hd.)

$1.49

$

In Stock, only 1 left!

0

24

Homelite 678815004

Axle Clip

$

$

Not available

25

Homelite 660901008

Screw (1/4-20 x 1/2 in.)

$1.49

$

Usually ships in 3-7 days

0

26

Homelite 570355002

Rubber Foot

$

$

Not available

27

Homelite 661505003

Bolt (M8 x 50 mm)

$1.49

$

Usually ships in 3-7 days

0

28

Homelite 678189001

Lock Nut (M8)

$

$

Not available

29

Homelite 820270002

Capacitor

$27.99

$

Usually ships in 3-7 days

0

30

Homelite 290403013

Control Panel Assembly

Note: (See Fig. B)

$

$

Not available

31

Homelite 310711056

Fuel Tank Assembly

Note: [(Metal) Inc. Key No. 57]

$

$

Not available

32

Homelite 638497018

Intake Heat Shield

$

$

Not available

33

Homelite 660479002

Screw (#10-16 x 1 in.)

$

$

Not available

34

Homelite 290414003

White Assembly Wire (18 Ga)

$

$

Not available

35

Homelite 290513001

Brown Wire Assemly (18 Ga)

$

$

Not available

36

Homelite 290404001

Ground Assembly Wire

$

$

Not available

37

Homelite 678145002

Flange Nut (15/16-18)

$1.49

$

Usually ships in 3-7 days

0

38

Homelite 940803030

Emissions Label

$

$

Not available

39

Homelite 661502005

Bolt (5/16-18 x 3/4 in.)

$1.49

$

Usually ships in 3-7 days

0

40

Homelite 660972011

Bolt (M6 x 10 mm)

$1.49

$

Usually ships in 3-7 days

0

41

Homelite 660599002

Bolt (5/16-24 x 5/8 in.)

$1.99

$

Usually ships in 3-7 days

0

42

Homelite 290431007

Pigtail (Male Connector w/ Wire)

$

$

Currently unavailable

43

Homelite 310715001

Lanyard (3/16 in.)

$

$

Not available

44

Homelite 570371005

Handle Grip

$

$

Not available

45

Homelite 518437003

Recoil Rope Guide

$

$

Not available

46

Homelite 310227026

Generator Head Assembly
(Superseded to 310227023)

Note: (See Fig. A)

$

$

Not available

47

Homelite 290425001

Battery Cable Assembly

$

$

Not available

48

Homelite 678390001

Hex Nut (M5)

$

$

Not available

49

Homelite 638589001

Capacitor Holder

$

$

Not available

50

Homelite 660976002

Bolt (M5 x 16 mm, Pan Hd.)

$1.49

$

Usually ships in 3-7 days

0

51

Homelite 638497016

Heat Shield (Engine Air Inlet)

$

$

Not available

52

Homelite 638497015

Heat Shield (Separator)

$

$

Not available

53

Homelite 638497014

Heat Shield (Surround Muffler)

$

$

Not available

54

Homelite 638497013

Heat Shield (Under Fuel Tank)

$

$

Not available

55

Homelite 940708007

Engine Lubricant Label

$

$

Not available

56

Homelite 678434001

Washer

$

$

Not available

57

Homelite 310720014

Fuel Tank Cap

$11.99

$

Usually ships in 3-7 days

0

58

Homelite 638708003

Canister Bracket

$

$

Not available

59

Homelite 310723004

Canister

$

$

Currently unavailable

60

Homelite 638702012

Bracket

$

$

Not available

61

Homelite 678408005

Fuel Line Clamp (3/8 in.)

$

$

Not available

62

Homelite 678409002

Fuel Line Clamp (5/16 in.)

$1.49

$

In Stock, Qty 5

0

63

Homelite 570358010

Fuel Line Hose (4 mm, 305 mm)

$2.49

$

Usually ships in 3-7 days

0

64

Homelite 638711001

Bushing

$

$

Not available

65

Homelite 638710001

Fuel Check Valve

$

$

Not available

66

Homelite 570358009

Fuel Line Hose (5 mm, 432 mm)

$2.99

$

Usually ships in 3-7 days

0

67

Homelite 570358026

Fuel Hose (150 mm)

$

$

Not available

68

Homelite 308459002

Fuel Shut-off Valve

$19.99

$

In Stock, only 1 left!

0

69

Homelite 570358025

Fuel Hose (100 mm)

$3.49

$

Usually ships in 3-7 days

0

70

Homelite 308733001

Fuel Line Filter
(Superseded to 308733008)

$8.49

$

In Stock, Qty 7

0

71

Homelite 678408006

Fuel Line Clamp (1/2 in.)

$1.99

$

Usually ships in 3-7 days

0

72

Homelite 638497017

Heat Shield

$

$

Not available

73

Homelite 900333012

Cable Tie (18.6 in.)

$1.99

$

Usually ships in 3-7 days

0

74

Homelite 940515016

CPSC Label

$6.99

$

Usually ships in 3-7 days

0

75

Homelite 961030006

Engine Hang Tag

$

$

Not available

76

Homelite 940707081

Danger Label

$

$

Not available

77

Homelite 940974007

Fire Danger Label

$

$

Not available

78

Homelite 940513018

Ground Warning Label

$

$

Not available

79

Homelite 940680021

Hot Surface Label

$

$

Not available

80

Homelite 940734063

Starting Instructions Label

$

$

Not available

81

Homelite 940678206

Data Plate

$

$

Not available

82

Homelite 940474001

Engine Switch Label

$

$

Not available

83

Homelite 940705142

Logo Label

$

$

Not available

84

Homelite 940947003

Combustion Label

$

$

Not available

85

Homelite 941494004

Fuel Valve Label

$

$

Not available

Homelite 940654075

Cord Warning Label (DC)

Note: Not Shown

$1.99

$

Usually ships in 3-7 days

0

Homelite 988000464

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
