UT-903655 DA (990000674) - Homelite 3,500 Watt Generator Figure B Parts Diagram

3,500 Watt Generator

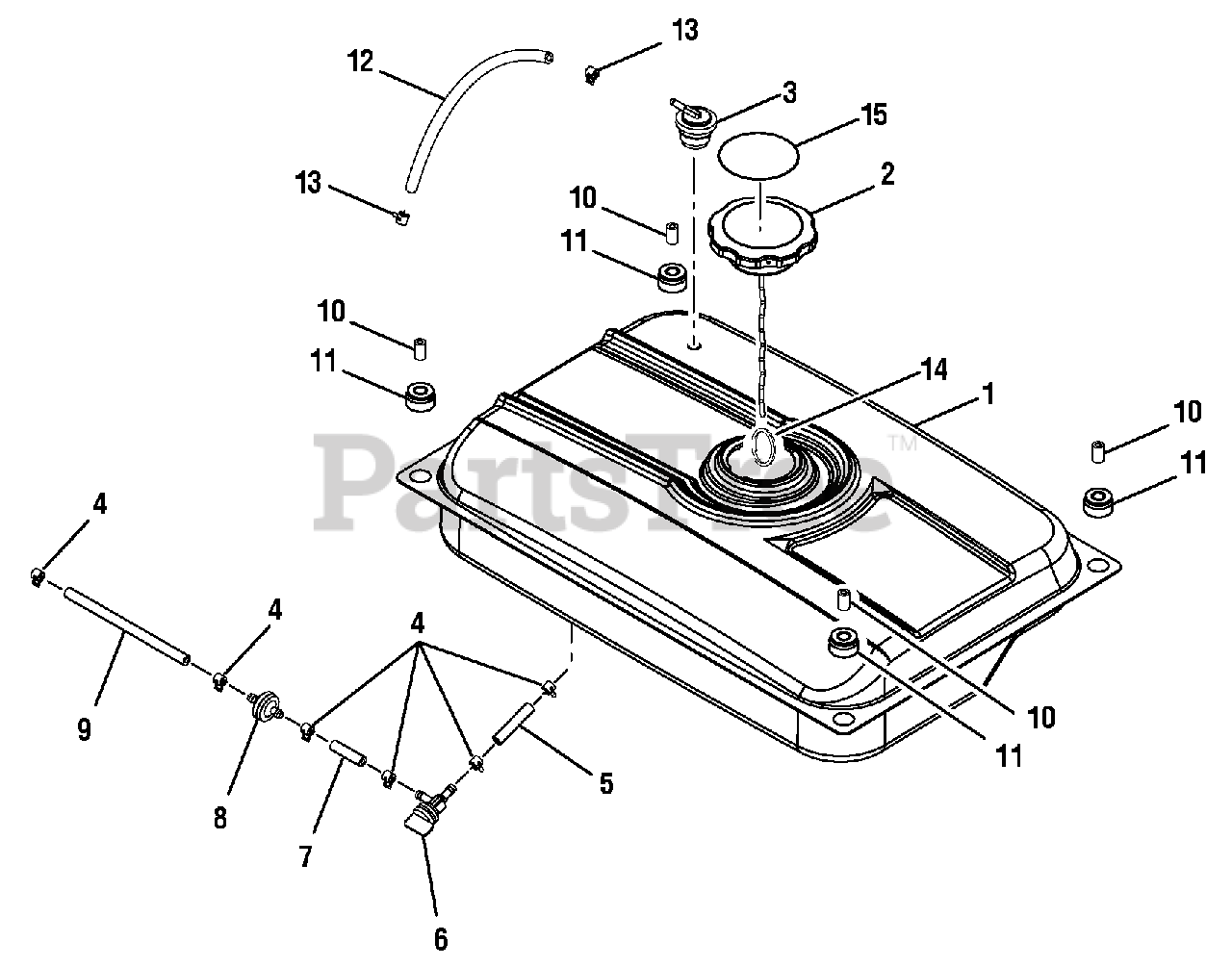

Figure B Parts Diagram

  • Title

1

Homelite 310711148

Fuel Tank

$

$

Not available

2

Homelite 310720039

Fuel Cap

$9.49

$

Usually ships in 3-7 days

0

3

Homelite 310854002

Vapor Vent

$

$

Not available

4

Homelite 678408006

Clamp (1/2 in.)

$1.99

$

In Stock, only 4 left!

0

5

Homelite 570358064

Fuel Hose (45 mm)

$1.99

$

Usually ships in 3-7 days

0

6

Homelite 308459002

Fuel Shut Off Valve

$19.99

$

In Stock, only 1 left!

0

7

Homelite 570358065

Fuel Hose (35 mm)

$1.49

$

Usually ships in 3-7 days

0

8

Homelite 308733008

Fuel Filter

$8.49

$

In Stock, Qty 8

0

9

Homelite 570358029

Fuel Line (144 mm)
(Superseded to 570358032)

$

$

Not available

10

Homelite 638326006

Spacer

$1.49

$

Usually ships in 3-7 days

0

11

Homelite 519832008

Isolator

$

$

Not available

12

Homelite 570358108

Vent Hose

$4.99

$

Usually ships in 3-7 days

0

13

Homelite 678409003

Fuel Line Clamp (7/16 in.)

$1.49

$

In Stock, Qty 5

0

14

Homelite 678899007

Ring Clip

$1.49

$

In Stock, only 4 left!

0

15

Homelite 940872006

Fuel Stabilizer Label

$1.49

$

Usually ships in 3-7 days

0
