UT-905000 P - Homelite 5,000 Watt Generator Figure C Parts Diagram

5,000 Watt Generator

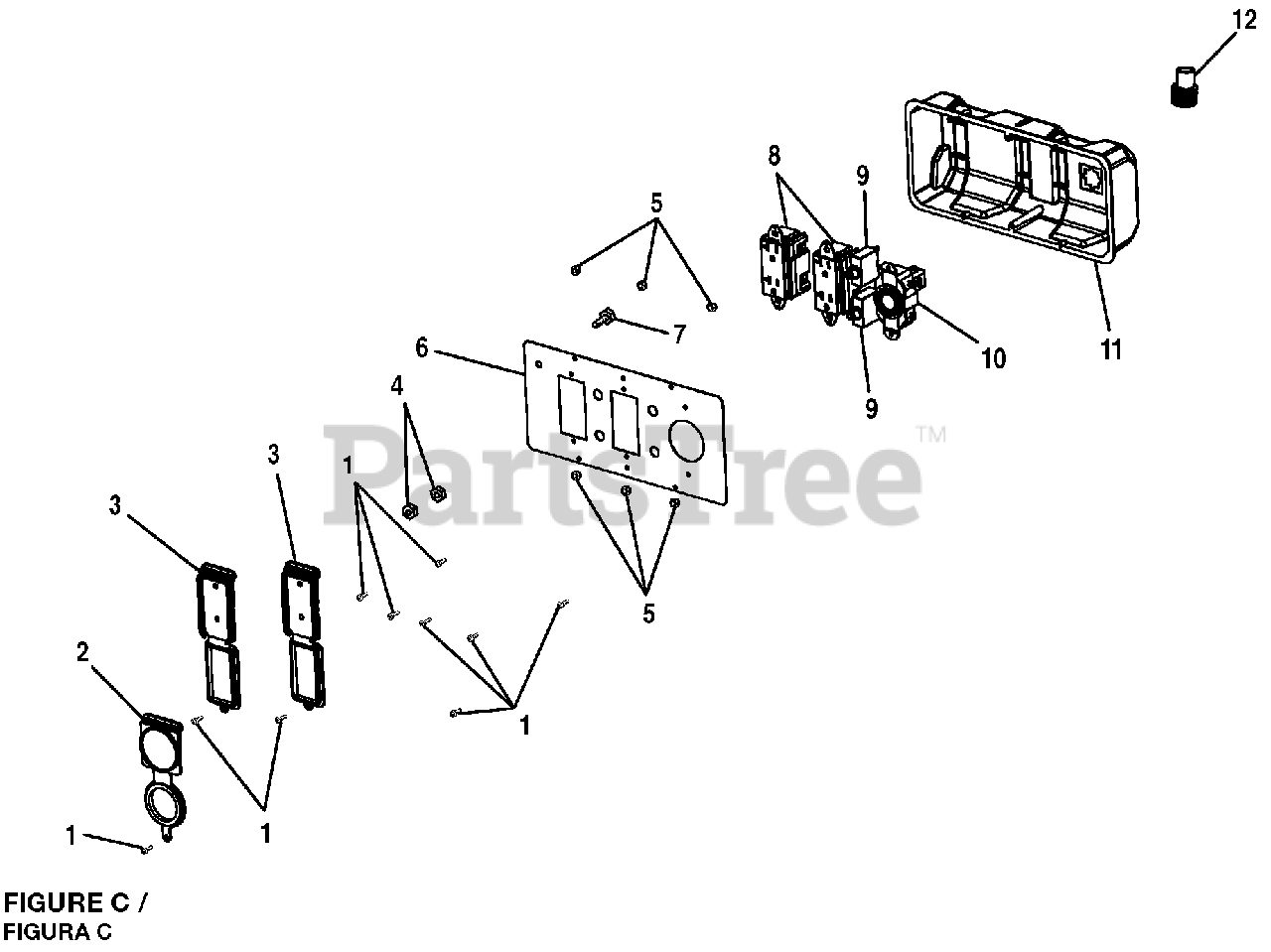

Figure C Parts Diagram

  • Title

1

Homelite 660958001

Screw (6-20 x 3/8 in.)

$

$

Currently unavailable

2

Homelite 570412001

Outlet Cover (240 Volt)

$

$

Not available

3

Homelite 570412002

Outlet Cover (120 Volt)

$7.99

$

Usually ships in 3-7 days

0

4

Homelite 678810002

Hex Nut (1/4-20)

$1.49

$

Usually ships in 3-7 days

0

5

Homelite 678720001

Nut (M6-32)

$1.49

$

In Stock, only 4 left!

0

6

Homelite 638496004

Cover Plate

$

$

Not available

7

Homelite 661503011

Screw (1/4-20 x 5/8 in., Hex Hd.)

$

$

Not available

8

Homelite 290400008

Duplex Receptacle (120 Volt)

$

$

Not available

9

Homelite 780350001

Circuit Breaker (20 Amp, 125 Volt)

$8.49

$

In Stock, only 1 left!

0

10

Homelite 290400007

Twist Lock Receptacle (120/240 Volt, 20 Amp)

$

$

Not available

11

Homelite 519707001

Rear Control Panel

$

$

Not available

12

Homelite 678824001

Rubber Boot

$1.49

$

In Stock, Qty 6

0

13

Homelite 940780040

Control Panel Label

$

$

Not available

Homelite 310714025

Panel Assembly

Note: (Key 1-10, 12 and 13)

$

$

Not available
