UT-905000 SA - Homelite 5,000 Watt Generator Figure A Parts Diagram

5,000 Watt Generator

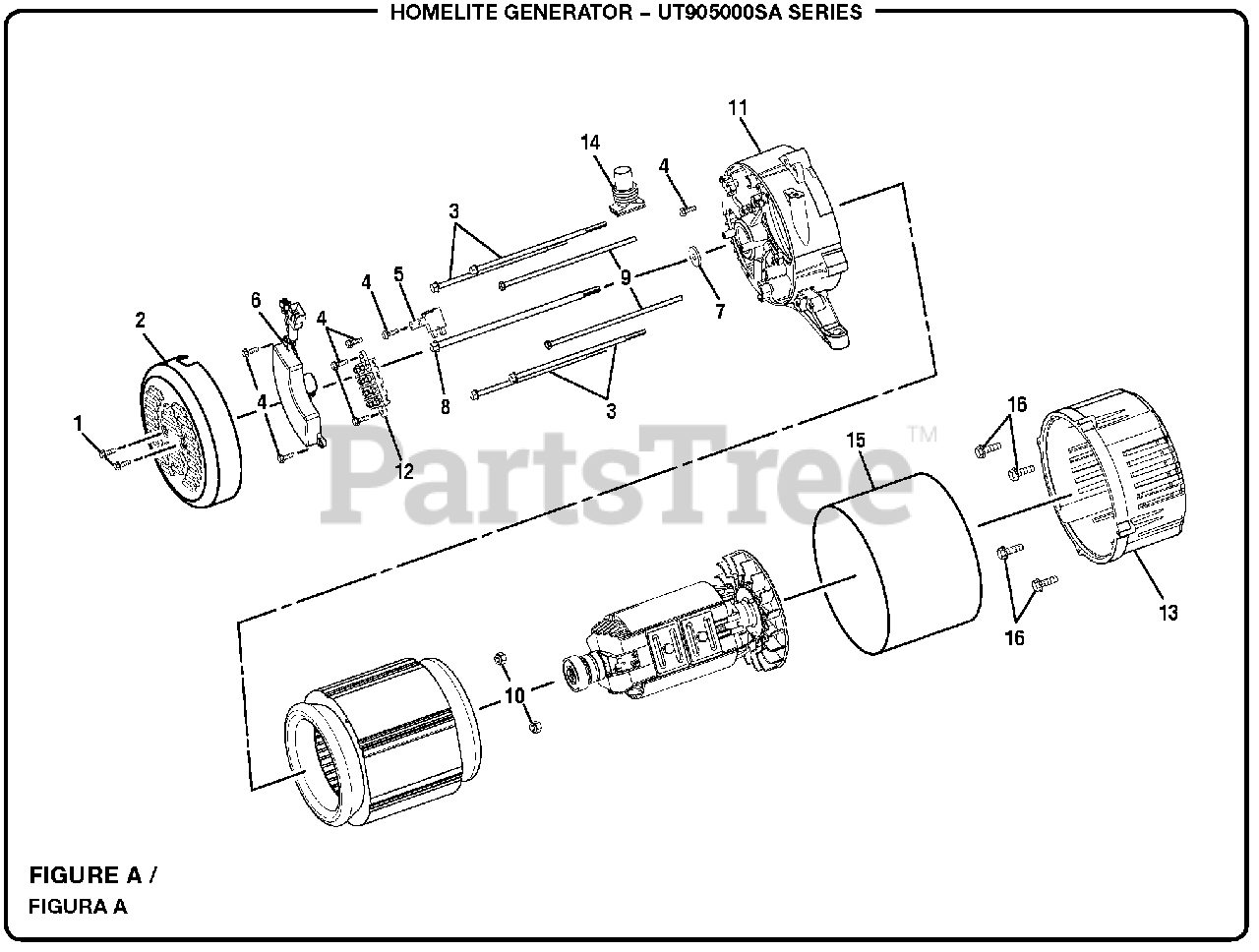

Figure A Parts Diagram

  • Title

1

Homelite 661603001

Bolt (M5 x 10 mm, FlangeHex Hd)

$

$

Not available

2

Homelite 678296002

Brush Cover

$

$

Not available

3

Homelite 660869006

Bolt (1/4-20 x 6 in, Hex Hd)

$2.99

$

Usually ships in 3-7 days

0

4

Homelite 661603002

Bolt (M5 x 16 mm, Flange Hex Hd)

$

$

Not available

5

Homelite 290441001

Brush Assembly

$

$

Not available

6

Homelite 290440008

Automatic Voltage Regulator
(Superseded to 290440012)

$

$

Not available

7

Homelite 638128002

Washer (5/16 in)

$

$

Not available

8

Homelite 661557009

Bolt (5/16-24 x 230 mm, Hex Hd)

$

$

Not available

9

Homelite 661603010

Bolt (M5 x 230mm, Hex Hd)

$

$

Not available

10

Homelite 690840002

Hex Nut (M5)

$3.99

$

Usually ships in 3-7 days

0

11

Homelite 678289008

Bearing Support

$121.99

$

Usually ships in 3-7 days

0

12

Homelite 290602001

Terminal Block

$

$

Currently unavailable

13

Homelite 640331002

Engine Adapter

$74.99

$

Usually ships in 3-7 days

0

14

Homelite 570766003

Rubber Boot

$3.99

$

Usually ships in 3-7 days

0

15

Homelite 638545003

Cover

$

$

Currently unavailable

16

Homelite 660596002

Bolt (3/8-16 x 1-1/4 in)

$1.49

$

Usually ships in 3-7 days

0
