UT-905700 - Homelite 5,700 Watt Generator General Assembly Parts Diagram

5,700 Watt Generator

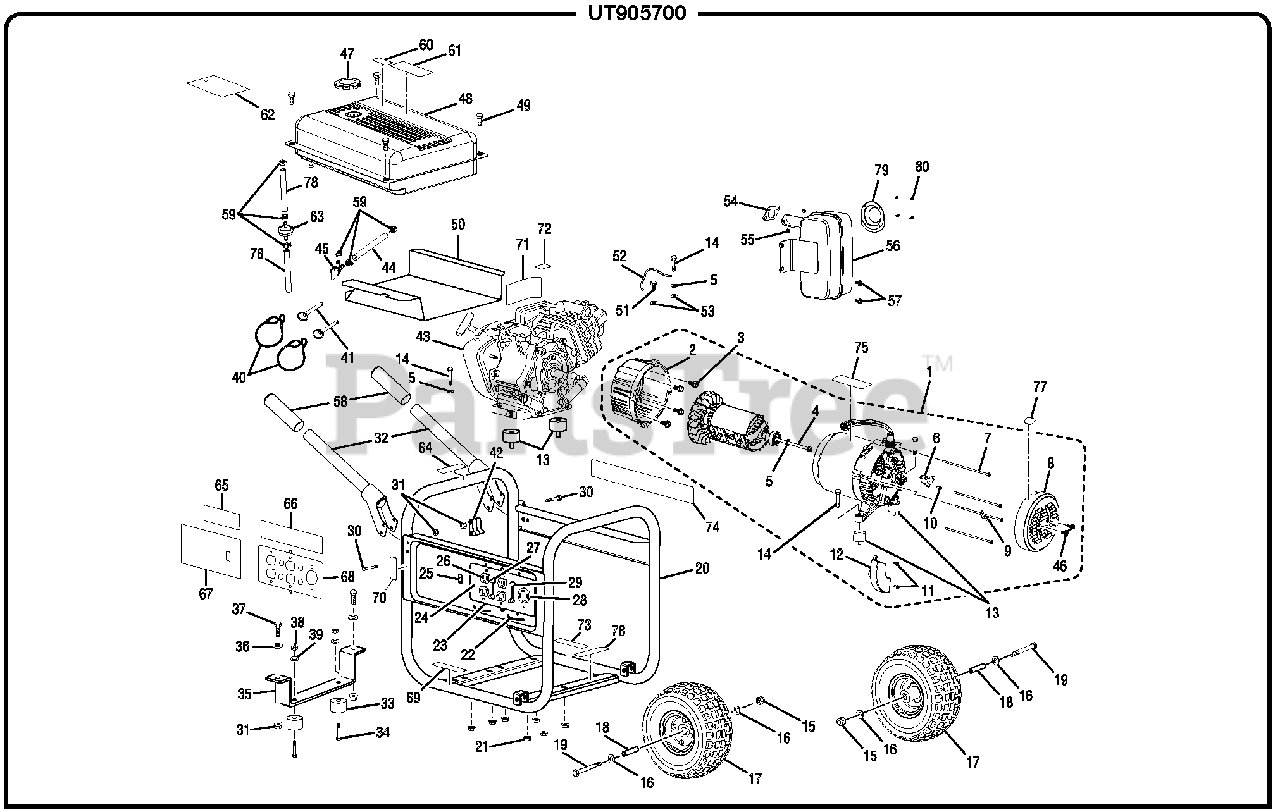

General Assembly Parts Diagram

  • Title

1

Homelite 310227003

Generator Head Assembly

Note: (Inc. Key Nos. 2 & 4-12)

$

$

Not available

2

Homelite 640331002

Adapter Housing

$37.99

$

Usually ships in 3-7 days

0

3

Homelite 660596002

Bolt, Wiz (3/8-18 x 1-1/4 in.)

$1.49

$

Usually ships in 3-7 days

0

4

Homelite 661557003

Bolt (5/16-24 x 6-5/8 in., Hex Hd.)

$

$

Not available

5

Homelite 638678002

Lock Washer (5/16 in.)

$1.49

$

Usually ships in 3-7 days

0

6

Homelite 290441001

Brush Assembly

$

$

Not available

7

Homelite 660596009

Bolt, Stator 5.7kW

$

$

Not available

8

Homelite 519785002

Brush Cover

$

$

Not available

9

Homelite 638703001

Ground Lug

$1.49

$

Usually ships in 3-7 days

0

10

Homelite 661603002

Bolt, Mounting Brush Assembly

$

$

Not available

11

Homelite 661603001

Bolt, Mounting AVR

$

$

Not available

12

Homelite 290440008

Automatic Voltage Regulator
(Superseded to 290440012)

$

$

Not available

13

Homelite 570356001

Isolator

$

$

Not available

14

Homelite 660591006

Bolt (5/16-18 x 1 1/2 in., Hex Hd.)

$1.49

$

In Stock, only 3 left!

0

15

Homelite 678659001

Lock Nut (3/8-16)

$1.49

$

Usually ships in 3-7 days

0

16

Homelite 638386003

Washer, Flat (3/8 in.)

$1.49

$

Usually ships in 3-7 days

0

17

Homelite 310223001

Wheel (10 in.)

$

$

Not available

18

Homelite 638498001

Wheel Spacer

$2.99

$

Usually ships in 3-7 days

0

19

Homelite 661558002

Bolt (3/8-16 x 4-1/4 in.)

$2.99

$

Usually ships in 3-7 days

0

20

Homelite 310222002

Frame Assembly

$

$

Not available

21

Homelite 678145002

Flange Nut (5/16-18)

$1.49

$

Usually ships in 3-7 days

0

22

Homelite 678655001

Cord Retainer

$1.49

$

Usually ships in 3-7 days

0

23

Homelite 660598001

Screw (6-20 x .38 in.)

$1.99

$

In Stock, only 3 left!

0

24

Homelite 290403002

Wire Panel

$85.99

$

Usually ships in 3-7 days

0

25

Homelite 760504002

Switch, Engine Stop

$

$

Not available

26

Homelite 290400001

Recepticle (120 V, 20 Amp)

$

$

Not available

27

Homelite 780350001

Circuit Breaker 20 Amp Single Pole

$8.49

$

In Stock, only 1 left!

0

28

Homelite 290401001

Recepticle (240 V, 30 Amp)

$15.99

$

In Stock, only 2 left!

0

29

Homelite 780350003

Circuit Breaker 25 Amp Single Pole

$

$

Not available

30

Homelite 661503005

Bolt (1/4-20 x 1 in)

$1.49

$

In Stock, only 2 left!

0

31

Homelite 678259003

Lock Nut (5/16-18)

$1.49

$

Usually ships in 3-7 days

0

32

Homelite 310224006

Handle Assembly

Note: (Inc. Key No. 58)

$

$

Not available

33

Homelite 570355001

Rubber Foot

$

$

Not available

34

Homelite 661503003

Bolt (1/4-20 x 1/2 in.)

$1.99

$

In Stock, only 4 left!

0

35

Homelite 638706001

Front Foot Bracket

$10.99

$

Usually ships in 3-7 days

0

36

Homelite 638675004

Washer (5/16 in.)
(Superseded to 638675003)

$1.49

$

Usually ships in 3-7 days

0

37

Homelite 660599001

Bolt (5/16-18 x 1 in. Hex Hd.)

$1.49

$

Usually ships in 3-7 days

0

38

Homelite 678656001

Nut, Nyloc (1/4-20)

$

$

Not available

39

Homelite 638387002

Washer (1/4 in.)

$

$

Not available

40

Homelite 310715001

Lanyard

$

$

Not available

41

Homelite 310712001

Handle Lock Pin

$1.99

$

In Stock, Qty 5

0

42

519728001

Handle Bracket Spacer

$

$

Not available

43

Engine (Yamaha OHV)

Note: Homelite Consumer Products, Inc., will not provide engines as replacement parts. Engines are covered through the engine manufacturer's warranty. Consult the accompanying engine manual or contact our service department for assistance.

$

$

Not available

44

Homelite 570358034

Fuel Line (145 mm)

$6.49

$

Usually ships in 3-7 days

0

45

Homelite 308459002

Fuel Shut Off Valve

$19.99

$

Usually ships in 3-7 days

0

46

Homelite 661603001

Bolt

$

$

Not available

47

Homelite 310720024

Fuel Cap

$10.99

$

In Stock, only 1 left!

0

48

Homelite 310711009

Fuel Tank Assembly

$

$

Not available

49

Homelite 661503005

Screw (1/4-20 x 1 in.)

$1.49

$

In Stock, only 2 left!

0

50

Homelite 638497001

Heat Shield

$

$

Not available

51

Homelite 661502005

Bolt (5/16-18 x 3/4 in., Hex. Hd.)

$1.49

$

Usually ships in 3-7 days

0

52

Homelite 290404001

Ground Wire Assembly

$

$

Not available

53

Homelite 638704001

Washer (5/16 in.) External Star

$1.99

$

Usually ships in 3-7 days

0

54

Homelite 638499002

Gasket

$

$

Currently unavailable

55

Homelite 678654001

Nut (8 mm)

$

$

Currently unavailable

56

Homelite 309322002

Muffler

$

$

Not available

57

Homelite 660599002

Bolt (5/16-24 x 5/8 in.)

$1.99

$

Usually ships in 3-7 days

0

58

Homelite 570357001

Handle Grip
(Superseded to 310224002)

$

$

Not available

59

Homelite 678408006

Fuel Line Clamp

$1.99

$

In Stock, only 4 left!

0

60

Homelite 940872003

E85 Label

$1.49

$

In Stock, only 2 left!

0

61

Homelite 940515016

CPSC Label

$6.99

$

Usually ships in 3-7 days

0

62

Homelite 940971058

Caution Hang Tag

$

$

Not available

63

Homelite 308733008

Fuel Filter

$8.49

$

In Stock, Qty 8

0

64

Homelite 940974007

Risk of Fire Danger Label

$

$

Not available

65

Homelite 940513008

Ground Warning Label

$

$

Not available

66

Homelite 940608002

Powered By Yamaha Label

$

$

Not available

67

Homelite 940705041

Logo Label

$2.99

$

Usually ships in 3-7 days

0

68

Homelite 940780039

Control Panel Label

$4.49

$

Usually ships in 3-7 days

0

69

Homelite 940708007

Engine Lubricant Label

$

$

Not available

70

Homelite 940514001

Lock Pin Label

$1.49

$

Usually ships in 3-7 days

0

71

Homelite 940617023

Starting Label

$

$

Not available

72

Homelite 940647035

Choke Label

$

$

Not available

73

Homelite 940680015

Hot Surface Label

$1.49

$

Usually ships in 3-7 days

0

74

Homelite 940707013

Danger Label

$

$

Not available

75

Homelite 940678242

Data Label

$

$

Currently unavailable

76

Homelite 940947003

UL Fire Warning Label

$

$

Not available

77

Homelite 940513010

Ground Label

$

$

Not available

78

Homelite 570358032

Fuel Line (105 mm)

$

$

Not available

79

Homelite 638147003

Spark Arrestor

$

$

Not available

80

Homelite 661306001

Screw (8-32 x 3/8 in.)

$1.99

$

Usually ships in 3-7 days

0

Homelite 901606006

Lubricant (SAE 10W30)

Note: Not Shown

$

$

Currently unavailable

Homelite 988000743

Operator's Manual

$

$

Currently unavailable
