UT-9C5000 D - Homelite 5,000 Watt Generator Figure G (Crankcase Assembly) Parts Diagram
5,000 Watt Generator

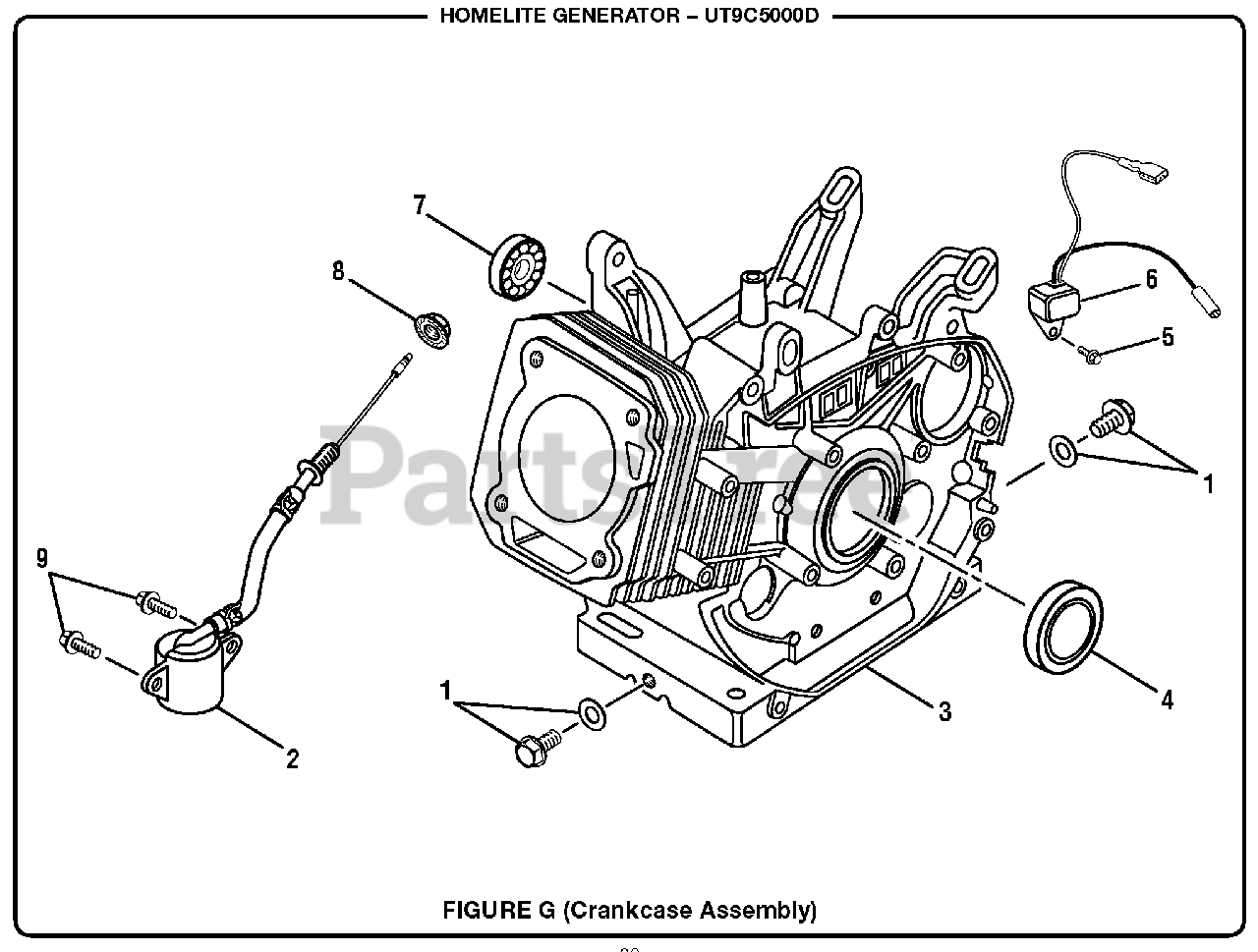

Figure G (Crankcase Assembly) Parts Diagram
Homelite 099958001701
Drain Plug Assembly
$1.49
$
Usually ships in 3-7 days
Homelite 099958001702
Oil Sensor Assembly
$4.49
$
Usually ships in 3-7 days
Homelite 099947001062
Short Block Cover Assembly w/Crankcase
$
$
Not available
Homelite 099958001001
Oil Seal (35 mm x 52 mm x 8 mm)
$
$
Not available
Homelite 099958001003
Bolt (M6 x 12 mm Flange Hd)
$
$
Not available
Homelite 099958001002
Amplifier
$1.49
$
Usually ships in 3-7 days
Homelite 099958001004
Ball Bearing (6202)
$
$
Not available
Homelite 099958001005
Flange Nut (M10)
$1.49
$
Usually ships in 3-7 days
Homelite 099958001006
Bolt (M6 x 16 mm, Flange Hd)
$
$
Not available
