UTS500AAC00000 - Exmark 500S Utility Vehicle (2015) Crankshaft, Balancer, Starter Gear, And Piston Assemblies Parts Diagram

500S Utility Vehicle

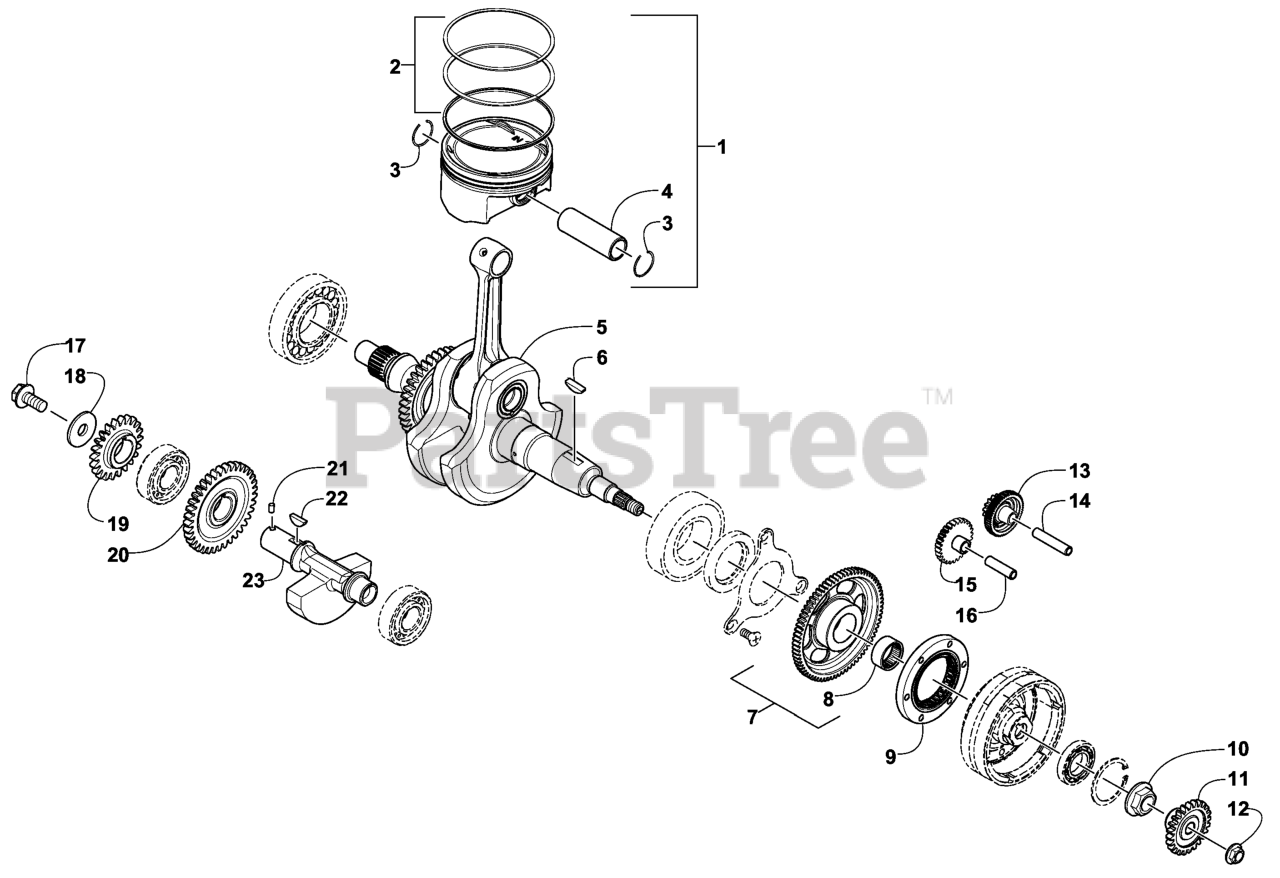

Crankshaft, Balancer, Starter Gear, And Piston Assemblies Parts Diagram

  • Title

1

Exmark 132-2150

PISTON SET

Note: (inc. 2-4)

$

$

Not available

2

Exmark 132-2148

PISTON RING SET

$

$

Not available

3

Exmark 132-2530

CIRCLIP-PISTON PIN

$

$

Not available

4

Exmark 1-322143

1-322173
(Superseded to 1-322173)

$

$

Not available

5

Exmark 132-2141

CRANKSHAFT ASM

$

$

Not available

6

Exmark 132-2458

KEYWAY

$

$

Not available

7

Exmark 132-2250

GEAR-STARTER CLUTCH, 73T

Note: (inc. 8)

$

$

Not available

8

Exmark 132-2555

BEARING-NEEDLE, ROLLER

$

$

Not available

9

Exmark 132-2132

CLUTCH-ONE WAY (W/ HUB AS

$

$

Not available

10

Exmark 132-2909

NUT-HHF

$

$

Not available

11

Exmark 132-2214

GEAR-DRIVEN, PRIMARY

$

$

Not available

12

Exmark 132-2806

NUT-HHF

$

$

Not available

13

Exmark 132-2251

GEAR-STARTER IDLER, 56/14

$129.99

$

Usually ships in 3-6 days

0

14

Exmark 132-2247

PIN-STARTER IDLER, GEAR N

$

$

Not available

15

Exmark 132-2249

GEAR-STARTER IDLER, 27T (

$

$

Not available

16

Exmark 132-2248

PIN-STARTER IDLER, GEAR N

$

$

Not available

17

Exmark 132-2378

SCREW-HFH

$6.99

$

Usually ships in 3-6 days

0

18

Exmark 132-2439

WASHER-STEEL

$

$

Not available

19

Exmark 1-322211

1-321021
(Superseded to 1-321021)

$95.99

$

Usually ships in 3-6 days

0

20

Exmark 132-2210

GEAR-DRIVEN, NO. 1

$

$

Not available

21

Exmark 132-2832

PIN-DOWEL

$

$

Not available

22

Exmark 132-2457

KEY-WOODRUFF

$

$

Not available

23

Exmark 132-2213

SHAFT-BALANCER

$

$

Not available
