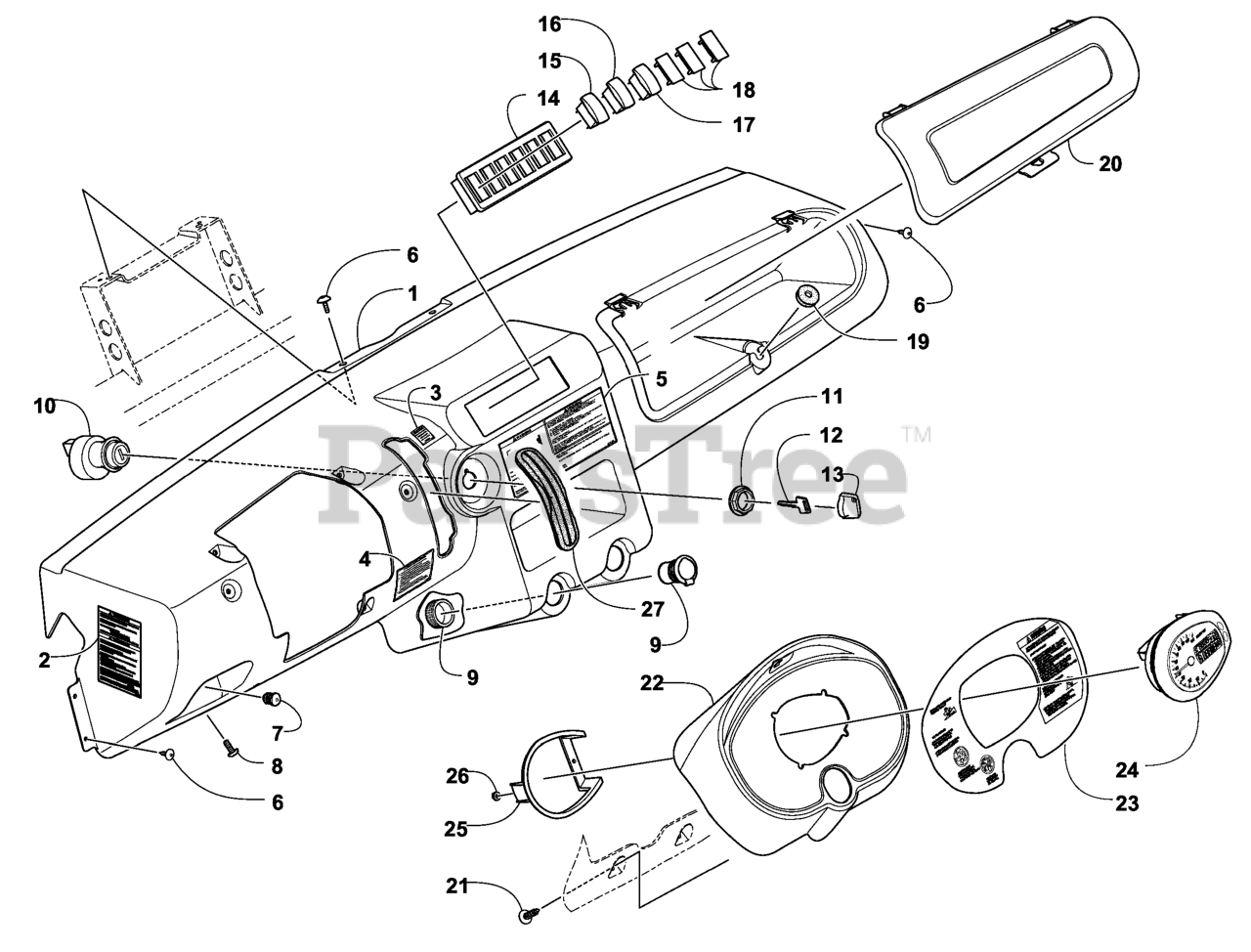

UTS500AAC00000 - Exmark 500S Utility Vehicle (2015) Dash Assembly Parts Diagram

500S Utility Vehicle

Dash Assembly Parts Diagram

  • Title

1

Exmark 132-3021

PANEL-DASH, NON TILT/DASH

$673.99

$

Usually ships in 3-6 days

0

2

Exmark 132-2952

DECAL-WARNING, TIRE PRESS

$24.99

$

Usually ships in 3-6 days

0

3

Exmark 132-2733

DECAL-CAUTION, ENGINE RPM

$5.49

$

Usually ships in 3-6 days

0

4

Exmark 132-2732

DECAL-STARTING INSTRUCTIO

$19.99

$

Usually ships in 3-6 days

0

5

Exmark 132-2953

DECAL-WARNING, DASH CENTE

$24.99

$

Usually ships in 3-6 days

0

6

Exmark 132-2107

SCREW-TSTRH, SELFTAP

$1.49

$

In Stock, Qty 6

0

7

Exmark 132-2712

PLUG-TUBE

$5.49

$

Usually ships in 3-6 days

0

8

Exmark 132-1945

SCREW

$1.49

$

Usually ships in 3-6 days

0

9

Exmark 132-2111

OUTLET-12V DC

$29.99

$

Usually ships in 3-6 days

0

10

Exmark 132-1982

SWITCH-IGNITION, START

Note: (inc. 11-13)

$87.99

$

Usually ships in 3-6 days

0

11

Exmark 132-1986

NUT

$2.99

$

Usually ships in 3-6 days

0

12

Exmark 132-1983

KEY-BLANK

$27.99

$

Usually ships in 3-6 days

0

12

Exmark 132-1984

KEY-BLANK

$27.99

$

Usually ships in 3-6 days

0

13

Exmark 132-1985

COVER-KEY

$19.99

$

Usually ships in 3-6 days

0

14

Exmark 132-1832

PANEL-SWITCH MOUNT

$37.99

$

Usually ships in 3-6 days

0

15

Exmark 132-1826

SWITCH-LIGHTS

$76.99

$

Usually ships in 3-6 days

0

16

Exmark 132-1829

SWITCH

$58.99

$

Usually ships in 3-6 days

0

17

Exmark 132-1828

SWITCH-REVERSE, OVERRIDE

$65.99

$

Usually ships in 3-6 days

0

18

Exmark 132-1827

PLUG-SWITCH HOLE

$5.49

$

Usually ships in 3-6 days

0

19

Exmark 132-1935

GROMMET-LATCH, GLOVE BOX

$6.99

$

Usually ships in 3-6 days

0

20

Exmark 132-2972

COVER-GLOVE BOX

$38.99

$

Usually ships in 3-6 days

0

21

Exmark 132-1907

SCREW-SELF TAPPING

$1.49

$

Usually ships in 3-6 days

0

22

Exmark 132-2616

POD-INSTRUMENT

$58.99

$

Usually ships in 3-6 days

0

23

Exmark 132-2976

DECAL-WARNING, DASH

$41.99

$

Usually ships in 3-6 days

0

24

Exmark 132-2077

GAUGE

$730.99

$

Usually ships in 3-6 days

0

25

Exmark 132-1888

CLAMP-PLASTIC

$6.99

$

Usually ships in 3-6 days

0

26

Exmark 132-1929

NUT-HH

$1.49

$

Usually ships in 3-6 days

0

27

Exmark 132-1989

KIT-SHIFT BOOT

$34.99

$

Usually ships in 3-6 days

0
