UTS500AAC00000 - Exmark 500S Utility Vehicle (2015) Rear Drive Gearcase Assembly Parts Diagram

500S Utility Vehicle

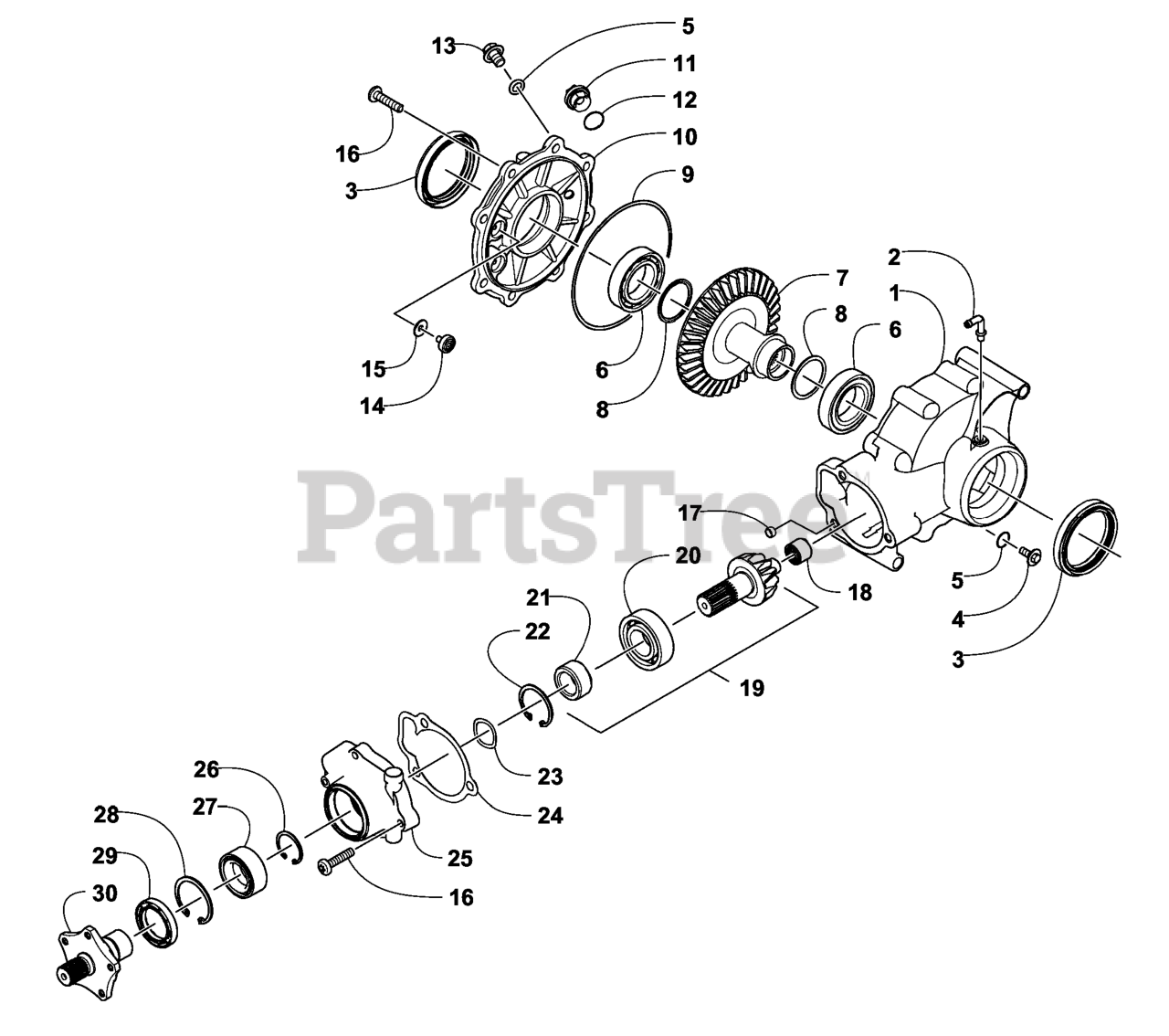

Rear Drive Gearcase Assembly Parts Diagram

  • Title

Exmark 1-323218

DISCONTINUED

$

$

Not available

1

Exmark 132-2693

HOUSING-GEARCASE, REAR

$393.99

$

Usually ships in 3-6 days

0

2

Exmark 132-2720

FITTING-BARB, 90 DEG

$58.99

$

Usually ships in 3-6 days

0

3

Exmark 132-3212

SEAL

$56.99

$

Usually ships in 3-6 days

0

4

Exmark 132-2582

PLUG-DRAIN, MAGNETIC

Note: (inc. one No. 5)

$27.99

$

Usually ships in 3-6 days

0

5

Exmark 132-1902

O-RING

$11.99

$

Usually ships in 3-6 days

0

6

Exmark 132-1769

BEARING-BALL

$24.99

$

Usually ships in 3-6 days

0

7

Exmark 132-2567

GEAR-REAR, 36T)

$451.99

$

Usually ships in 3-6 days

0

8

Exmark 132-1770

SHIM

$14.99

$

Usually ships in 3-6 days

0

8

Exmark 132-1771

SHIM

$14.99

$

Usually ships in 3-6 days

0

8

Exmark 132-1772

SHIM

$14.99

$

Usually ships in 3-6 days

0

8

Exmark 132-1773

SHIM

$16.99

$

Usually ships in 3-6 days

0

8

Exmark 132-1774

SHIM

$14.99

$

Usually ships in 3-6 days

0

9

Exmark 132-1901

O-RING

$24.99

$

Usually ships in 3-6 days

0

10

Exmark 132-2694

COVER-GEARCASE, REAR

$174.99

$

Usually ships in 3-6 days

0

11

Exmark 132-1766

PLUG-FILL

Note: (inc. 12)

$33.99

$

Usually ships in 3-6 days

0

12

Exmark 132-1903

O-RING

$5.49

$

Usually ships in 3-6 days

0

13

Exmark 132-2583

PLUG-OIL LEVEL

Note: (inc. one No. 5)

$27.99

$

Usually ships in 3-6 days

0

14

Exmark 132-1763

BUTTON-THRUST

$8.99

$

Usually ships in 3-6 days

0

15

Exmark 132-1778

SHIM

$14.99

$

Usually ships in 3-6 days

0

15

Exmark 132-1779

SHIM

$16.99

$

Usually ships in 3-6 days

0

15

Exmark 132-1780

SHIM

$16.99

$

Usually ships in 3-6 days

0

15

Exmark 132-1781

SHIM

$14.99

$

Usually ships in 3-6 days

0

15

Exmark 132-1782

SHIM

$16.99

$

Usually ships in 3-6 days

0

16

Exmark 132-1899

SCREW-TSPNH, SELF TAP

$2.99

$

Usually ships in 3-6 days

0

17

Exmark 132-1775

PIN-DOWEL

$10.99

$

Usually ships in 3-6 days

0

18

Exmark 132-1765

BEARING-NEEDLE

$24.99

$

Usually ships in 3-6 days

0

19

Exmark 132-2691

GEARPINION, 10T

Note: (inc. 20-21)

$267.99

$

Usually ships in 3-6 days

0

20

Exmark 132-1764

BEARING-BALL

$37.99

$

Usually ships in 3-6 days

0

21

Exmark 132-2608

COLLAR-RETAINING

$68.99

$

Usually ships in 3-6 days

0

22

Exmark 132-2640

RING-RETAIN, INT

$2.99

$

Usually ships in 3-6 days

0

23

Exmark 132-1789

WASHER-SPRING

$10.99

$

Usually ships in 3-6 days

0

24

Exmark 132-1786

GASKET-FLANGE

$5.49

$

Usually ships in 3-6 days

0

25

Exmark 1-322038

ARM - IDLER

$34.99

$

Usually ships in 3-6 days

0

26

Exmark 132-1937

RING-RETAINING

$25.99

$

Usually ships in 3-6 days

0

27

Exmark 132-1762

BEARING-BALL

$47.99

$

Usually ships in 3-6 days

0

28

Exmark 132-1768

RING-RETAINING, INTERNAL

$7.49

$

Usually ships in 3-6 days

0

29

Exmark 132-2587

SEAL

$37.99

$

Usually ships in 3-6 days

0

30

Exmark 132-2688

SHAFT-INPUT

$328.99

$

Usually ships in 3-6 days

0
