UTS500AAC00000 - Exmark 500S Utility Vehicle (2015) Rear Suspension Assembly Parts Diagram

500S Utility Vehicle

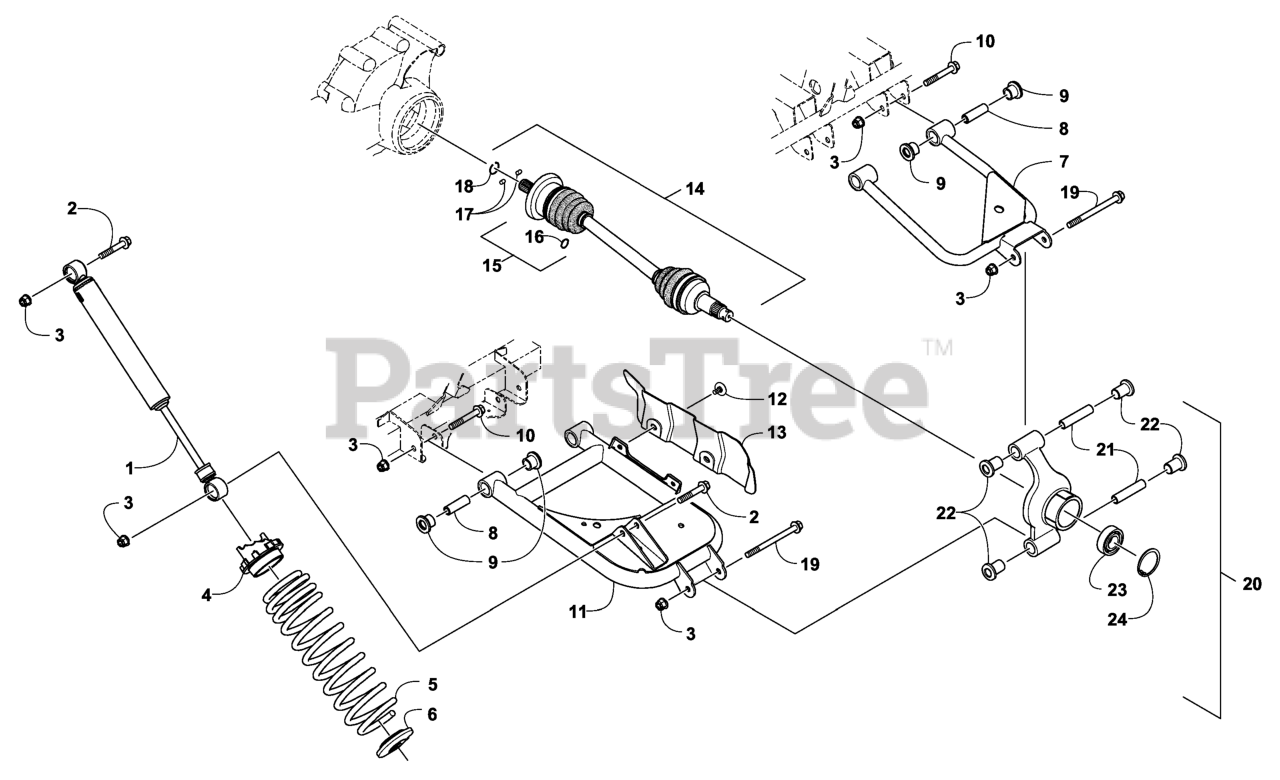

Rear Suspension Assembly Parts Diagram

  • Title

1

Exmark 1-323200

BELT,DECK DRIVE
(Superseded to 1-323200-SL)

Note: (inc. 2)

$59.99

$

Usually ships in 3-6 days

0

2

Exmark 1-323071

SPRING-EXTENSION

$15.99

$

In Stock, Qty 20+

0

3

Exmark 1-323086

DISCONTINUED (EXMARK)

$

$

Not available

4

Exmark 132-1806

ADJUSTER-CAM, SPRING

$27.99

$

Usually ships in 3-6 days

0

5

Exmark 132-3214

Spring, Suspension

$

$

Not available

6

Exmark 132-2706

RETAINER-SPRING

$14.99

$

Usually ships in 3-6 days

0

7

Exmark 132-2052

A-ARM, REAR UPPER (RH ASM

Note: (inc. two No. 8 and four No. 9)

$147.99

$

Usually ships in 3-6 days

0

7

Exmark 132-2053

A-ARM, REAR UPPER (LH ASM

Note: (inc. two No. 8 and four No. 9)

$147.99

$

Usually ships in 3-6 days

0

8

Exmark 132-1799

COLLAR-SUSPENSION BUSHING

$7.49

$

Usually ships in 3-6 days

0

9

Exmark 132-1797

BUSHING-SUSPENSION, A-ARM

$3.49

$

Usually ships in 3-6 days

0

10

Exmark 132-3072

SCREW-HFH

$2.99

$

Usually ships in 3-6 days

0

11

Exmark 132-2046

A-ARM, REAR LOWER (RH ASM

Note: (inc. two No. 8 and four No. 9)

$259.99

$

Usually ships in 3-6 days

0

11

Exmark 132-2047

A-ARM, REAR LOWER (LH ASM

Note: (inc. two No. 8 and four No. 9)

$293.99

$

Usually ships in 3-6 days

0

12

Exmark 132-1936

SCREW-SELF TAP

$1.49

$

In Stock, only 3 left!

0

13

Exmark 132-2612

GUARD-BOOT, REAR (RH)

$50.99

$

Usually ships in 3-6 days

0

13

Exmark 132-2613

GUARD-BOOT, REAR (LH)

$50.99

$

Usually ships in 3-6 days

0

14

Exmark 132-2658

KIT-HALFSHAFT REMOVAL

Note: (inc. 15-18)

$610.99

$

Usually ships in 3-6 days

0

15

Exmark 132-2661

KIT-CV BOOT, UNIVERSAL

Note: (inc. 16)

$76.99

$

Usually ships in 3-6 days

0

16

Exmark 132-2669

CIRCLI-HALFSHAFT, INTERNA

$1.99

$

Usually ships in 3-6 days

0

17

Exmark 132-2600

PIN-TRANSFER, LONG

$2.99

$

Usually ships in 3-6 days

0

18

Exmark 132-2603

CIRCLIP

$

$

Not available

19

Exmark 1-323066

DISCONTINUED (EXMARK)

$

$

Not available

20

Exmark 132-2048

KNUCKLE-REAR ASM

Note: (inc. 21-24)

$415.99

$

Usually ships in 3-6 days

0

21

Exmark 132-1798

COLLAR-SUSPENSION BUSHING

$9.99

$

Usually ships in 3-6 days

0

22

Exmark 132-1796

BUSHING-SUSPENSION, REAR

$5.49

$

Usually ships in 3-6 days

0

23

Exmark 132-2599

BEARING-WHEEL

$38.99

$

Usually ships in 3-6 days

0

24

Exmark 132-1923

RING-RETAINING

$6.49

$

Usually ships in 3-6 days

0
