UTS500AAC00000 - Exmark 500S Utility Vehicle (2015) Seat Assembly Parts Diagram

500S Utility Vehicle

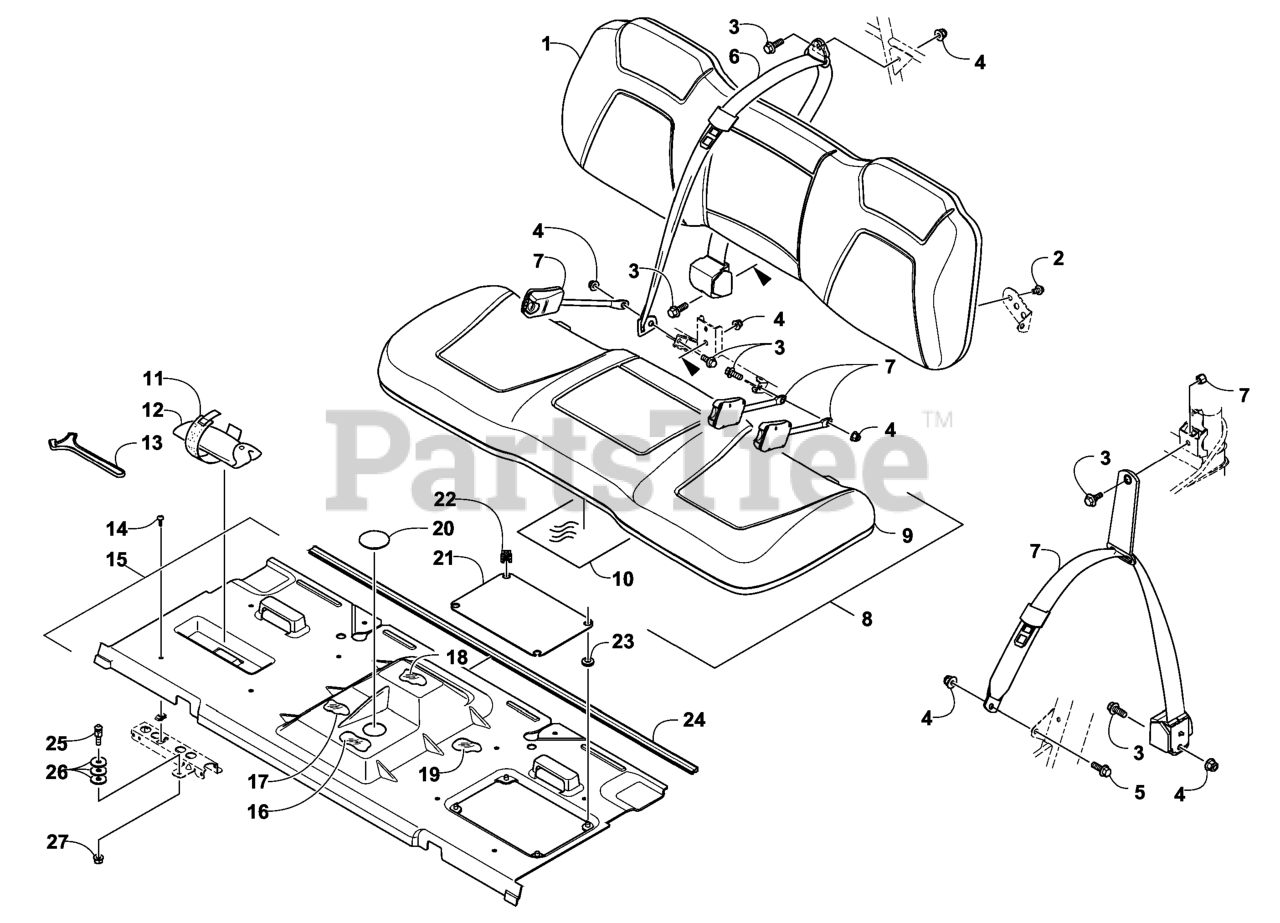

Seat Assembly Parts Diagram

  • Title
1

Exmark 1-323042

DISCONTINUED (EXMARK)

$

$

Not available

2

Exmark 132-3057

SCREW-HFH

$1.49

$

In Stock, Qty 9

0

3

Exmark 132-2648

SCREW-HFH

$5.49

$

Usually ships in 3-6 days

0

4

Exmark 132-2649

NUT-HHF, LOCK, (NI)

$2.99

$

Usually ships in 3-6 days

0

5

Exmark 1-323213

BRACKET-SWITCH, BLADE

$31.99

$

Usually ships in 3-6 days

0

6

Exmark 132-3026

BELT-SEAT, 3PT

$435.99

$

Usually ships in 3-6 days

0

7

Exmark 132-3027

BELT-SEAT, 3PT

$473.99

$

Usually ships in 3-6 days

0

8

Exmark 132-3043

SEAT-BENCH, BOTTOM W/FOIL

Note: (inc. 9-10)

$1012.99

$

Usually ships in 3-6 days

0

9

Seat, Bench

Note: Not Serviced Individually

$

$

Not available

10

Exmark 132-1860

FOIL-PROTECTIVE, SEAT

$5.49

$

Usually ships in 3-6 days

0

11

Exmark 1-322115

Retainer, Toolkit
(Superseded to 116-6131)

$948.99

$

Usually ships in 3-6 days

0

12

Exmark 132-2794

KIT-TOOL

$73.99

$

Usually ships in 3-6 days

0

13

Exmark 132-1990

WRENCH-SPANNER

$7.49

$

Usually ships in 3-6 days

0

14

$1.49

$

Usually ships in 3-6 days

0

15

Exmark 1-323025

LINKAGE,CALIPER

Note: (inc. 16-19)

$

$

Not available

16

Exmark 132-1861

SHIELD-SEATBASE (A)

$37.99

$

Usually ships in 3-6 days

0

17

Exmark 132-1865

SHIELD-SEATBASE (D)

$37.99

$

Usually ships in 3-6 days

0

18

Exmark 132-1862

SHIELD-SEATBASE (B)

$23.99

$

Usually ships in 3-6 days

0

19

Exmark 132-1863

SHIELD-SEATBASE (C)

$24.99

$

Usually ships in 3-6 days

0

20

Exmark 1-322104

DISCONTINUED

$

$

Not available

21

Exmark 132-2757

COVER-BATTERY BOX, SEATBA

$33.99

$

Usually ships in 3-6 days

0

22

Exmark 132-1942

CLIP-U NUT

$1.49

$

Usually ships in 3-6 days

0

23

Exmark 132-2709

GROMMET

$7.49

$

Usually ships in 3-6 days

0

24

Exmark 132-2729

SEAL-CARGO BOX

$100.99

$

Usually ships in 3-6 days

0

25

Exmark 132-1941

STUD-LATCH, SEAT

$19.99

$

Usually ships in 3-6 days

0

26

Exmark 132-1896

WASHER-FLAT

$1.99

$

Usually ships in 3-6 days

0

27

Exmark 132-3078

NUT-HHF

$1.49

$

Usually ships in 3-6 days

0
