UTS500AAC00000 - Exmark 500S Utility Vehicle (2015) Secondary Transmission Assembly Parts Diagram

500S Utility Vehicle

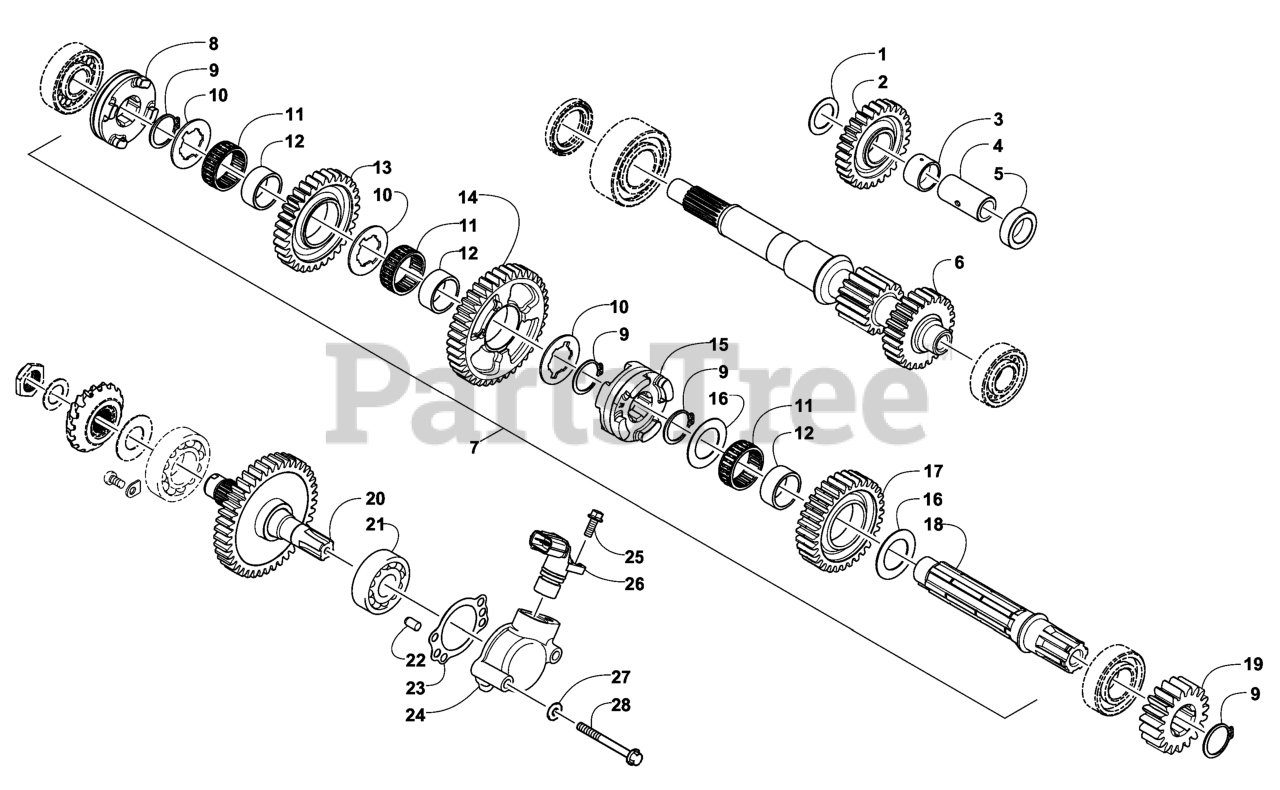

Secondary Transmission Assembly Parts Diagram

  • Title

1

Exmark 132-2432

WASHER-THRUST

$2.99

$

Usually ships in 3-6 days

0

2

Exmark 132-2295

GEAR-REVERSE IDLE, 28T

$174.99

$

Usually ships in 3-6 days

0

3

Exmark 132-2298

BUSHING-GEAR, REVERSE IDL

$27.99

$

Usually ships in 3-6 days

0

4

Exmark 132-2297

SHAFT-REVERSE IDLER

$47.99

$

Usually ships in 3-6 days

0

5

Exmark 132-2291

SPACER-REVERSE IDLE GEAR

$23.99

$

Usually ships in 3-6 days

0

6

Exmark 132-2308

SHAFT-DRIVE

$496.99

$

Usually ships in 3-6 days

0

7

Exmark 132-2922

COUNTER SHAFT ASM

Note: (inc. 8-18)

$899.99

$

Usually ships in 3-6 days

0

8

Exmark 132-2917

SHIFT-BACKWARD

$117.99

$

Usually ships in 3-6 days

0

9

Exmark 132-2834

CLIP-CIR

$2.99

$

Usually ships in 3-6 days

0

10

Exmark 132-2827

WASHER-SPLINE

$2.99

$

Usually ships in 3-6 days

0

11

Exmark 132-2544

BEARING-NEEDLE, ROLLER

$37.99

$

Usually ships in 3-6 days

0

12

Exmark 132-2296

BUSHING

$23.99

$

Usually ships in 3-6 days

0

13

Exmark 132-2918

GEAR-DRIVEN, BACKWARD (32

$235.99

$

Usually ships in 3-6 days

0

14

Exmark 132-2919

GEAR-DRIVEN, LOWER (40T)

$280.99

$

Usually ships in 3-6 days

0

15

Exmark 132-2920

SHAFT-FORWARD, LOW

$162.99

$

Usually ships in 3-6 days

0

16

Exmark 132-2826

WASHER-THRUST

$2.99

$

Usually ships in 3-6 days

0

17

Exmark 132-2921

GEAR-DRIVEN, FORWARD (32T

$259.99

$

Usually ships in 3-6 days

0

18

Exmark 132-2289

COUNTERSHAFT

$155.99

$

Usually ships in 3-6 days

0

19

Exmark 132-2290

GEAR-DRIVEN, NO. 2

$157.99

$

Usually ships in 3-6 days

0

20

Exmark 132-2288

SHAFT-OUTPUT

$428.99

$

Usually ships in 3-6 days

0

21

Exmark 132-2839

BEARING-BALL, RADIAL

$37.99

$

Usually ships in 3-6 days

0

22

Exmark 132-2817

ROLLER

$2.99

$

Usually ships in 3-6 days

0

23

Exmark 132-2497

GASKET-SPEEDO

$5.49

$

Usually ships in 3-6 days

0

24

Exmark 132-2300

HOUSING-SPEEDO SENSOR

$33.99

$

Usually ships in 3-6 days

0

25

Exmark 132-2812

BOLT-FLANGE

$

$

Not available

26

Exmark 132-2927

SENSOR-SPEED

$362.99

$

Usually ships in 3-6 days

0

27

Exmark 132-2496

SEAL-FASTENER

$5.49

$

Usually ships in 3-6 days

0

28

Exmark 132-2816

BOLT-FLANGE

$1.49

$

Usually ships in 3-6 days

0
