UTS500AAC00000 - Exmark 500S Utility Vehicle (2015) Wheel And Tire Assembly Parts Diagram

500S Utility Vehicle

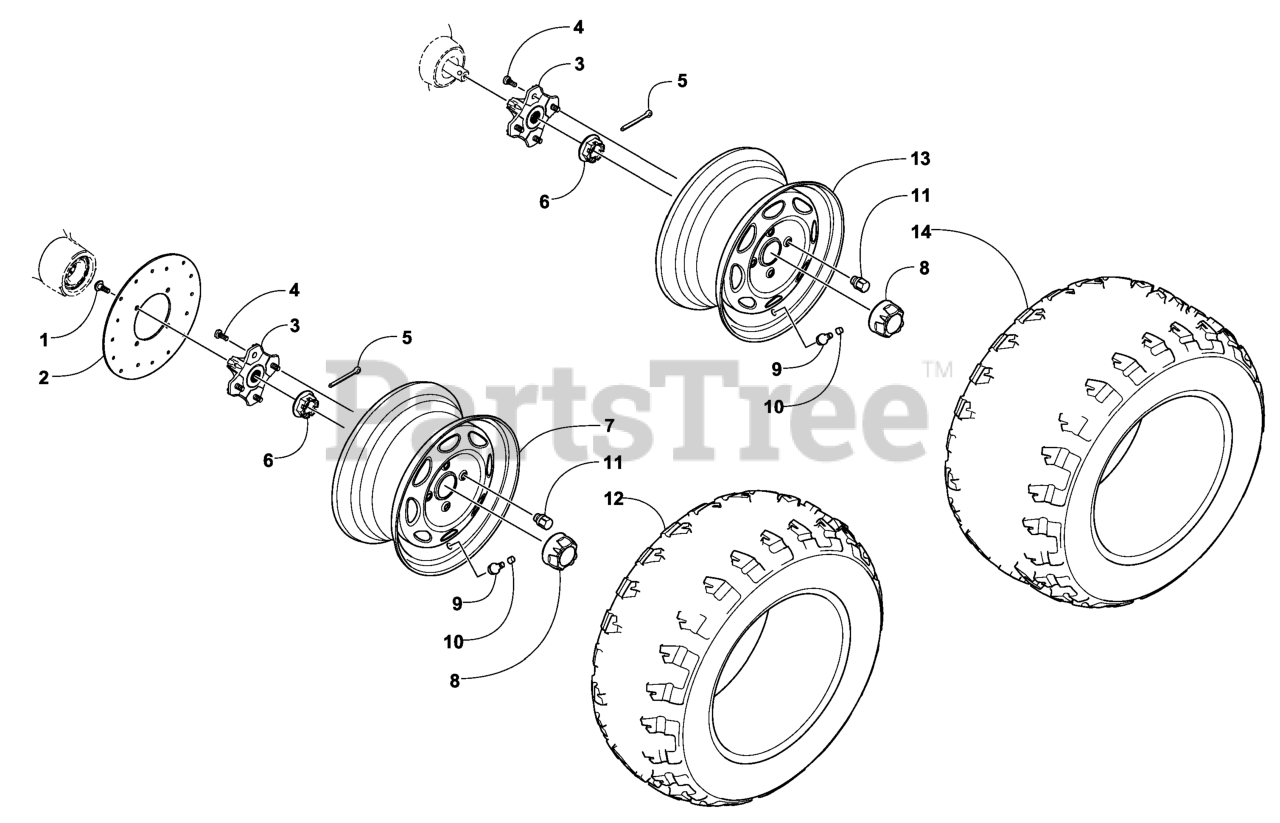

Wheel And Tire Assembly Parts Diagram

  • Title

1

Exmark 132-1939

SCREW-SHOULDER

$1.49

$

Usually ships in 3-6 days

0

2

Exmark 132-2660

KIT-BRAKE DISC

$76.99

$

Usually ships in 3-6 days

0

3

Exmark 132-2679

HUB ASM

Note: (inc. 4)

$248.99

$

Usually ships in 3-6 days

0

3

Exmark 132-2680

HUB ASM

Note: (inc. 4)

$248.99

$

Usually ships in 3-6 days

0

4

Exmark 132-1788

STUD-WHEEL

$5.49

$

Usually ships in 3-6 days

0

5

Exmark 132-1917

PIN-COTTER

$1.49

$

In Stock, only 1 left!

0

6

Exmark 132-1944

NUT-HHF, CASTLE

$8.99

$

Usually ships in 3-6 days

0

7

Exmark 132-2597

WHEEL-FRONT

$228.99

$

Usually ships in 3-6 days

0

8

Exmark 132-1801

CAP-WHEEL

$16.99

$

Usually ships in 3-6 days

0

9

Exmark 132-1760

VALVE STEM

Note: (inc. 10)

$5.49

$

Usually ships in 3-6 days

0

10

Exmark 132-1761

CAP-VALVE STEM
(Superseded to 132-1760)

$5.49

$

Usually ships in 3-6 days

0

11

Exmark 132-1918

NUT-LUG

$1.49

$

Usually ships in 3-6 days

0

12

Exmark 132-2606

TIRE (26 X 9 R14)

$292.99

$

Usually ships in 3-6 days

0

13

Exmark 132-2598

WHEEL-REAR

$228.99

$

Usually ships in 3-6 days

0

14

Exmark 132-2607

TIRE (26 X 11 R14)

$305.99

$

Usually ships in 3-6 days

0
