UTS700AAC00000 - Exmark 700S Utility Vehicle (2015) Console, Floor Panel & Storage Box Assembly Parts Diagram

700S Utility Vehicle

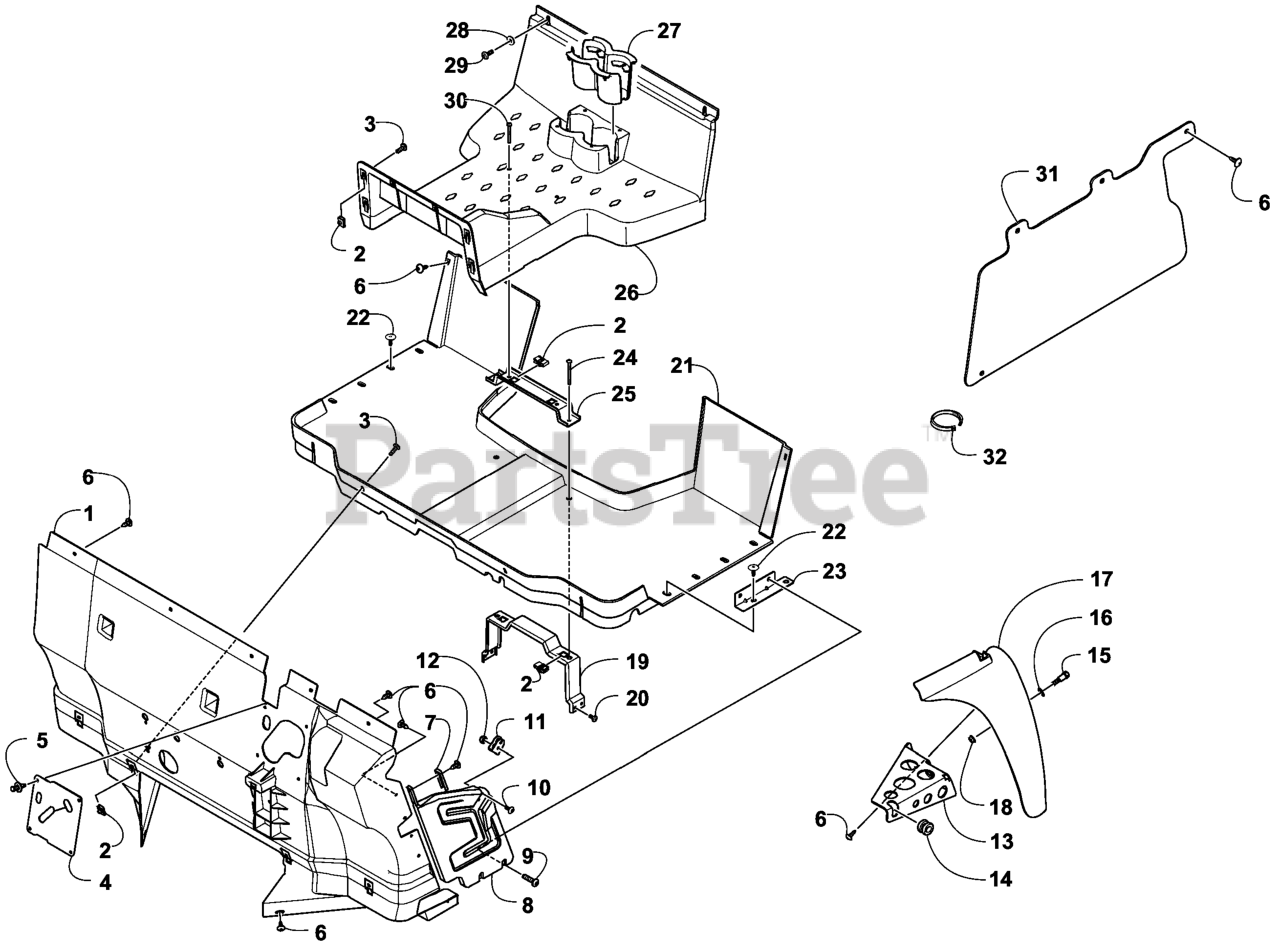

Console, Floor Panel & Storage Box Assembly Parts Diagram

  • Title

1

Exmark 132-2793

PANEL-INNER FENDER

$

$

Not available

2

Exmark 132-1942

CLIP-U NUT

$

$

Not available

3

Exmark 132-1945

SCREW

$

$

Not available

4

Exmark 132-1815

BOOT-STEERING

$

$

Not available

5

Exmark 132-2101

RIVET-PLASTIC, REINSTALLA

$

$

Not available

6

Exmark 132-2107

SCREW-TSTRH, SELFTAP

$1.49

$

In Stock, Qty 6

0

7

Exmark 132-2988

BRACKET-KICK PANEL

$

$

Not available

8

Exmark 132-2764

PANEL-SIDE KICK

$

$

Not available

9

Exmark 132-3092

SCREW-TSPNH

$1.49

$

Usually ships in 3-6 days

0

10

Exmark 132-1922

SCREW-TSPRH

$

$

Not available

11

Exmark 132-2763

TONGUE-BUCKLE

$25.99

$

Usually ships in 3-6 days

0

12

Exmark 132-2096

NUT-LOCK

$1.49

$

Usually ships in 3-6 days

0

13

Exmark 132-2773

BRACKET-SUPPORT, RH

$68.99

$

Usually ships in 3-6 days

0

13

Exmark 132-2774

BRACKET-SUPPORT, LH

$

$

Not available

14

Exmark 132-1925

GROMMET-GAUGE MOUNT

$

$

Not available

15

Exmark 132-2109

SCREW-HEX,DOME HEAD SHLDR

$

$

Not available

16

Exmark 132-3049

WASHER-FLAT

$

$

Not available

17

Exmark 132-2970

FENDER-FRONT, RH

$

$

Not available

17

Exmark 132-2971

FENDER-FRONT, LH

$200.99

$

Usually ships in 3-6 days

0

18

Exmark 132-3048

NUT-HHF,TOP LOCK

$

$

Not available

19

Exmark 132-2780

BRACKET-SUPPORT, FLOOR

$

$

Not available

20

Exmark 132-3105

SCREW-TSPRH

$

$

Not available

21

Exmark 132-2734

FLOOR

$

$

Not available

22

Exmark 132-1936

SCREW-SELF TAP

$1.99

$

In Stock, only 3 left!

0

23

Exmark 132-2980

BRACKET-KICK PANEL, RH

$

$

Not available

23

Exmark 132-2981

BRACKET-KICK PANEL, LH

$

$

Not available

24

Exmark 1-323098

DISCONTINUED

$

$

Not available

25

Exmark 132-2756

BRACKET-MOUNT, SUBFLOOR

$

$

Not available

26

Exmark 132-2754

FLOOR-SUB

$

$

Not available

27

Exmark 132-2736

GROMMET-CUPHOLDER

$85.99

$

Usually ships in 3-6 days

0

28

Exmark 132-3087

WASHER-FLAT

$

$

Not available

29

Exmark 1-323108

DISCONTINUED (EXMARK)

$

$

Not available

30

Exmark 132-3096

SCREW-TSPNH

$

$

Not available

31

Exmark 132-2966

PANEL-SPLASH, REAR

$

$

Not available

32

Exmark 132-1753

TIE-CABLE

$

$

Not available
