UTS700AAC00000 - Exmark 700S Utility Vehicle (2015) Front Suspension Assembly Parts Diagram

700S Utility Vehicle

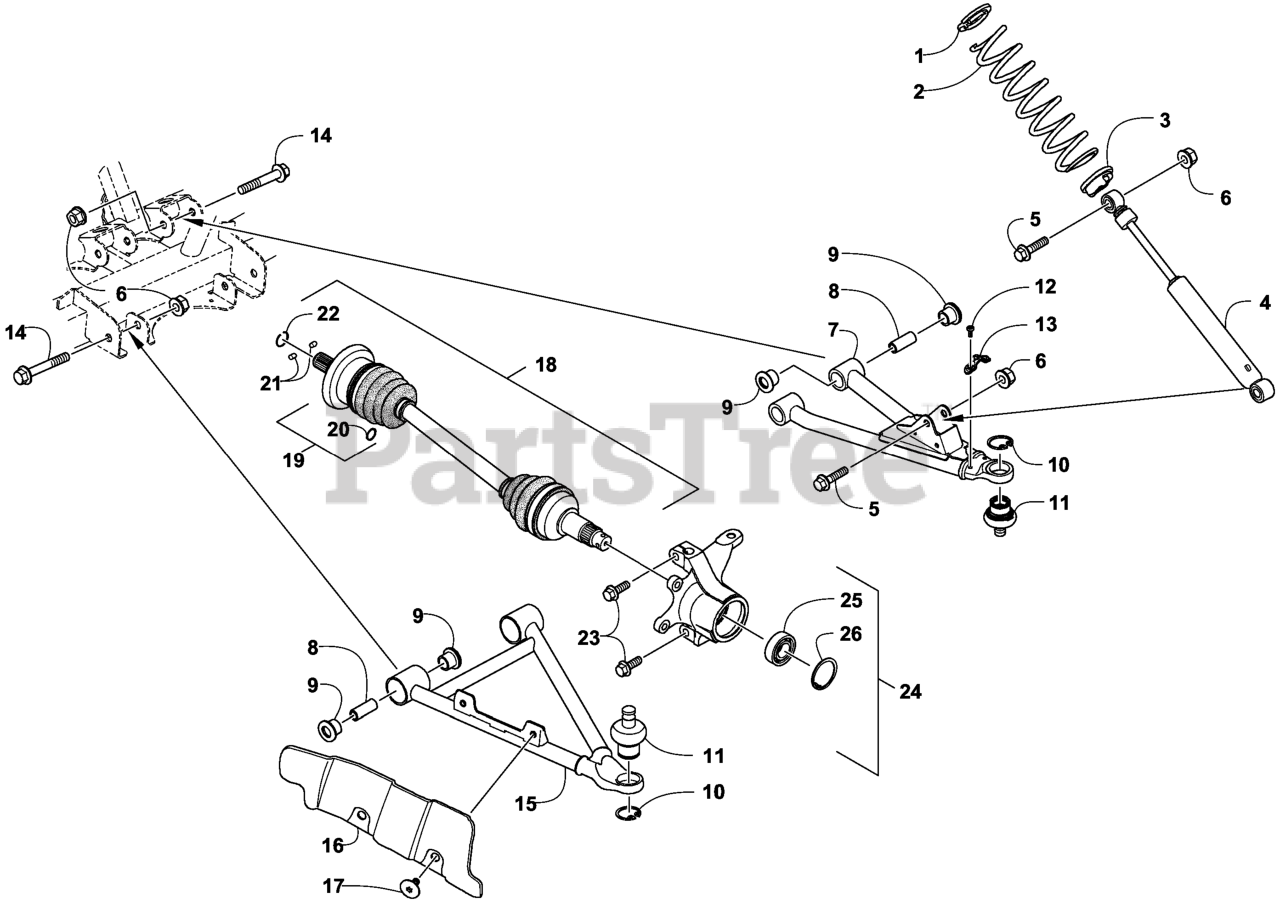

Front Suspension Assembly Parts Diagram

  • Title

1

Exmark 132-2706

RETAINER-SPRING

$14.99

$

Usually ships in 3-6 days

0

2

Exmark 132-1794

SPRING-COIL

$58.99

$

Usually ships in 3-6 days

0

3

Exmark 132-1806

ADJUSTER-CAM, SPRING

$27.99

$

Usually ships in 3-6 days

0

4

Exmark 132-3199

SHOCK ABSORBER

$178.99

$

Usually ships in 3-6 days

0

5

Exmark 1-323070

DISCONTINUED

$

$

Not available

6

Exmark 1-323086

DISCONTINUED (EXMARK)

$

$

Not available

7

Exmark 1-322044

1-322173
(Superseded to 1-322173)

Note: (inc. two No. 8, four No. 9, and one No. 10-11)

$

$

Not available

7

Exmark 132-2045

A-ARM, FRONT UPPER (LH AS

Note: (inc. two No. 8, four No. 9, and one No. 10-11)

$293.99

$

Usually ships in 3-6 days

0

8

Exmark 132-1799

COLLAR-SUSPENSION BUSHING

$7.49

$

Usually ships in 3-6 days

0

9

Exmark 132-1797

BUSHING-SUSPENSION, A-ARM

$3.49

$

Usually ships in 3-6 days

0

10

Exmark 132-1889

CLIP-BALL JOINT

$

$

Not available

11

Exmark 132-1818

BALLJOINT ASM (DOUBLE STA

$51.99

$

Usually ships in 3-6 days

0

12

Exmark 132-1965

SCREW-TSPNH, SELFTAP

$1.49

$

Usually ships in 3-6 days

0

13

Exmark 132-2682

CLIP-BRAKE HOSE

$2.99

$

Usually ships in 3-6 days

0

14

Exmark 132-3072

SCREW-HFH

$2.99

$

Usually ships in 3-6 days

0

15

Exmark 1-322042

1-302228
(Superseded to 1-302228)

Note: (inc. two No. 8, four No. 9, and one No. 10-11)

$

$

Not available

15

Exmark 132-2043

A-ARM, FRONT LOWER (LH AS

Note: (inc. two No. 8, four No. 9, and one No. 10-11)

$362.99

$

Usually ships in 3-6 days

0

16

Exmark 132-2610

GUARD-BOOT, RH

$50.99

$

Usually ships in 3-6 days

0

16

Exmark 132-2611

GUARD-BOOT, LH

$50.99

$

Usually ships in 3-6 days

0

17

Exmark 132-1936

SCREW-SELF TAP

$1.49

$

In Stock, only 3 left!

0

18

Exmark 1-323216

DISCONTINUED (EXMARK)

Note: (inc. 19-22)

$

$

Not available

19

Exmark 132-2661

KIT-CV BOOT, UNIVERSAL

Note: (inc. 20)

$76.99

$

Usually ships in 3-6 days

0

20

Exmark 132-2669

CIRCLI-HALFSHAFT, INTERNA

$1.99

$

Usually ships in 3-6 days

0

21

Exmark 132-2601

PIN-TRANSFER, SHORT

$2.99

$

Usually ships in 3-6 days

0

22

Exmark 132-2602

CIRCLIP

$1.99

$

Usually ships in 3-6 days

0

23

Exmark 132-1966

SCREW-SHLDR

$3.49

$

Usually ships in 3-6 days

0

24

Exmark 132-2054

KNUCKLE-STEERING, RH ASM

Note: (inc. one No. 25-26)

$333.99

$

Usually ships in 3-6 days

0

24

Exmark 1-322055

1-322079-01
(Superseded to 1-322079-01)

Note: (inc. one No. 25-26)

$

$

Not available

25

Exmark 132-2599

BEARING-WHEEL

$38.99

$

Usually ships in 3-6 days

0

26

Exmark 132-1923

RING-RETAINING

$6.49

$

Usually ships in 3-6 days

0
