UTS700AAC00000 - Exmark 700S Utility Vehicle (2015) Gas Tank Assembly Parts Diagram

700S Utility Vehicle

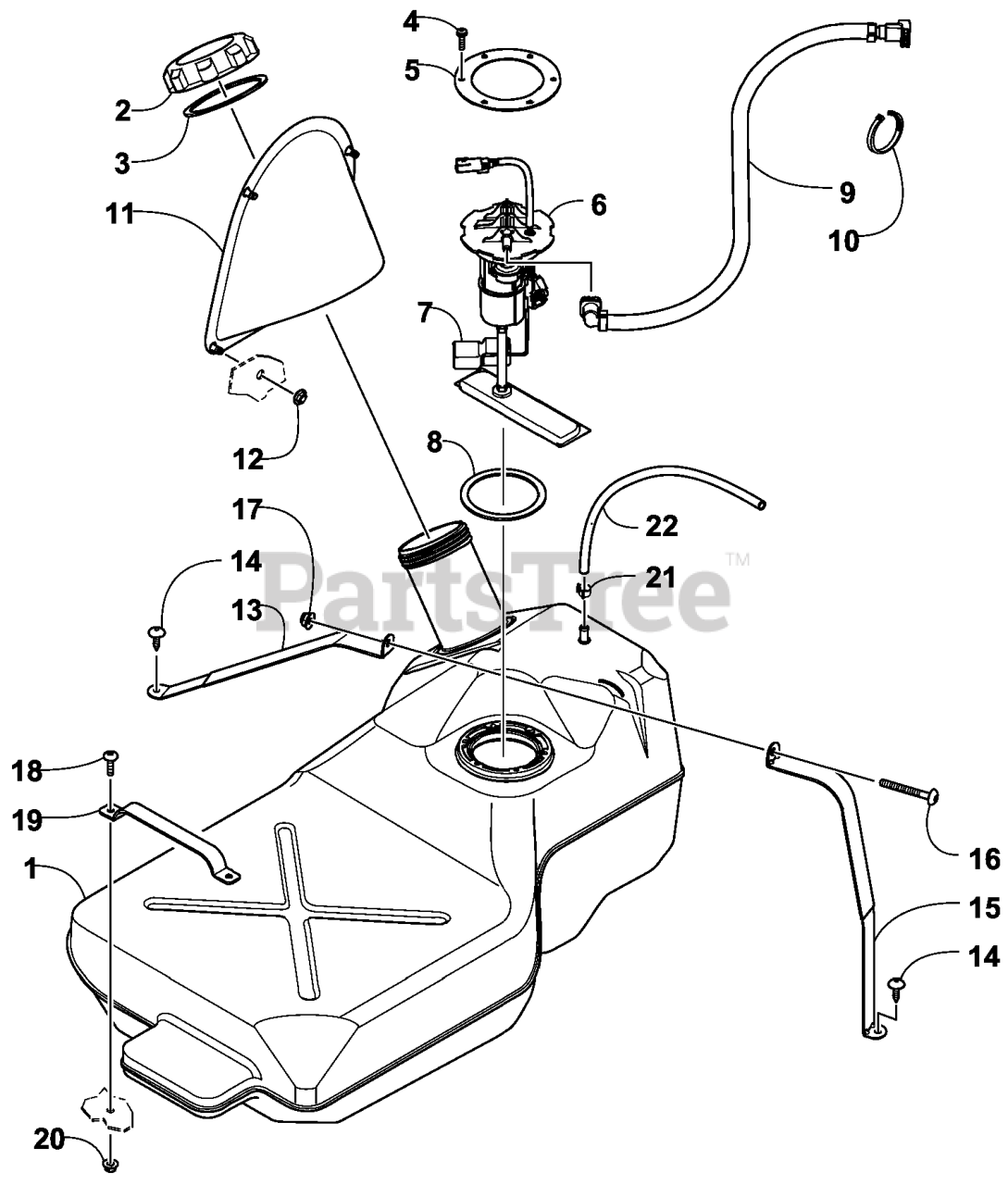

Gas Tank Assembly Parts Diagram

  • Title

1

Exmark 132-2082

FUEL TANK ASM

Note: (inc. 2-5)

$730.99

$

Usually ships in 3-6 days

0

2

Exmark 132-1999

CAP-FUEL

Note: (inc. 3)

$63.99

$

Usually ships in 3-6 days

0

3

Exmark 132-2714

SEALCAP, GAS

$34.99

$

Usually ships in 3-6 days

0

4

Exmark 132-1960

SCREW-TSPH, TF

$1.49

$

In Stock, only 1 left!

0

5

Exmark 132-2798

MOUNT-PUMP, FUEL

$8.99

$

Usually ships in 3-6 days

0

6

Exmark 1-322084

1-322163
(Superseded to 1-322163)

Note: (inc. 7-8)

$

$

Not available

7

Exmark 132-2799

FLOAT-FUEL PUMP

$9.99

$

Usually ships in 3-6 days

0

8

Exmark 1-322011

1-322079-01
(Superseded to 1-322079-01)

$

$

Not available

9

Exmark 1-322003

DISCONTINUED (EXMARK)

$

$

Not available

10

Exmark 132-1753

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

11

Exmark 132-2619

INSERT-FUEL CAP

$27.99

$

Usually ships in 3-6 days

0

12

Exmark 132-1910

NUT-STAMPED

$1.49

$

Usually ships in 3-6 days

0

13

Exmark 1-322008

1-322047-03
(Superseded to 1-322047-03)

$

$

Not available

14

Exmark 132-2107

SCREW-TSTRH, SELFTAP

$1.49

$

In Stock, Qty 6

0

15

Exmark 132-2009

STRAP-FUEL TANK

$41.99

$

Usually ships in 3-6 days

0

16

Exmark 1-323109

JACKSHAFT

$

$

Not available

17

Exmark 1-323084

LINKAGE,LOWER CALIPER RH

$21.99

$

In Stock, only 1 left!

0

18

Exmark 132-3105

SCREW-TSPRH

$1.49

$

Usually ships in 3-6 days

0

19

Exmark 132-2000

BRACKET-MOUNT, FUEL TANK

$23.99

$

Usually ships in 3-6 days

0

20

Exmark 132-2094

NUT-HH, SEMS

$1.49

$

Usually ships in 3-6 days

0

21

Exmark 132-1951

CLAMP-SNAP

$2.99

$

Usually ships in 3-6 days

0

22

Exmark 132-1833

HOSE-FUEL

$87.99

$

Usually ships in 3-6 days

0
