UTS700AAC00000 - Exmark 700S Utility Vehicle (2015) Secondary Drive Assembly Parts Diagram

700S Utility Vehicle

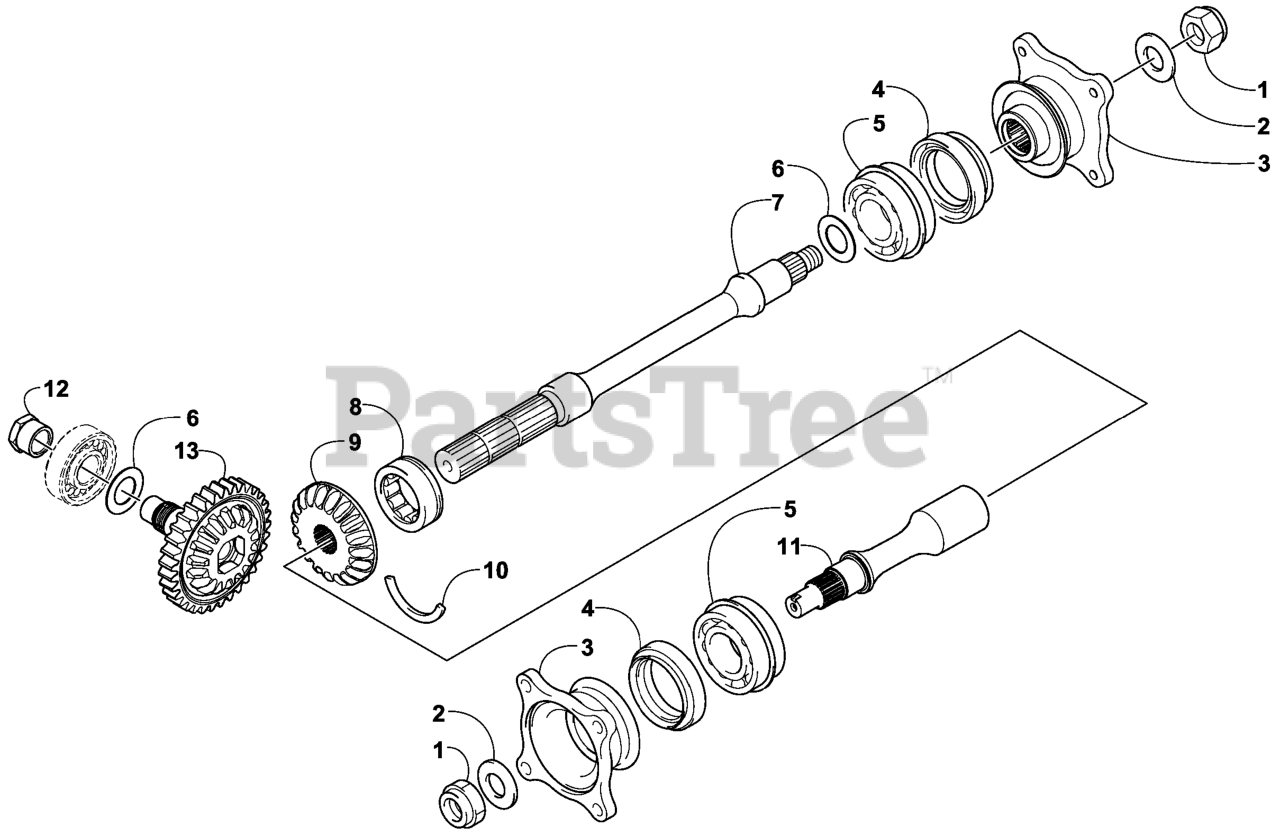

Secondary Drive Assembly Parts Diagram

  • Title

1

Exmark 132-2395

NUT-HH, SHOULDER

$5.49

$

In Stock, only 1 left!

0

2

Exmark 132-2412

WASHER-STEEL

$5.49

$

In Stock, only 1 left!

0

3

Exmark 132-2271

FLANGE-OUTPUT JOINT, REAR

$96.99

$

Usually ships in 3-6 days

0

4

Exmark 132-2476

SEAL-OIL, DRIVEN SHAFT

$10.99

$

Usually ships in 3-6 days

0

5

Exmark 132-2539

BEARING-DRIVEN, SHAFT

$153.99

$

Usually ships in 3-6 days

0

6

Exmark 132-2413

SHIM

$2.99

$

In Stock, only 1 left!

0

6

Exmark 132-2414

SHIM

$23.99

$

Usually ships in 3-6 days

0

6

Exmark 132-2415

SHIM

$23.99

$

Usually ships in 3-6 days

0

6

Exmark 132-2416

SHIM

$23.99

$

Usually ships in 3-6 days

0

6

Exmark 132-2417

SHIM

$23.99

$

Usually ships in 3-6 days

0

6

Exmark 132-2418

SHIM

$23.99

$

Usually ships in 3-6 days

0

6

Exmark 132-2419

SHIM

$23.99

$

Usually ships in 3-6 days

0

6

Exmark 132-2420

SHIM

$23.99

$

Usually ships in 3-6 days

0

6

Exmark 132-2421

SHIM

$23.99

$

Usually ships in 3-6 days

0

7

Exmark 132-2280

SHAFT-DRIVE, SECONDARY (1

$245.99

$

Usually ships in 3-6 days

0

8

Exmark 132-2538

BEARING-DRIVEN, GEAR

$71.99

$

Usually ships in 3-6 days

0

9

Exmark 132-2301

GEAR-DRIVEN, SECONDARY

$181.99

$

Usually ships in 3-6 days

0

10

Exmark 132-2272

RING-DRIVEN BEARING

$40.99

$

Usually ships in 3-6 days

0

11

Exmark 132-2278

SHAFT-SECONDARY DRIVEN, R

$113.99

$

Usually ships in 3-6 days

0

12

Exmark 132-2402

NUT

$16.99

$

Usually ships in 3-6 days

0

13

Exmark 132-2309

GEAR-SECONDARY

$367.99

$

Usually ships in 3-6 days

0
