UTS700AAC00000 - Exmark 700S Utility Vehicle (2015) Tilt Frame Assembly Parts Diagram

700S Utility Vehicle

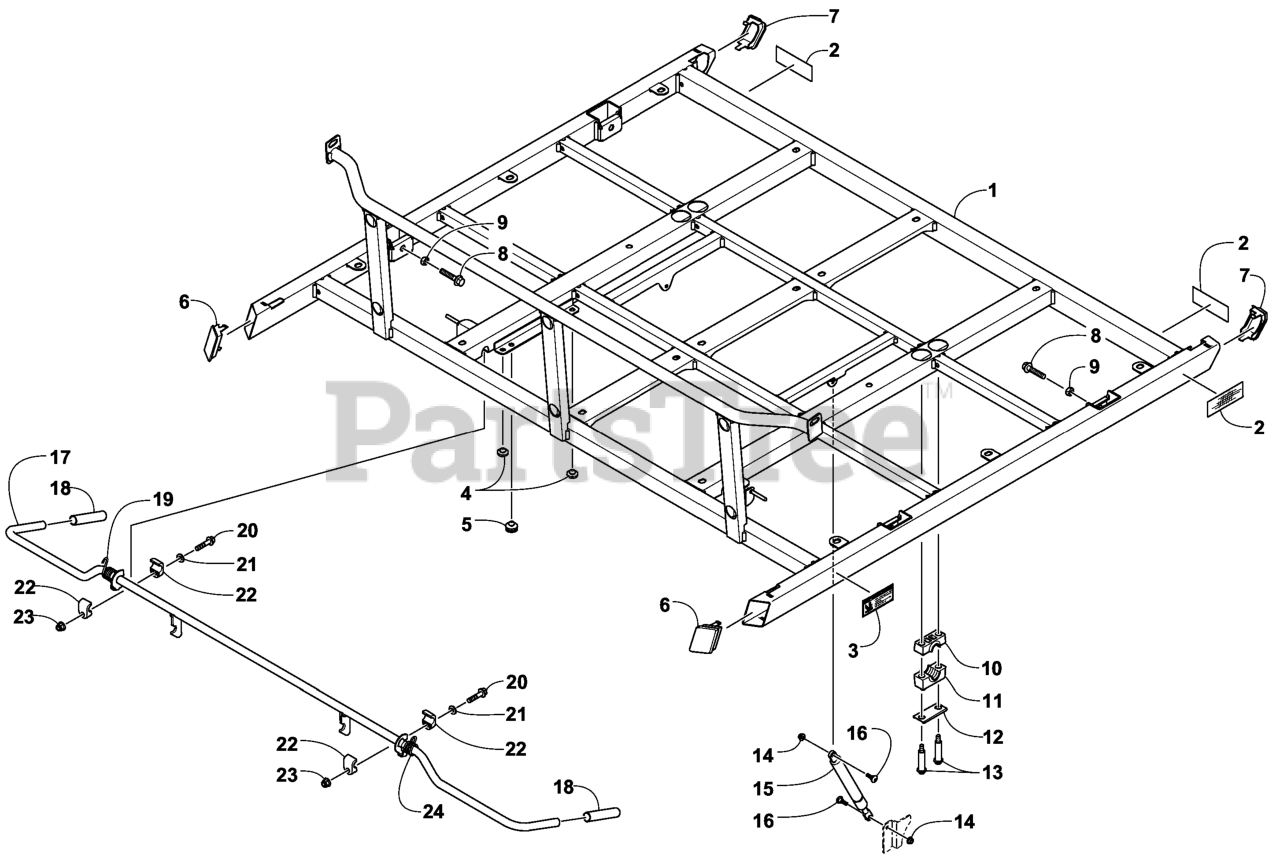

Tilt Frame Assembly Parts Diagram

  • Title

1

Exmark 132-2787

FRAME-FLATBED

$1457.99

$

Usually ships in 3-6 days

0

2

Exmark 132-2730

REFLECTOR-REAR

$8.99

$

Usually ships in 3-6 days

0

3

Exmark 132-2622

DECAL-WARNING, PINCH POIN

$7.49

$

Usually ships in 3-6 days

0

4

Exmark 132-1819

BUMPER-SEAT

$5.49

$

Usually ships in 3-6 days

0

5

Exmark 132-2638

BUMPER-CARGO BOX

$14.99

$

Usually ships in 3-6 days

0

6

Exmark 132-2740

CAP-FRONT, RH

$38.99

$

Usually ships in 3-6 days

0

6

Exmark 132-2741

CAP-FRONT, LH

$38.99

$

Usually ships in 3-6 days

0

7

Exmark 132-2738

CAP-REAR, RH

$38.99

$

Usually ships in 3-6 days

0

7

Exmark 132-2739

CAP-REAR, LH

$38.99

$

Usually ships in 3-6 days

0

8

Exmark 132-2629

SCREW-HFH

$5.49

$

Usually ships in 3-6 days

0

9

Exmark 1-323076

DISCONTINUED (EXMARK)

$

$

Not available

10

Exmark 132-1808

HOUSING-UPPER

$9.99

$

Usually ships in 3-6 days

0

11

Exmark 132-1807

HOUSING-LOWER

$14.99

$

Usually ships in 3-6 days

0

12

Exmark 132-1810

CAP-HOUSING

$50.99

$

Usually ships in 3-6 days

0

13

Exmark 132-1931

SCREW-SHOULDER

$2.99

$

Usually ships in 3-6 days

0

14

Exmark 132-2096

NUT-LOCK

$1.49

$

Usually ships in 3-6 days

0

15

Exmark 132-2775

SUPPORT-LIFT

$96.99

$

Usually ships in 3-6 days

0

16

Exmark 132-1909

SCREW-SHOULDER

$1.49

$

Usually ships in 3-6 days

0

17

Exmark 132-2788

LATCH-TILT

$170.99

$

Usually ships in 3-6 days

0

18

Exmark 132-2618

GRIP-LATCH ROD

$5.49

$

Usually ships in 3-6 days

0

19

Exmark 132-2752

SPRING-LATCH, RH

$19.99

$

Usually ships in 3-6 days

0

20

Exmark 132-3062

SCREW-HFH

$1.49

$

Usually ships in 3-6 days

0

21

Exmark 132-1898

WASHER

$1.49

$

Usually ships in 3-6 days

0

22

Exmark 132-2615

BUSHING-PIVOT

$7.49

$

Usually ships in 3-6 days

0

23

Exmark 132-3085

NUT-HHF, LOCK, (NI)

$1.49

$

Usually ships in 3-6 days

0

24

Exmark 132-2753

SPRING-LATCH, LH

$19.99

$

Usually ships in 3-6 days

0
