UV 1621BV (85668) - Snapper Turf Cruiser Utility Vehicle, 16hp Briggs & Stratton WHEEL GROUP (TURF & TRAIL TIRE) Parts Diagram

Turf Cruiser Utility Vehicle, 16hp Briggs & Stratton

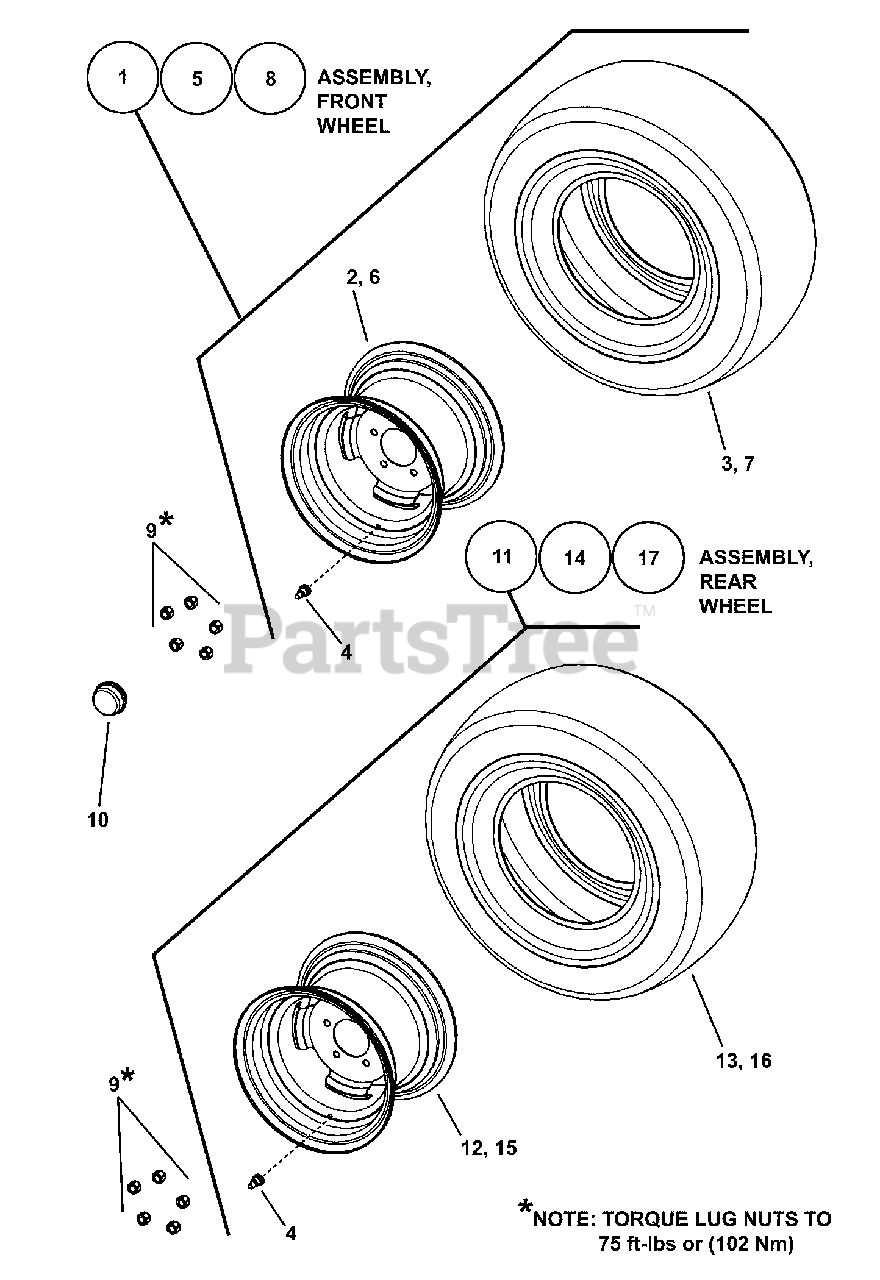

WHEEL GROUP (TURF & TRAIL TIRE) Parts Diagram

  • Title

1

Snapper 7063254

ASSY, Front Wheel, Turf Tire (incl. Ref. #'s 2, 3 & 4)
(Superseded to 7063254YP)

Note: used on UV & UVG

$327.99

$

Usually ships in 2-12 days

0

2

Snapper 7073568

RIM, 12 x 7.00 w/ 1.06 Inset

$

$

Not available

3

Snapper 7073005

TIRE, Titan Multi Trac C/S, 23 x 8.50-12
(Superseded to 7073005YP)

$239.99

$

Usually ships in 2-12 days

0

4

Snapper 7012234

AIR VALVE (Snap-In)
(Superseded to 7012234SM)

$6.99

$

In Stock, Qty 8

0

5

Snapper 7050532

ASSY, Left Front Wheel (incl. Ref #'s 4, 6 & 7)
(Superseded to 7050532YP)

Note: used on UVGT or UVGC

$444.99

$

Usually ships in 2-12 days

0

6

Snapper 7078080

RIM, 10 x 6 w/1.06 Offset
(Superseded to 7078080YP)

$181.99

$

Usually ships in 2-12 days

0

7

Snapper 7073194

TIRE, ATV 22 x 11 - 10 (Dirt Dog) Kenda Tire
(Superseded to 7073194YP)

$

$

Not available

8

Snapper 7050533

ASSY, Right Front Wheel (incl. Ref. #'s 4, 6 & 7)
(Superseded to 7050533YP)

Note: used on UVGT or UVGC

$444.99

$

Usually ships in 2-12 days

0

9

Snapper 7027192

LUG NUT, 1/2-20 Hex (tapered seat)
(Superseded to 7027192SM)

Note: also shown in Front Suspension and CVT Axle Groups

$

$

Not available

10

Snapper 7073120

DUST CAP
(Superseded to 7073120YP)

$18.99

$

In Stock, only 1 left!

0

11

Snapper 7063257

ASSY, Rear Wheel, Turf Tire (incl. Ref. #'s 4, 12 & 13)

Note: used on UV & UVG

$

$

Not available

12

Snapper 7073569

RIM, 12 x 8.50 w/ .95 Offset

$

$

Not available

13

Snapper 7072888

TIRE, Titan Multi Trac C/S, 26 x 12.00-12, 4P
(Superseded to 7072888YP)

$315.99

$

Usually ships in 2-12 days

0

14

Snapper 7050530

ASSY, Left Rear Wheel (incl. Ref. #'s 4, 15 & 16)
(Superseded to 7050530YP)

Note: used on UVGT or UVGC

$500.99

$

Usually ships in 2-12 days

0

15

Snapper 7078081

RIM, 10 x 6 w/1.25 Offset
(Superseded to 7078081YP)

$175.99

$

Usually ships in 2-12 days

0

16

Snapper 7073195

TIRE, ATV 25 x 12 - 10 (Dirt Dog) Kenda Tire
(Superseded to 7073195YP)

$315.99

$

Usually ships in 2-12 days

0

17

Snapper 7050531

ASSY, Right Rear Wheel (incl. Ref. #'s 4, 15 & 16)
(Superseded to 7050531YP)

Note: used on UVGT or UVGC

$479.99

$

Usually ships in 2-12 days

0
