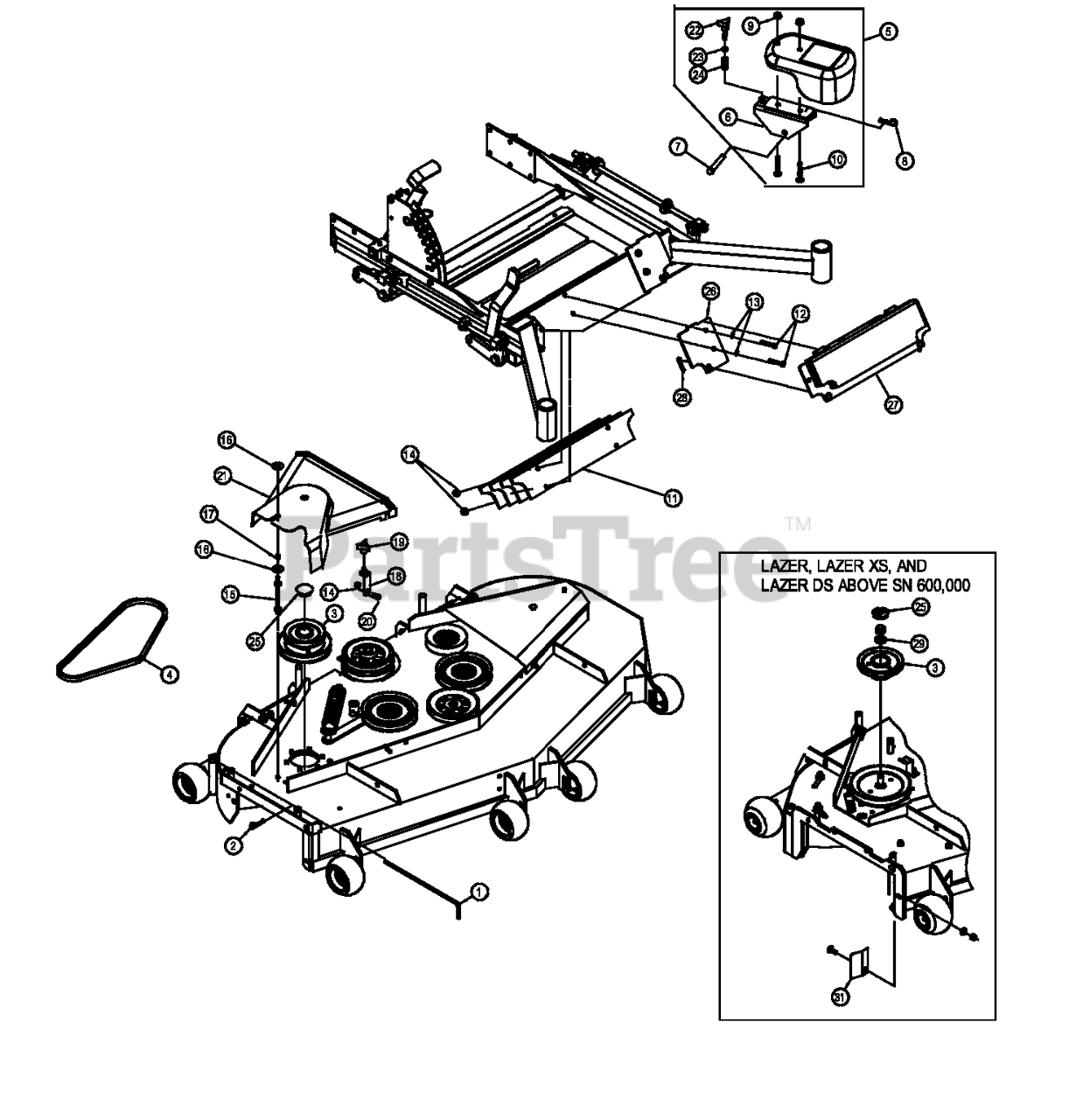

UV60 (UV6672) - Exmark Ultra Vac Bagger for Lazer Z Mower (SN: 402082300 - 404314158) (2018) Weight And Belt Drive Components - Lazer XS & Lazer DS above SN 600,000 66" Parts Diagram

Ultra Vac Bagger for Lazer Z Mower

Weight And Belt Drive Components - Lazer XS & Lazer DS above SN 600,000 66" Parts Diagram

  • Title

1

Exmark 109-3458

Pin, Chute Pivot

$17.99

$

Usually ships in 3-6 days

0

2

Exmark 1-806003

Hairpin, Cotter

$1.49

$

In Stock, Qty 20+

0

Exmark 109-1216

Sheave 66 Triton

$198.99

$

Usually ships in 3-6 days

0

Exmark 103-0867

Belt, Blower Drive
(Superseded to 103-0867-SL)

$33.99

$

In Stock, only 2 left!

0

Exmark 103-0902

Weight, 43lb w/ 2.0" bracket

$480.99

$

Usually ships in 3-6 days

0

6

Exmark 103-2180-01

Wld, Weight Bracket 2.0

$85.99

$

Usually ships in 3-6 days

0

7

Exmark 283-69

Pin, Clevis

$10.99

$

In Stock, only 4 left!

0

8

Exmark 1-806005

Hairpin, Cotter

$2.99

$

In Stock, Qty 20+

0

9

Exmark 3290-357

Nut, Whizlock 3/8-16

$0.99

$

In Stock, Qty 20+

0

10

Exmark 103-2500

Screw, Sq Head 3/8-16 x 2 1/2

$2.99

$

Usually ships in 3-6 days

0

11

Exmark 103-1425-01

Plate, Weight

$42.99

$

Usually ships in 3-6 days

0

12

Exmark 322-9

Screw, HH 5/16 -18 x 1 3/4

$3.49

$

In Stock, Qty 13

0

13

Exmark 3256-23

Washer, 5/16 SAE

$2.49

$

In Stock, Qty 20+

0

14

Exmark 32128-20

Nut, Whizlock 5/16-18

$1.49

$

In Stock, Qty 20+

0

15

Exmark 103-1028

Stud, Belt Shield

$24.99

$

Usually ships in 3-6 days

0

Exmark 109-1172

Belt Cover 66" Triton

$237.99

$

Usually ships in 3-6 days

0

22

Exmark 103-2187

Knob

$6.49

$

In Stock, Qty 12

0

23

Exmark 3256-24

Washer

$0.99

$

In Stock, Qty 20+

0

24

Exmark 103-2188

Spring

$6.49

$

In Stock, Qty 12

0

25

Exmark 103-1279

Plug

$11.99

$

In Stock, only 1 left!

0

26

Exmark 103-5856-01

Plate, Weight Mounting

$18.99

$

Usually ships in 3-6 days

0

27

Exmark 103-5866

Asm, Weight Plate W/Decals

$

$

Not available

28

Exmark 9335124

Hairpin, Cotter

$2.99

$

In Stock, only 1 left!

0

29

Exmark 3256-27

Washer, 5/8 SAE

$2.99

$

In Stock, only 2 left!

0

30

Exmark 103-5865

Template, Drill

$

$

Currently unavailable

31

Exmark 109-2977-01

Deflector

$27.99

$

Usually ships in 3-6 days

0
