UVD60 (UVD6672) - Exmark Ultra Vac Bagger for Lazer Z Mower (SN: 402082300 - 404314158) (2018) Hitch And Handle Assembly Parts Diagram

Ultra Vac Bagger for Lazer Z Mower

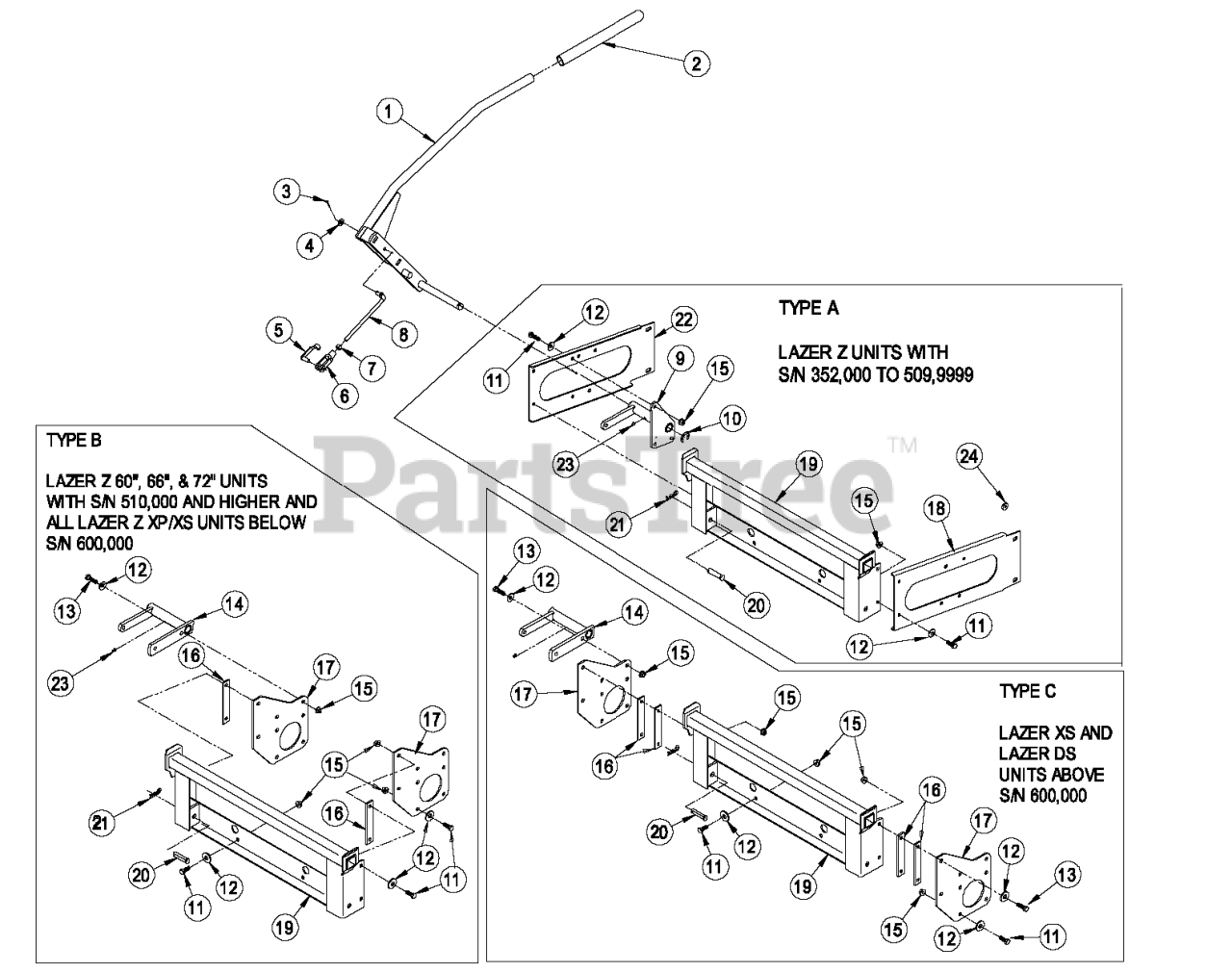

Hitch And Handle Assembly Parts Diagram

  • Title

1

Exmark 103-4745

Asm, Handle W/Grip

$264.99

$

In Stock, only 1 left!

0

2

Exmark 103-3005

Grip, Handle

$17.99

$

Usually ships in 3-6 days

0

3

Exmark 3272-10

Pin, Cotter .125 x .75

$1.49

$

In Stock, Qty 20+

0

4

Exmark 3256-24

Washer, Flat .406 x .813

$0.99

$

In Stock, Qty 20+

0

5

Exmark 103-2399

Pin, Spring Clevis 3/8

$6.49

$

In Stock, Qty 20+

0

6

Exmark 1-633131

Yoke, Linkage Brake

$15.99

$

In Stock, only 2 left!

0

7

Exmark 3219-3

Nut, HH 3/8-24

$1.99

$

In Stock, Qty 20+

0

8

Exmark 103-2413

Link, Handle

$13.99

$

In Stock, only 3 left!

0

9

103-5615-

Wld, Handle Mount (Type A)

$

$

Not available

10

Exmark 32151-48

E-Ring

$1.99

$

In Stock, Qty 20+

0

11

Exmark 323-6

Screw, HH 3/8-16x1 (Type A)

$2.49

$

In Stock, Qty 20+

0

Exmark 323-6

Screw, HH 3/8-16x1 (Type B)

$2.49

$

In Stock, Qty 20+

0

Exmark 323-6

Screw, HH 3/8-16x1 (Type C)

$2.49

$

In Stock, Qty 20+

0

12

Exmark 98-5975

Washer, Spring Disc (Type A)

$3.49

$

In Stock, Qty 20+

0

Exmark 98-5975

Washer, Spring Disc (Type B & C)

$3.49

$

In Stock, Qty 20+

0

13

Exmark 323-7

Screw, HH 3/8-16x1.25 (Type B)

$2.99

$

In Stock, Qty 20+

0

Exmark 323-7

Screw, HH 3/8-16x1.25 (Type C)

$2.99

$

In Stock, Qty 20+

0

14

Exmark 103-2980-03

Wld, Handle Mount (Type B & C)

$148.99

$

Usually ships in 3-6 days

0

15

Exmark 3290-357

Nut, Whizlock 3/16-16 (Type A)

$0.99

$

In Stock, Qty 20+

0

Exmark 3290-357

Nut, Whizlock 3/16-16 (Type B & C)

$0.99

$

In Stock, Qty 20+

0

16

Exmark 103-1155-03

Spacer (Type B)

$8.99

$

Usually ships in 3-6 days

0

Exmark 103-1155-03

Spacer (Type C)

$8.99

$

Usually ships in 3-6 days

0

17

Exmark 103-2975-03

Plate, Bagger Mount (Type B &C)

$58.99

$

Usually ships in 3-6 days

0

18

Exmark 103-0399-03

Bracket, Frame RH (Type A)

$119.99

$

Usually ships in 3-6 days

0

19

Exmark 103-0429-03

Wld, Bagger Mount

$509.99

$

Usually ships in 3-6 days

0

20

Exmark 283-69

Pin, Clevis

$10.99

$

In Stock, only 4 left!

0

21

Exmark 1-806005

Pin, Hair

$2.99

$

In Stock, Qty 20+

0

22

Exmark 103-5612-03

Bracket, Frame LH (Type A)

$96.99

$

Usually ships in 3-6 days

0

23

Exmark 302-19

Zerk, 1/4-28 Straight

$2.49

$

In Stock, Qty 17

0

24

Exmark 71-9310

Spacer (Type A)

$2.99

$

Usually ships in 3-6 days

0
