UVG 1621 BV (7085632) - Simplicity Turf Cruiser Utility Vehicle with Generator, 16hp Briggs & Stratton Bed Assembly - Latch (179bedl) Parts Diagram

Turf Cruiser Utility Vehicle with Generator, 16hp Briggs & Stratton

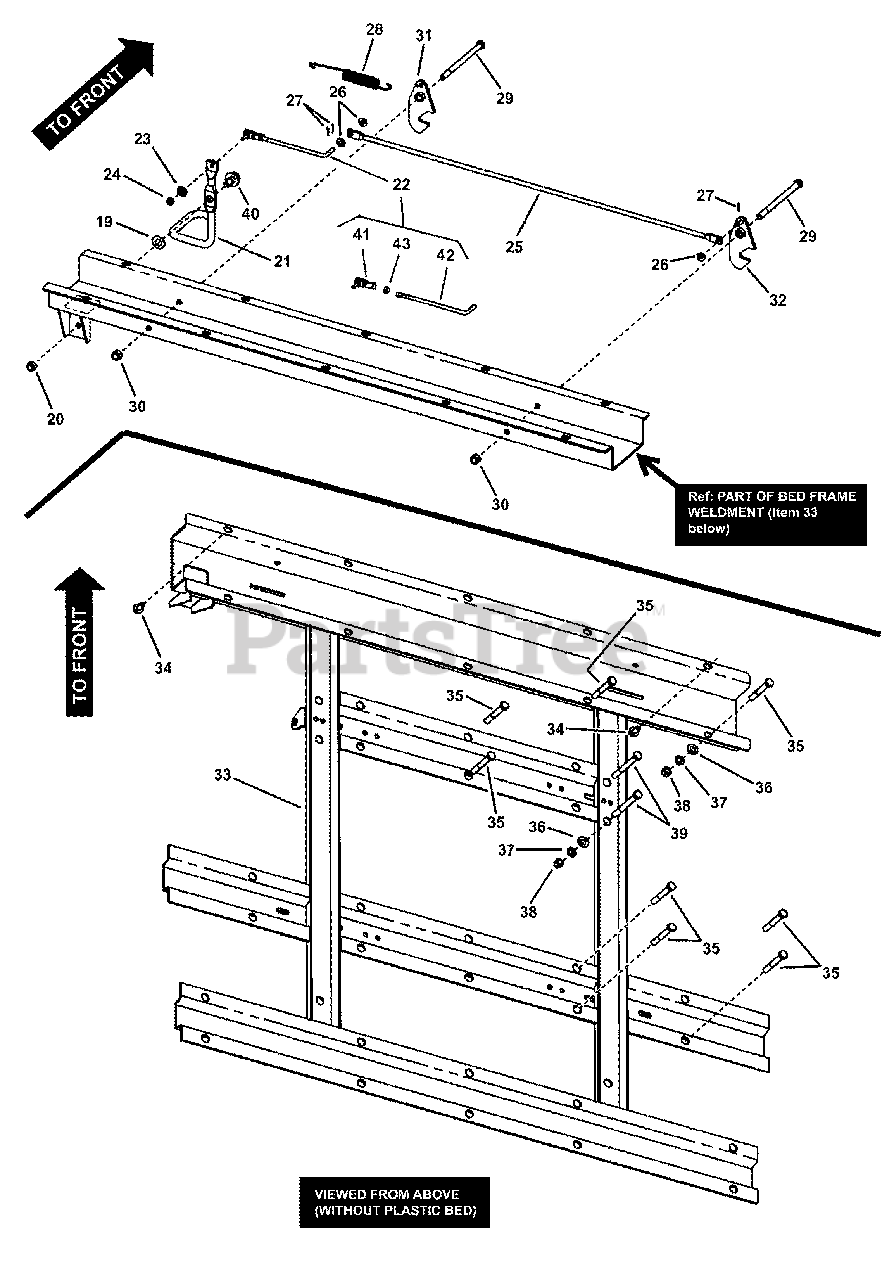

Bed Assembly - Latch (179bedl) Parts Diagram

  • Title

19

Simplicity 7091733

WASHER, .5 x 1.0 x .03 Flat
(Superseded to 7091733YP)

$4.49

$

Usually ships in 2-12 days

0

20

Simplicity 7091518SM

NUT, Hex Nyloc, 3/8-24
(Superseded to 703901)

$3.49

$

In Stock, Qty 5

0

21

Simplicity 7028206

HANDLE, Bed Latch
(Superseded to 7028206YP)

$51.99

$

Usually ships in 2-12 days

0

22

Simplicity 7034564

ASSEMBLY, Rod-Link (Includes Ref. Nos. 41, 42 & 43)

$

$

Not available

23

Simplicity 7090053SM

WASHER, 1/4 Internal Tooth Lock
(Superseded to 703462)

$4.49

$

In Stock, Qty 5

0

24

Simplicity 7090095

NUT, Hex, 1/4-28 GR 5 or B
(Superseded to 7090095FS)

$3.49

$

Usually ships in 2-12 days

0

25

Simplicity 7034437

ROD, Link
(Superseded to 7034437YP)

$22.99

$

Usually ships in 2-12 days

0

26

Simplicity 7091294SM

WASHER, .28 x .63 x .06 Flat
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

27

Simplicity 7090673SM

COTTER PIN, .06 x .50
(Superseded to 703464)

$4.49

$

In Stock, only 2 left!

0

28

Simplicity 7029360

SPRING, Extension
(Superseded to 7029360YP)

$12.99

$

Usually ships in 2-12 days

0

29

Simplicity 7092052

CAPSCREW, Hex Head, 3/8-16 x 5-1/2 GR 5
(Superseded to 7092052YP)

$5.49

$

Usually ships in 2-12 days

0

30

Simplicity 7091299SM

NUT, Hex Nyloc, 3/8-16
(Superseded to 703117)

$3.99

$

In Stock, Qty 20+

0

31

Simplicity 7028262

HOOKASSEMBLY, Bed (weldment)
(Superseded to 7028262YP)

$51.99

$

Usually ships in 2-12 days

0

32

Simplicity 7034428

HOOKASSEMBLY, Bed (weldment)
(Superseded to 7034428YP)

$62.99

$

Usually ships in 2-12 days

0

33

Simplicity 7022241

BED FRAME ASSEMBLY
(Superseded to 7022241YP)

$883.99

$

Usually ships in 2-12 days

0

34

Simplicity 7091811SM

BOLT, Hex Flange Lock, 5/16-18 x 5/8 GR 5
(Superseded to 703823)

$3.99

$

In Stock, only 2 left!

0

35

Simplicity 7091501SM

CAPSCREW, Hex Washer Head, 3/8-16 x 2-1/2 GR 5
(Superseded to 84007037)

$2.99

$

In Stock, only 2 left!

0

36

Simplicity 1924940SM

WASHER, 3/8 SAE Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

37

Simplicity 7090118

WASHER, 3/8 Split Lock
(Superseded to 703454)

$3.49

$

In Stock, Qty 5

0

38

Simplicity 7091302SM

NUT, Hex, 3/8-16 GR 5 or B

$4.49

$

In Stock, Qty 9

0

39

Simplicity 7091044

CAPSCREW, Hex Head, 3/8-16 x 3-1/4, GR 5

$

$

Not available

40

Simplicity 7014981

BOLT, Hex Flange, 3/8-24 GR 8
(Superseded to 7014981SM)

$15.99

$

Usually ships in 2-12 days

0

41

Simplicity 7015753

BALL JOINT, 1/4-28
(Superseded to 7015753YP)

$11.99

$

In Stock, Qty 18

0

42

Simplicity 7034524

ROD-LINK (1/4-28 thread)
(Superseded to 7034524YP)

$86.99

$

Usually ships in 2-12 days

0

43

Simplicity 7090095

NUT, Hex, 1/4-28 GR 5 or B
(Superseded to 7090095FS)

$3.49

$

Usually ships in 2-12 days

0
