UVG 1621BV (85632) - Snapper Turf Cruiser Utility Vehicle, 16hp Briggs & Stratton BRAKE ASSEMBLY Parts Diagram

Turf Cruiser Utility Vehicle, 16hp Briggs & Stratton

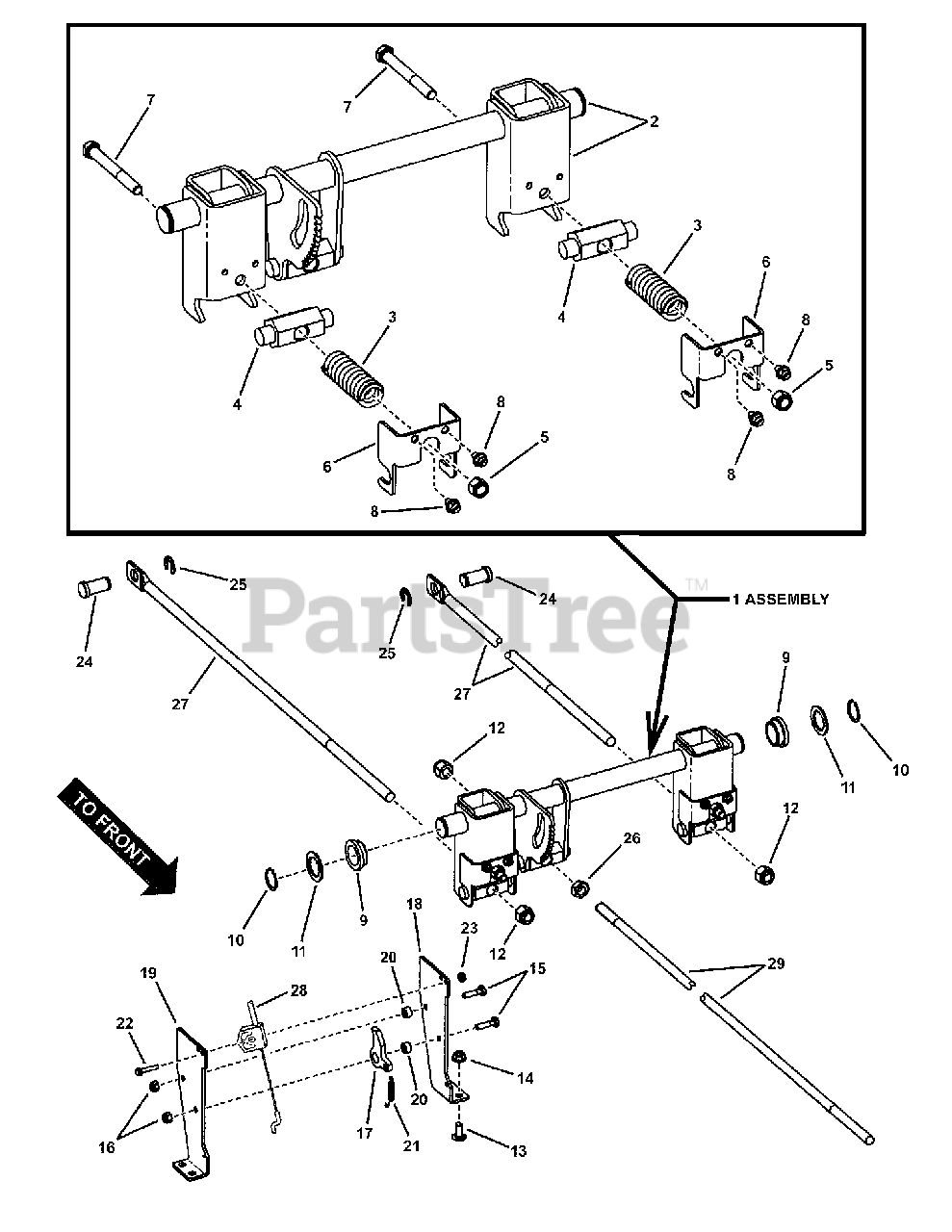

BRAKE ASSEMBLY Parts Diagram

  • Title

1

Snapper 7058751

BRAKE ASSEMBLY, Utility Vehicle (incl. items 2 thru 8)

$

$

Not available

2

Snapper 7058683

WELDMENT, Rear CVT Brake Shaft
(Superseded to 7058683YP)

$353.99

$

Usually ships in 2-12 days

0

3

Snapper 7072986

SPRING, CVT Brake

$

$

Not available

4

Snapper 7073015

BRAKE SWIVEL, w/.531 Thru Hole
(Superseded to 7073015YP)

$15.99

$

Usually ships in 2-12 days

0

5

Snapper 7091299

NUT, 3/8-16 Hex Nyloc
(Superseded to 703117)

Note: or 7076979

$3.49

$

In Stock, Qty 20+

0

6

Snapper 7073116

BRACKET, Swivel Retainer (Red)
(Superseded to 7073116YP)

Note: 7063361, green version of 7073116 not used in production

$15.99

$

Usually ships in 2-12 days

0

7

Snapper 7092055

SCREW, 3/8-16 x 3-1/4" Hex Head Cap, GR 5
(Superseded to 703874)

$4.49

$

In Stock, only 1 left!

0

8

Snapper 7091293

SCREW, 1/4-20 x 3/8" Hex Washer Self-Tap
(Superseded to 703583)

$4.99

$

Usually ships in 2-12 days

0

9

Snapper 7072645

BEARING, 1" I.D.
(Superseded to 7072645YP)

$6.49

$

Usually ships in 2-12 days

0

10

Snapper 7012709

RING, 1.00 Dia. External Retaining
(Superseded to 703993)

$3.49

$

In Stock, only 1 left!

0

11

Snapper 7016561

BUSHING, 14 Gage Machine
(Superseded to 7016561YP)

$5.49

$

In Stock, Qty 8

0

12

Snapper 7079295

NUT, 1/2-20 Hex Nyloc
(Superseded to 7079295YP)

$3.49

$

Usually ships in 2-12 days

0

13

Snapper 7091508

BOLT, 5/16-18 x 3/4" Short Square Neck Carriage, GR 5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

14

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, GR 5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

15

Snapper 7027230

SCREW, 1/4-20 x 1" Hex Head Cap, GR 5
(Superseded to 703820)

$3.99

$

In Stock, Qty 5

0

16

Snapper 7091603

NUT, 1/4-20 Hex Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

17

Snapper 7073097

PAWL, Park Brake
(Superseded to 7073097YP)

$7.99

$

Usually ships in 2-12 days

0

18

Snapper 7073098

BRACKET, LH Park Brake Pawl Pivot (Black)
(Superseded to 7073098YP)

$20.99

$

Usually ships in 2-12 days

0

19

Snapper 7073099

BRACKET, RH Park Brake Pawl Pivot (Black)

$

$

Not available

20

Snapper 7073100

SPACER, Park Brake
(Superseded to 7073100SM)

$9.99

$

Usually ships in 2-12 days

0

21

Snapper 7011224

SPRING, Return, Extension
(Superseded to 7011224YP)

Note: was 7072550 (voided)

$18.99

$

Usually ships in 2-12 days

0

22

Snapper 7090299

SCREW, #10-32 x 1" Hex Washer Self-Tap
(Superseded to 7090299YP)

$4.49

$

Usually ships in 2-12 days

0

23

Snapper 7091801

NUT, #10-32 Hex Center Lock
(Superseded to 7091801YP)

$2.99

$

Usually ships in 2-12 days

0

24

Snapper 7073013

PIN, Brake Anchor
(Superseded to 7073013YP)

$17.99

$

Usually ships in 2-12 days

0

25

Snapper 7071953

RETAINING RING, 5/8" Shaft
(Superseded to 7071953YP)

$2.99

$

Usually ships in 2-12 days

0

26

Snapper 7090559

NUT, 1/2-20 Hex Jam, GR 5 or B
(Superseded to 703903)

$3.49

$

In Stock, only 4 left!

0

27

Snapper 7072985

BRAKE ROD, Rear CVT (1/2-20 thread)
(Superseded to 7072985YP)

$47.99

$

Usually ships in 2-12 days

0

28

Snapper 7027941

CABLE, Parking Brake
(Superseded to 7027941SM)

$

$

Not available

29

Snapper 7072989

ROD, Lower CVT Brake (1/2-20 thread, both ends)
(Superseded to 7072989YP)

Note: also shown on FRONT FRAME GROUP- Final Assembly page

$47.99

$

Usually ships in 2-12 days

0
