UVG 1621BV (85632) - Snapper Turf Cruiser Utility Vehicle, 16hp Briggs & Stratton CVT AXLE GROUP Parts Diagram

Turf Cruiser Utility Vehicle, 16hp Briggs & Stratton

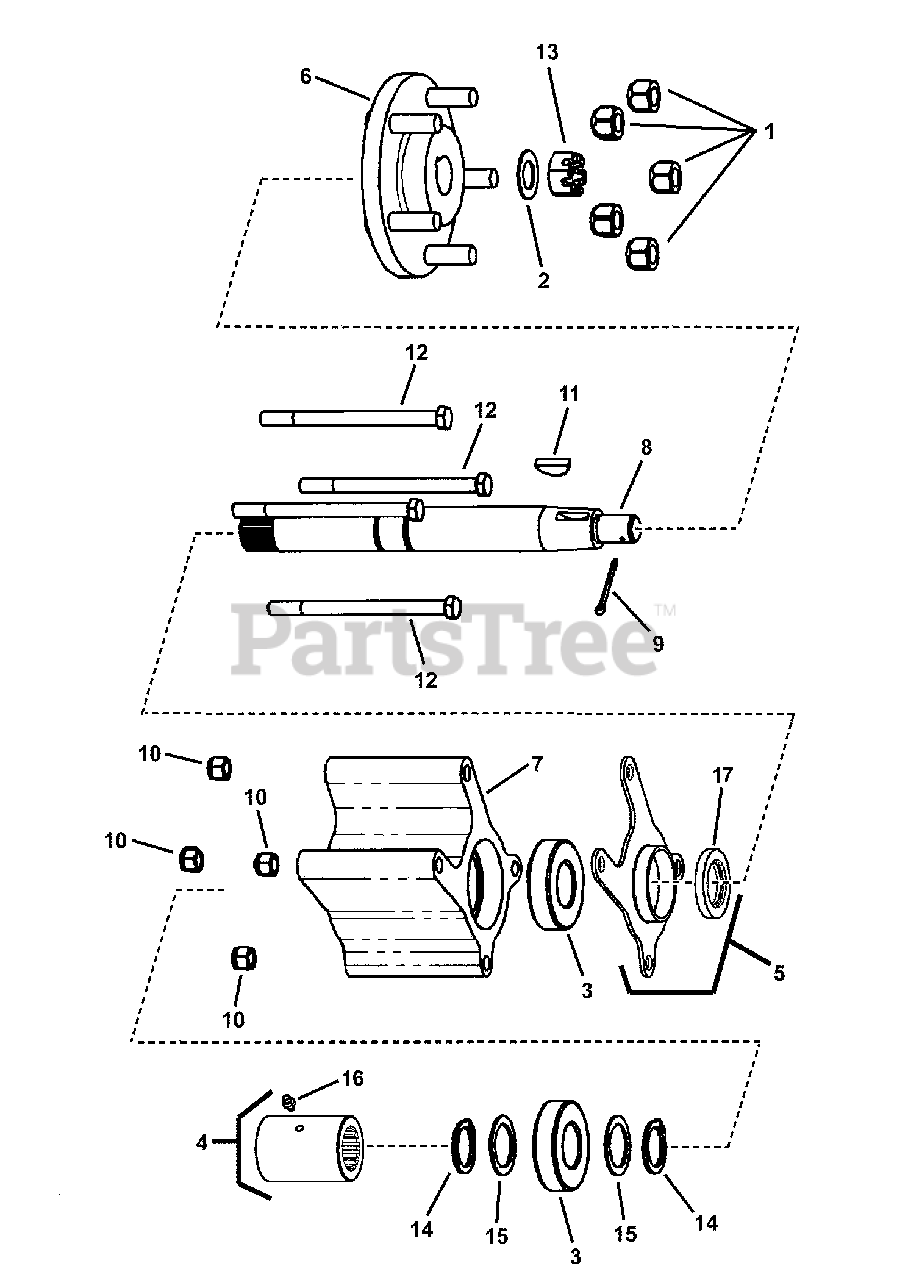

CVT AXLE GROUP Parts Diagram

  • Title

1

Snapper 7027192

LUG NUT, 1/2-20 Hex
(Superseded to 7027192SM)

Note: also shown on FRONT SUSPENSION & WHEEL GROUP pages

$2.49

$

Usually ships in 2-12 days

0

1

Snapper 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

2

Snapper 7032027

WASHER, .77 x 1.5 x .06 Flat
(Superseded to 7032027SM)

$4.49

$

In Stock, Qty 5

0

2

Snapper 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

3

Snapper 7035602

BEARING, 30mm x 62mm
(Superseded to 7035602YP)

$27.99

$

Usually ships in 2-12 days

0

3

Snapper 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

4

Snapper 7058642

ASSEMBLY, Coupling (incl. Ref. No. 16)
(Superseded to 7058642YP)

$188.99

$

Usually ships in 2-12 days

0

4

Snapper 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, Qty 11

0

5

Snapper 5025145X10

BOLT, 5/16-18 X 1-1/4, CARRIAGE YZ
(Superseded to 5025145X10YP)

$3.49

$

In Stock, only 1 left!

0

6

Snapper 5021878

SPACER, .25 X .37 X .25
(Superseded to 5021878YP)

$3.99

$

Usually ships in 2-12 days

0

7

Snapper 5025144X6

BOLT, 1/4-20 X 3/4", CARRIAGE
(Superseded to 5025144X6SM)

$3.49

$

Usually ships in 2-12 days

0

8

Snapper 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

Usually ships in 2-12 days

0

9

Snapper 5044617

WASHER, .34 X 1.25 X 10 GA
(Superseded to 5044617SM)

$8.49

$

In Stock, only 2 left!

0

10

Snapper 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

11

Snapper 5403706D

PLATE, SIO FLOOR MOUNT - RED
(Superseded to 5403706DYP)

$26.99

$

Usually ships in 2-12 days

0

12

Snapper 5100909

SEAT, NO ARM REST
(Superseded to 5100909SM)

$551.99

$

Usually ships in 2-12 days

0

13

Snapper 5403015D

SEAT PLATE, STOP - RED
(Superseded to 5403015A)

$8.49

$

Usually ships in 2-12 days

0
