UVG 1621BV (85632) - Snapper Turf Cruiser Utility Vehicle, 16hp Briggs & Stratton FRONT CLIP GROUP (Dash) Parts Diagram

Turf Cruiser Utility Vehicle, 16hp Briggs & Stratton

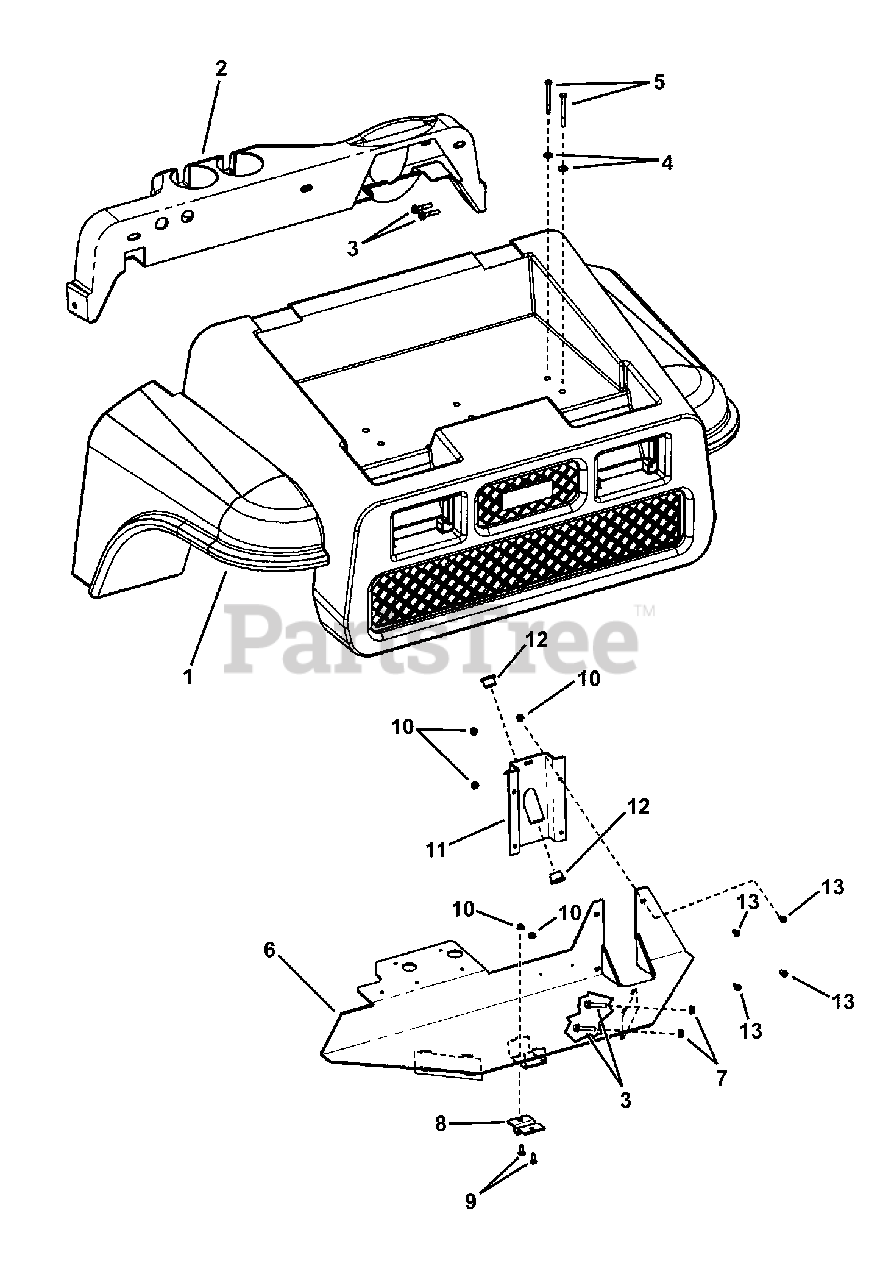

FRONT CLIP GROUP (Dash) Parts Diagram

  • Title

1

Snapper 7075818

FENDER, UV-2
(Superseded to 7075818YP)

$797.99

$

Usually ships in 2-12 days

0

2

Snapper 7078813

DASH, UV-2
(Superseded to 7078813YP)

$205.99

$

Usually ships in 2-12 days

0

3

Snapper 7091602

BOLT, 5/16-18 x 1-1/2" Hex Flange Lock, GR 5
(Superseded to 7091602SM)

$3.99

$

In Stock, only 4 left!

0

4

Snapper 7091253

WASHER, .281 x .750 x .051 Flat
(Superseded to 7091253YP)

$4.99

$

Usually ships in 2-12 days

0

5

Snapper 7091317

SCREW, 1/4-20 x 3" Hex Head Cap, GR 5
(Superseded to 5025010X24YP)

$3.99

$

Usually ships in 2-12 days

0

6

Snapper 7063343

WELDMENT, Steering Support
(Superseded to 7063343YP)

$245.99

$

Usually ships in 2-12 days

0

7

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, GR 5
(Superseded to 703409)

$5.99

$

In Stock, Qty 20+

0

8

Snapper 7073163

PIVOT BRACKET, Throttle

$

$

Not available

9

Snapper 7091530

BOLT, 1/4-20 x 3/4" Square Neck Carriage, GR 5
(Superseded to 7091530SM)

Note: Was 7091776

$4.49

$

In Stock, Qty 20+

0

10

Snapper 7091584

NUT, 1/4-20 Hex Flange Lock, GR 5
(Superseded to 703233)

$4.49

$

In Stock, only 3 left!

0

11

Snapper 7041967

WELDMENT, Column Support
(Superseded to 7041967YP)

$100.99

$

Usually ships in 2-12 days

0

12

Snapper 7035496

BEARING, .750 I.D.
(Superseded to 7035496YP)

Note: Ref. SEAT PEDESTAL GROUP- Controls, item 25

$8.99

$

In Stock, only 2 left!

0

13

Snapper 7091148

SCREW, 1/4-20 x 1/2" Pan Head Machine
(Superseded to 7091148SM)

$5.49

$

Usually ships in 2-12 days

0
