UVG 1621BV (85632) - Snapper Turf Cruiser Utility Vehicle, 16hp Briggs & Stratton FRONT FRAME GROUP- Final Assembly Parts Diagram

Turf Cruiser Utility Vehicle, 16hp Briggs & Stratton

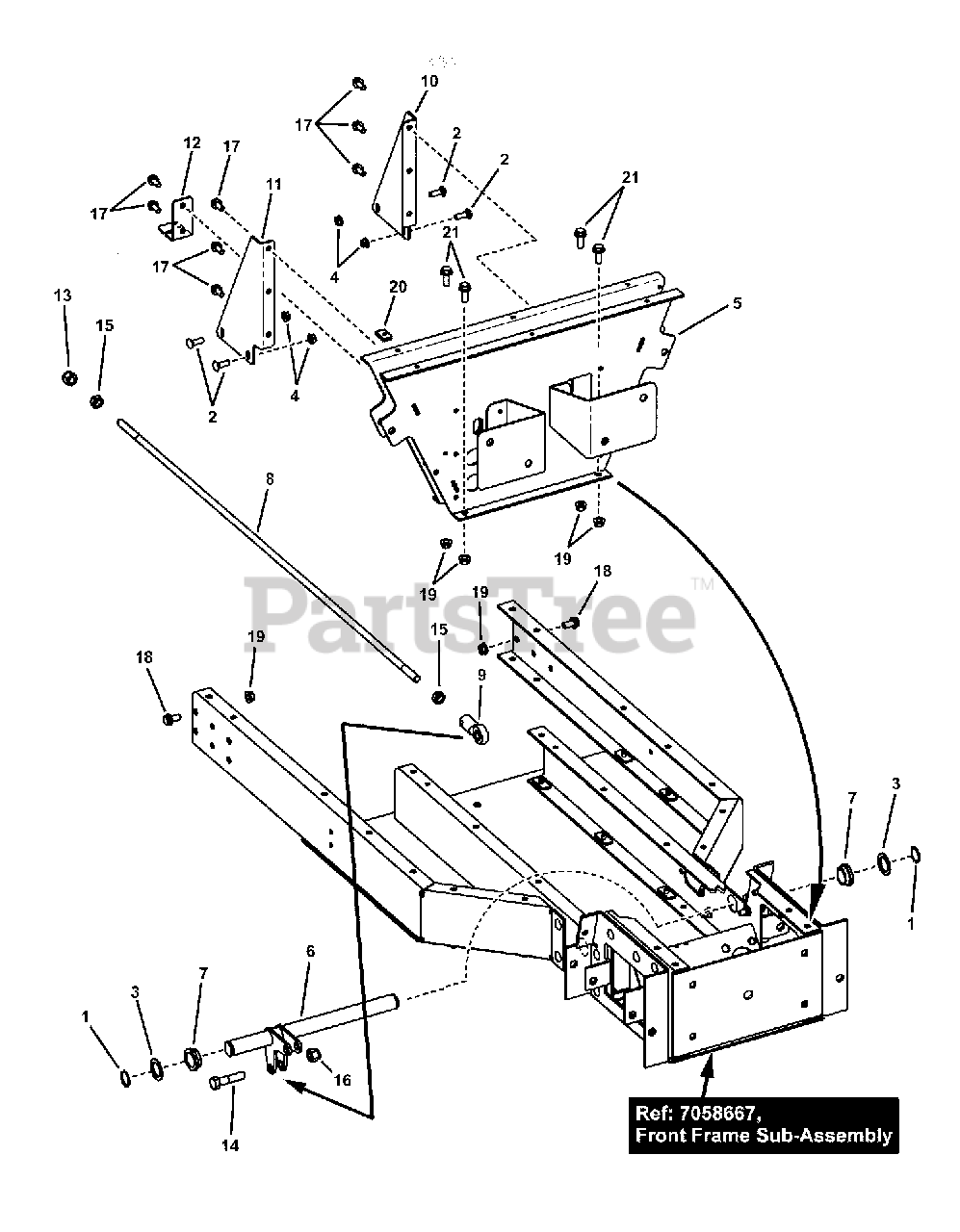

FRONT FRAME GROUP- Final Assembly Parts Diagram

  • Title

1

Snapper 7012709

RING, 1.00 Dia. External Retaining
(Superseded to 703993)

$3.49

$

In Stock, only 2 left!

0

2

Snapper 7091714

BOLT, 5/16-18 x 1" Square Neck Carriage, GR5
(Superseded to 703483)

$3.99

$

In Stock, only 3 left!

0

3

Snapper 7016561

BUSHING, 14 Ga Machine
(Superseded to 7016561YP)

$5.49

$

In Stock, Qty 8

0

4

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, GR 5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

5

Snapper 7044680

WELDMENT, Grill Support
(Superseded to 7044680YP)

$250.99

$

Usually ships in 2-12 days

0

6

Snapper 7058648

WELDMENT, Lower CVT Brake

$

$

Not available

7

Snapper 7072645

BEARING, 1" I.D.
(Superseded to 7072645YP)

$6.49

$

Usually ships in 2-12 days

0

8

Snapper 7072989

ROD, Lower CVT Brake (1/2-20 thread, both ends)
(Superseded to 7072989YP)

$47.99

$

Usually ships in 2-12 days

0

9

Snapper 7073012

ROD END, Female 1/2-20
(Superseded to 7073012YP)

$66.99

$

Usually ships in 2-12 days

0

10

Snapper 7073091

SUSPENSION GUSSET, LH
(Superseded to 7073091YP)

$25.99

$

Usually ships in 2-12 days

0

11

Snapper 7073092

SUSPENSION GUSSET, RH

$

$

Not available

12

Snapper 7073162

THROTTLE ANCHOR, Front (black)

Note: used on UV, UVG & UVGC models

$

$

Not available

12

Snapper 7074326

THROTTLE ANCHOR, Front
(Superseded to 7074326YP)

Note: not shown; Trailmaster version of 7073162; used on UVGT621BV

$17.99

$

Usually ships in 2-12 days

0

13

Snapper 7079295

NUT, 1/2-20 Hex Nyloc
(Superseded to 7079295YP)

$3.49

$

Usually ships in 2-12 days

0

14

Snapper 7090543

SCREW, 1/2-13 x 2" Hex Head Cap, GR 5
(Superseded to 703817)

$5.99

$

Usually ships in 2-12 days

0

15

Snapper 7090559

NUT, 1/2-20 Hex Jam, GR 5 or B
(Superseded to 703903)

$3.49

$

In Stock, only 4 left!

0

16

Snapper 7091922

NUT, 1/2-13 Hex Nyloc
(Superseded to 703453)

Note: or 7091121

$5.99

$

In Stock, only 3 left!

0

17

Snapper 7091541

SCREW, 5/16-18 x 3/4" Hex Washer Self-Tap
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

18

Snapper 7091588

BOLT, 3/8-16 x 3/4" Hex Flange Lock, GR 5
(Superseded to 703955)

$4.49

$

In Stock, Qty 20+

0

19

Snapper 7091619

NUT, 3/8-16 Hex Flange Lock
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

20

Snapper 7041033

NUT, 1/4" Tinnerman
(Superseded to 7041033YP)

$5.99

$

In Stock, Qty 6

0

21

Snapper 7027198

BOLT, 3/8-16 x 1" Hex Flange Lock, GR 5
(Superseded to 704038)

$5.99

$

In Stock, Qty 17

0
