UVG 1621BV (85632) - Snapper Turf Cruiser Utility Vehicle, 16hp Briggs & Stratton STEERING GROUP Parts Diagram

Turf Cruiser Utility Vehicle, 16hp Briggs & Stratton

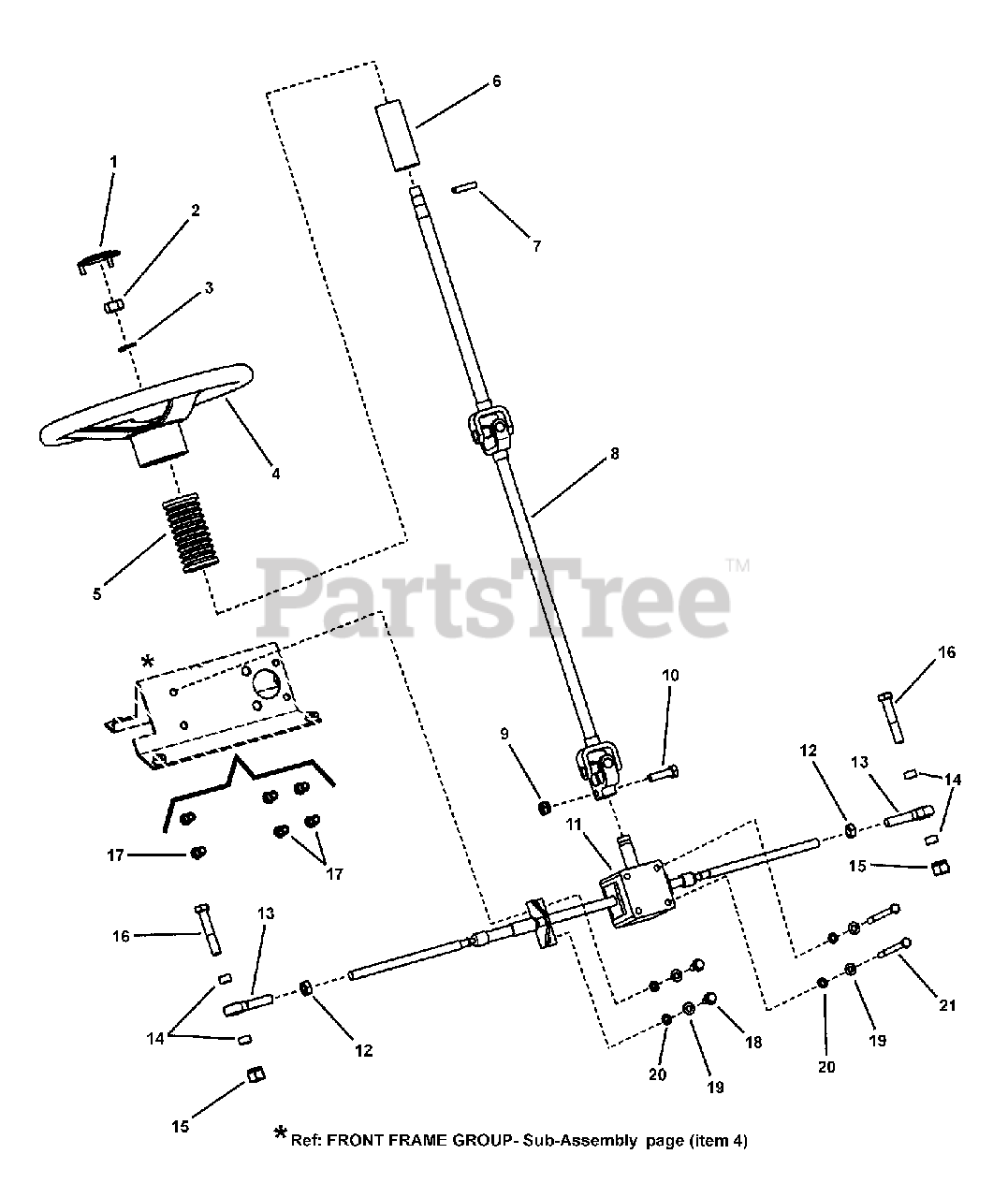

STEERING GROUP Parts Diagram

  • Title

1

Snapper 1725024

CENTER CAP, Steering Wheel
(Superseded to 1725024SM)

$7.49

$

Usually ships in 2-12 days

0

2

Snapper 7092036

NUT, M16 x 2 thread Hex, GR 5
(Superseded to 7092036YP)

Note: in hardware bag

$6.99

$

Usually ships in 2-12 days

0

3

Snapper 7092042

WASHER, 16mm Split Lock
(Superseded to 7092042YP)

Note: in hardware bag

$2.99

$

Usually ships in 2-12 days

0

4

Snapper 1722318

* STEERING WHEEL (w/cross drilled hole)
(Superseded to 1722318SM)

$110.99

$

In Stock, only 4 left!

0

4

Snapper 7078088

STEERING WHEEL, UV-2 (w/40 tooth splined hole)
(Superseded to 7078088YP)

$131.99

$

Usually ships in 2-12 days

0

5

Snapper 1678381

COVER, Steering Shaft
(Superseded to 1678381SM)

$10.99

$

Usually ships in 2-12 days

0

6

Snapper 7072638

COVER, Steering Shaft
(Superseded to 7023667YP)

Note: 4" long

$8.49

$

In Stock, Qty 9

0

7

Snapper 7090845

* ROLL PIN, 5/16 x 1-1/2"
(Superseded to 7090845YP)

$3.49

$

Usually ships in 2-12 days

0

8

Snapper 7027496

* COLUMN, Steering (w/cross drilled hole)
(Superseded to 7027496YP)

$300.99

$

In Stock, only 1 left!

0

8

Snapper 7078191

COLUMN, Steering (w/40 tooth spline)
(Superseded to 7078191YP)

$293.99

$

Usually ships in 2-12 days

0

9

Snapper 7091187

NUT, 10mm-1.50 Hex Nyloc
(Superseded to 7091187SM)

$3.49

$

In Stock, only 1 left!

0

10

Snapper 7091184

SCREW, M10-1.50 x 40mm Hex Head Cap
(Superseded to 7091184YP)

$3.49

$

Usually ships in 2-12 days

0

11

Snapper 7028075

ASSEMBLY, Rack and Pinion Steering
(Superseded to 7028075YP)

$737.99

$

Usually ships in 2-12 days

0

12

Snapper 7090559

NUT, 1/2-20 Hex Jam, GR 5 or B
(Superseded to 703903)

$3.49

$

In Stock, only 4 left!

0

13

Snapper 7036465

BALL JOINT, 1/2-20
(Superseded to 7036465YP)

$50.99

$

Usually ships in 2-12 days

0

14

Snapper 7072637

SPACER, 1/2 I.D., 5/8 O.D. x .375

$

$

Not available

15

Snapper 7091121

NUT, 1/2-13 Hex Nyloc

Note: or 7091922

$

$

Not available

16

Snapper 7090544

SCREW, 1/2-13 x 2-3/4 Hex Head Cap, GR 5
(Superseded to 7090544YP)

$3.99

$

Usually ships in 2-12 days

0

17

Snapper 7092079

INSERT, 5/16-18 Hex Threaded
(Superseded to 7092079YP)

$4.99

$

Usually ships in 2-12 days

0

18

Snapper 7091905

BOLT, 5/16-18 x 7/8" Hex Flange Lock
(Superseded to 7091905SM)

$4.49

$

Usually ships in 2-12 days

0

19

Snapper 7090188

WASHER, .34 x .69 x .08 Flat
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

20

Snapper 7091315

WASHER, .32 x .58 x .08 Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

21

Snapper 7091058

SCREW, 5/16-18 x 3-3/4" Hex Head Cap
(Superseded to 7091058YP)

$4.49

$

Usually ships in 2-12 days

0
