UVGT 1621 BV (7085903) - Simplicity Trail Cruiser Utility Vehicle with Generator, 16hp Briggs & Stratton CVT Axle Group (179cvta) Parts Diagram

Trail Cruiser Utility Vehicle with Generator, 16hp Briggs & Stratton

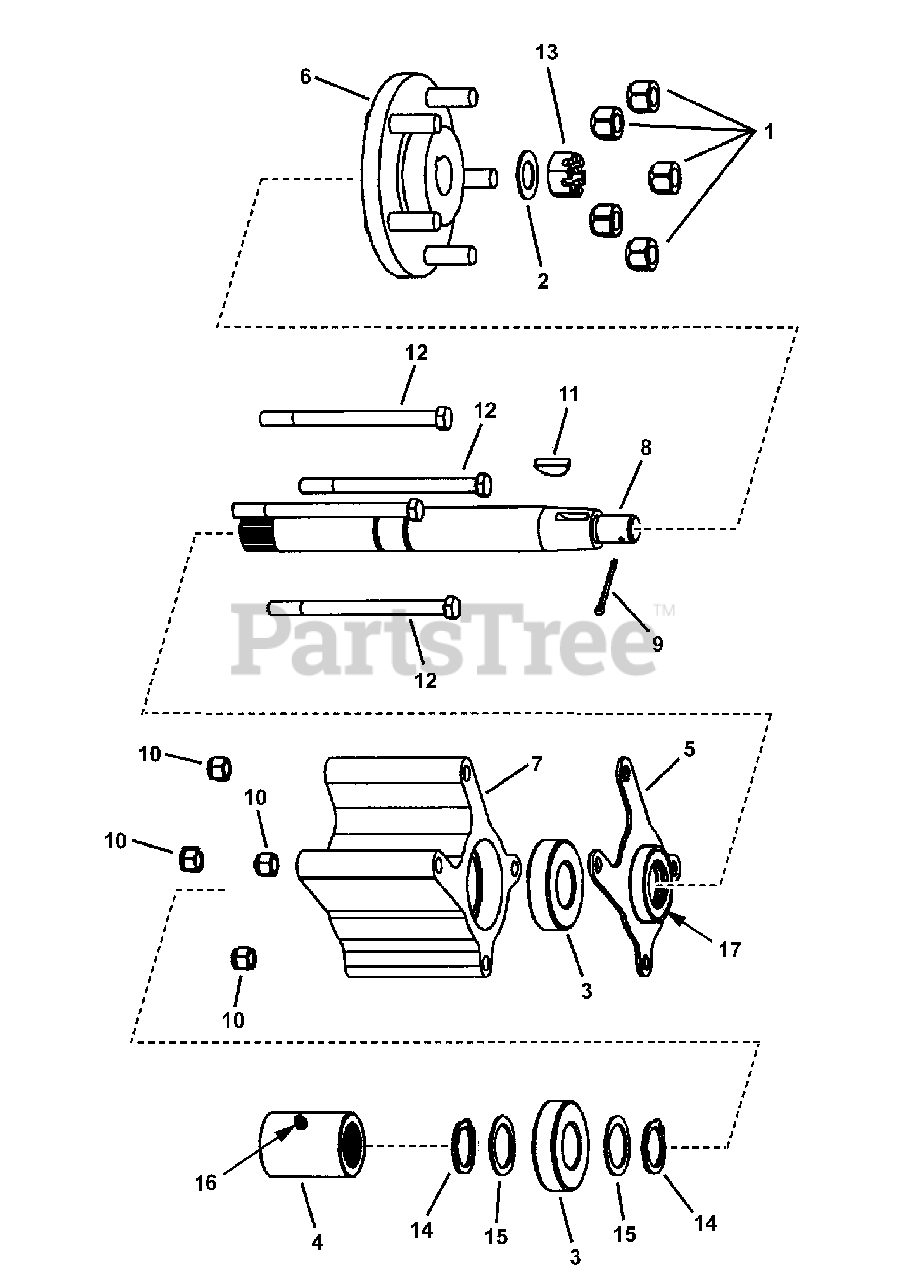

CVT Axle Group (179cvta) Parts Diagram

  • Title

1

Simplicity 7027192SM

LUG NUT, 1/2-20 Hex

$2.49

$

Usually ships in 2-12 days

0

2

Simplicity 7032027SM

WASHER, .77 x 1.5 x .06 Flat

$4.49

$

In Stock, Qty 5

0

3

Simplicity 7035602

BEARING, 30mm x 62mm
(Superseded to 7035602YP)

$27.99

$

Usually ships in 2-12 days

0

4

Simplicity 7058642

ASSEMBLY, Coupling w/Lube Fitting (Includes Ref. Nos. 16)
(Superseded to 7058642YP)

$188.99

$

Usually ships in 2-12 days

0

5

Simplicity 7058650

ASSEMBLY, Plate/Seal (Includes Ref. Nos. 17)
(Superseded to 7058650YP)

$158.99

$

In Stock, only 1 left!

0

6

Simplicity 7072960

WHEEL HUB, Rear
(Superseded to 7072960YP)

$132.99

$

Usually ships in 2-12 days

0

7

Simplicity 7072965

AXLE SUPPORT, CVT, Aluminum
(Superseded to 7072965YP)

$225.99

$

In Stock, only 1 left!

0

8

Simplicity 7072975

AXLE, CVT
(Superseded to 7072975YP)

$329.99

$

Usually ships in 2-12 days

0

9

Simplicity 7090297

COTTER PIN, 1/8 x 1-1/2
(Superseded to 7091809YP)

$4.49

$

In Stock, only 2 left!

0

10

Simplicity 7091299SM

NUT, Hex Nyloc, 3/8-16
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

11

Simplicity 7091778

WOODRUFF KEY, #808
(Superseded to 7091778YP)

$3.49

$

Usually ships in 2-12 days

0

12

Simplicity 7092052

CAPSCREW, Hex Head, 3/8-16 x 5-1/2 GR 5
(Superseded to 7092052YP)

$5.49

$

Usually ships in 2-12 days

0

13

Simplicity 7092038

NUT, Slotted Hex, 3/4-16
(Superseded to 7092038YP)

$6.49

$

Usually ships in 2-12 days

0

14

Simplicity 7092045

SNAP RING, 30mm
(Superseded to 7092045YP)

$3.49

$

Usually ships in 2-12 days

0

15

Simplicity 7092046

WASHER, 1-3/16 x 1-5/8 x .06 Flat
(Superseded to 7092046YP)

$4.49

$

Usually ships in 2-12 days

0

16

Simplicity 7013864SM

FITTING, Lube 3/16

$3.49

$

In Stock, Qty 6

0

17

Simplicity 7073008

SEAL, 1.181 ID 1.850 OD
(Superseded to 7073008YP)

$3.49

$

In Stock, only 1 left!

0
