V 548 - Husqvarna 48" Zero-Turn Mower (Original) CHASSIS LOWER Parts Diagram

48" Zero-Turn Mower

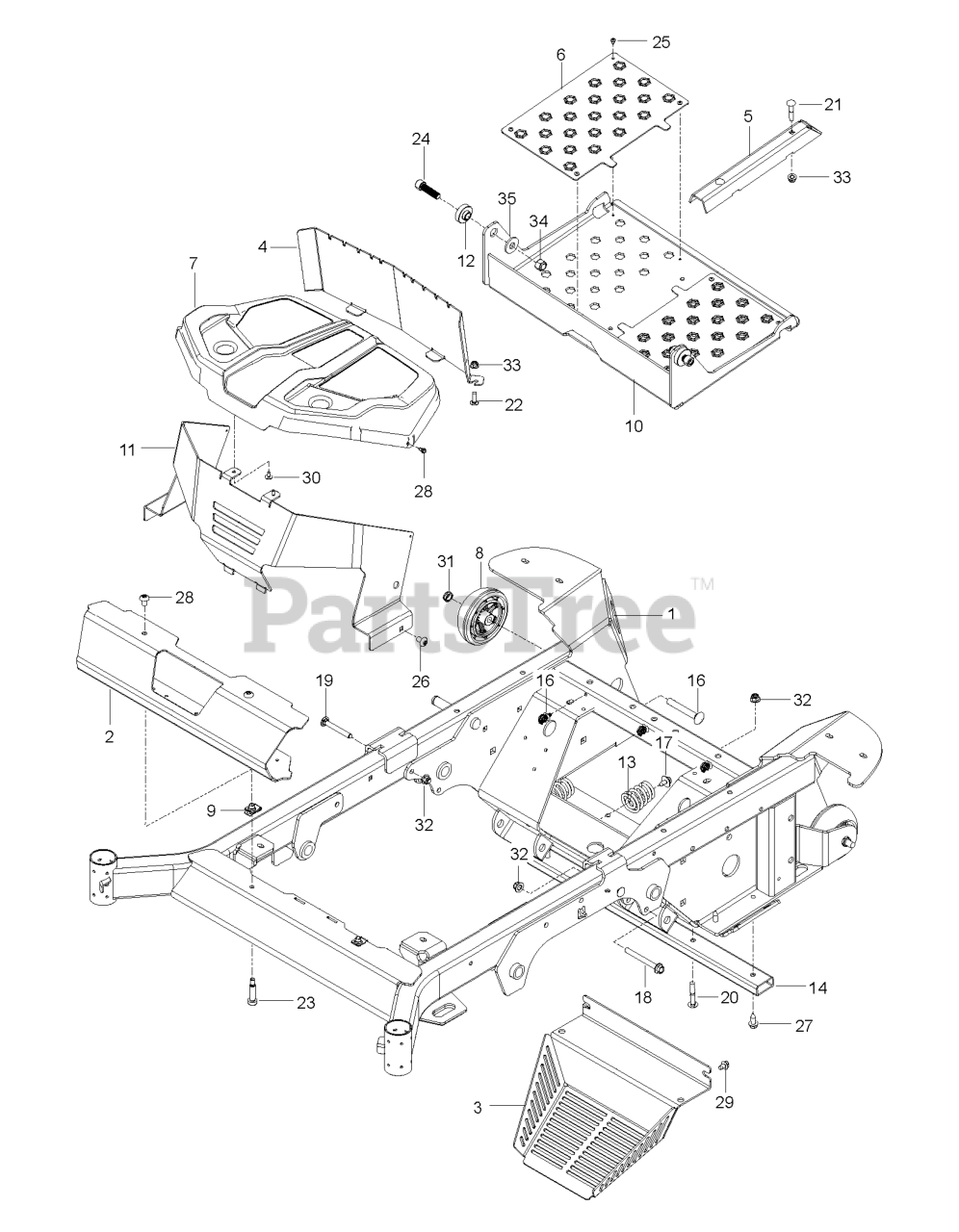

CHASSIS LOWER Parts Diagram

  • Title

6

Husqvarna 590782902

FOOTPLATE OPERATOR STAND VZ MS

$119.99

$

Usually ships in 3-10 days

0

12

Husqvarna 586701701

SPACER.IDLER.METAL.POWDER
(Superseded to 586701702)

$7.49

$

Usually ships in 3-10 days

0

34

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

19

Husqvarna 539122728

3/8-16 X 3` CARR BOLT
(Superseded to 596917501)

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 592857901

BOLT 1/2-13 X 1.75 CAP

$4.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539990858

SCR 5/16-18 X 1/2 SELFTAP ZN
(Superseded to 596030701)

$3.99

$

In Stock, Qty 7

0

30

Husqvarna 532421756

SCREW.#10 X 0.500
(Superseded to 596434001)

$3.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539108010

NUT 1/2-13 HEX JM NYL

$3.99

$

In Stock, only 2 left!

0

14

Husqvarna 590782302

TUBE SKIDPLATE

$47.99

$

Usually ships in 3-10 days

0

2

Husqvarna 590743106

COVER FRONT CROSSMEMBER VZ

$107.99

$

Usually ships in 3-10 days

0

15

Husqvarna 592857401

CABLE, 1/4 BLACK FIR TREE

$3.99

$

Usually ships in 3-10 days

0

32

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD
(Superseded to 521996502)

$3.49

$

In Stock, Qty 7

0

28

Husqvarna 532184471

SCREW, HEX HEAD, TAPPING
(Superseded to 594975601)

$2.49

$

Usually ships in 3-10 days

0

25

Husqvarna 592858401

SCREW 10-24 X .325 TORX PAN
(Superseded to 596584701)

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 592858001

BOLT 1/2 - 13 X 3.5 CARRIAGE

$8.49

$

Usually ships in 3-10 days

0

18

Husqvarna 874490652

HHFS 3/8-16 X 3.5 GD 5 ZD
(Superseded to 596637401)

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 590742702

COVER PTO VZ MS668 ORANGE

$107.99

$

Usually ships in 3-10 days

0

8

Husqvarna 589527401

WHEEL.GAUGE.RALLY.NARROW

$14.99

$

In Stock, Qty 20+

0

23

Husqvarna 592807601

BOLT HEXAGON SOCKET HEAD, SHOU

$5.99

$

Usually ships in 3-10 days

0

13

Husqvarna 589483501

SPRING.COMPRESS.SEAT.TAPERED

$9.99

$

In Stock, only 2 left!

0

35

Husqvarna 539109554

WASH USS FLAT 1/2
(Superseded to 595316401)

$3.99

$

In Stock, Qty 20+

0

17

Husqvarna 532171877

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

$5.99

$

In Stock, Qty 10

0

9

Husqvarna 589806801

SCREW.BUTTON.HEAD.TORX.3/8-161

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 872110618

BOLT CARRIAGE

$5.99

$

In Stock, Qty 15

0

7

Husqvarna 589623201

SHROUD PUMP

$59.99

$

In Stock, only 2 left!

0

1

Husqvarna 590782702

CHASSIS.WELDMENT.VZ.MS668

$2034.99

$

Usually ships in 3-10 days

0

27

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 20+

0

21

Husqvarna 872110514

BOLT, CARRIAGE

$

$

Not available

22

Husqvarna 872110508

BOLT CRT
(Superseded to 596435701)

$3.99

$

In Stock, Qty 20+

0

4

Husqvarna 590915302

BAFFLE PLATE PUMP X431 E-COAT

$89.99

$

Usually ships in 3-10 days

0

10

Husqvarna 590742906

PLATE OPERATOR STAND VZ MS498

$359.99

$

Usually ships in 3-10 days

0

5

Husqvarna 590743006

BRACKET ANGLE OPERATOR STAND V
(Superseded to 595317606)

$17.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$7.49

$

In Stock, Qty 20+

0

11

Husqvarna 590813003

PUMP SHROUD

$239.99

$

Usually ships in 3-10 days

0

26

Husqvarna 592858201

SCREW

$8.49

$

Usually ships in 3-10 days

0
