V 554 (967672601-00) - Husqvarna 54" Zero-Turn Mower (2017-11) CHASSIS LOWER Parts Diagram

54" Zero-Turn Mower

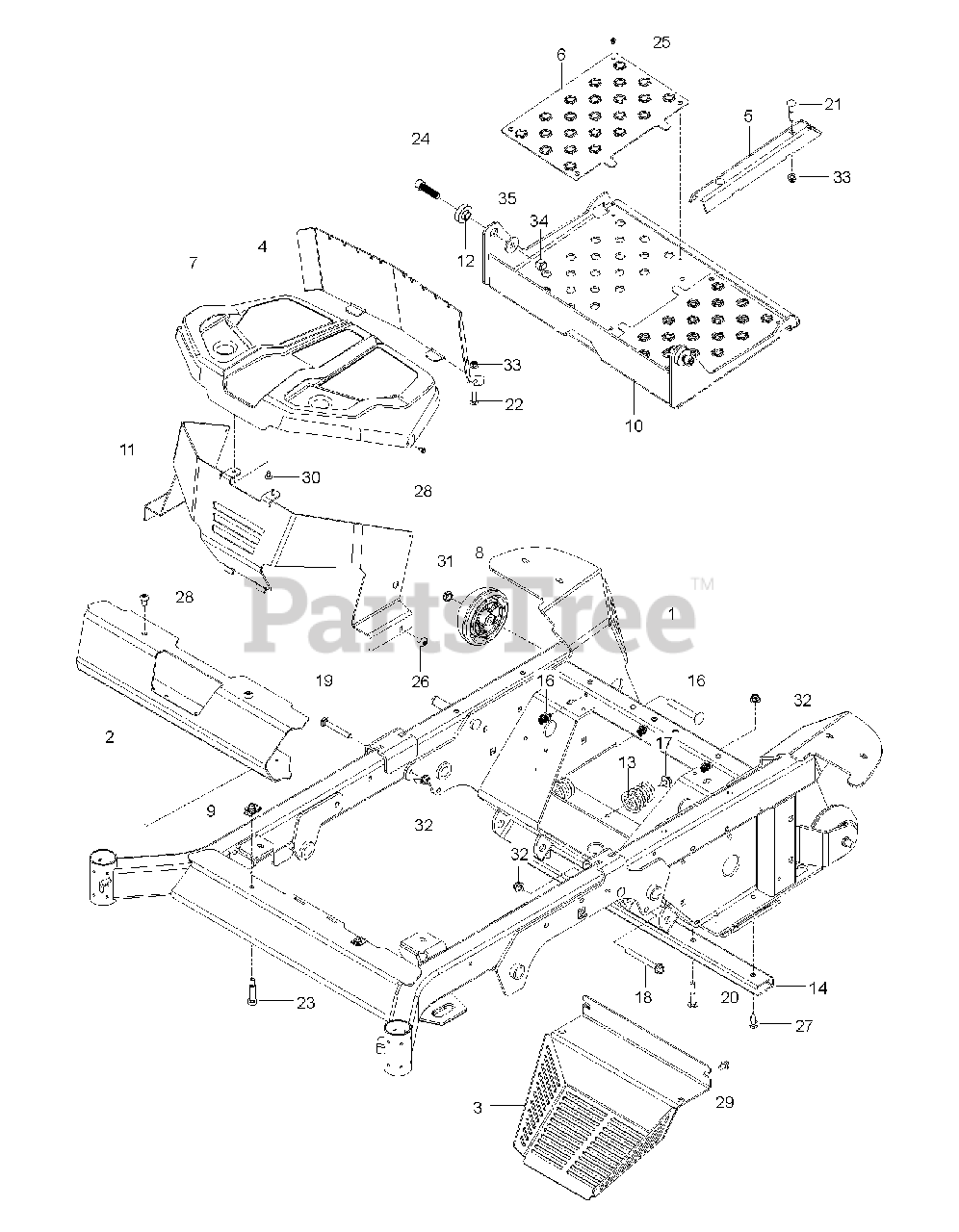

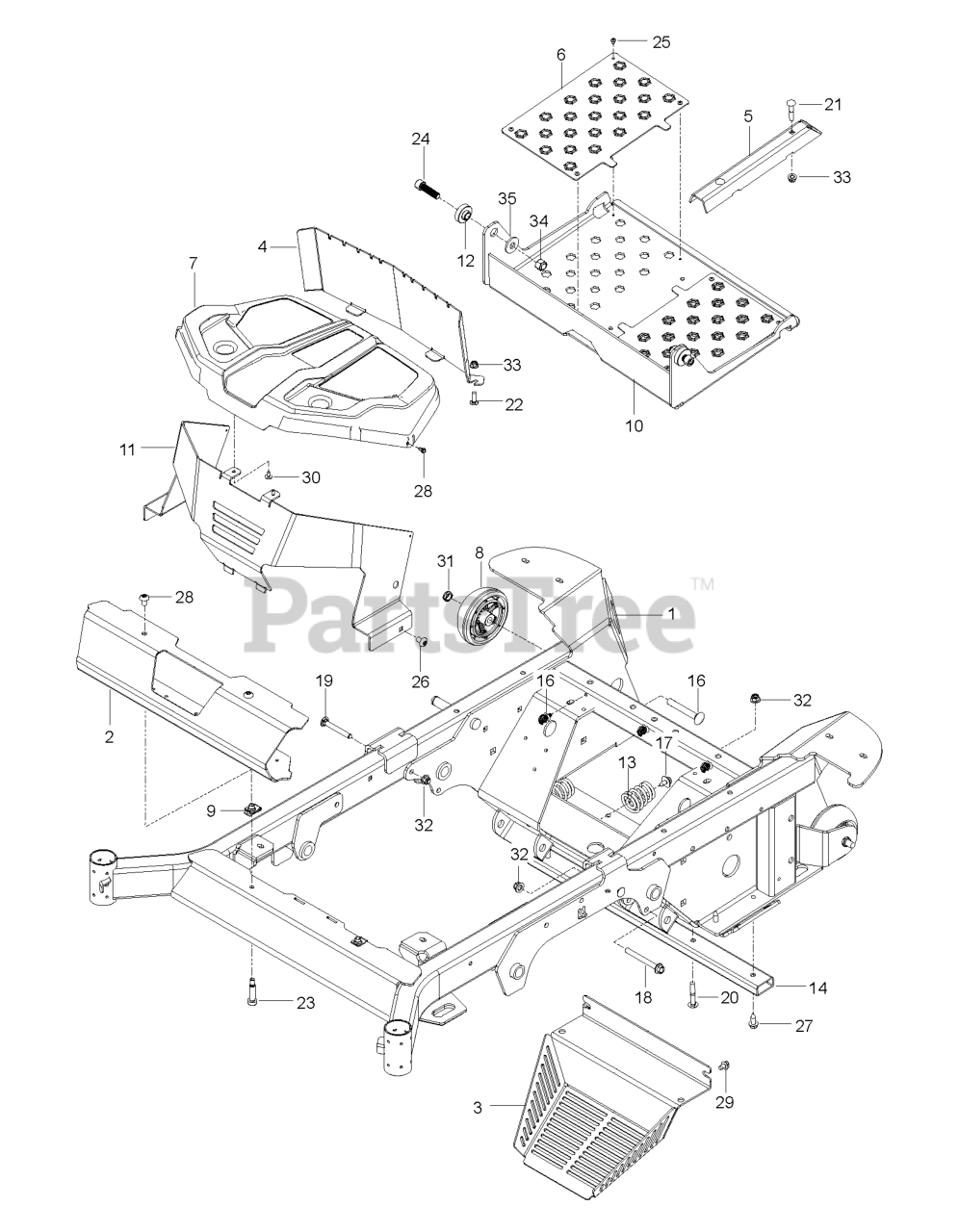

CHASSIS LOWER Parts Diagram

  • Title

1

Husqvarna 590782702

CHASSIS.WELDMENT.VZ.MS668

$1941.99

$

Usually ships in 3-10 days

0

2

Husqvarna 590743106

COVER FRONT CROSSMEMBER VZ

$84.99

$

Usually ships in 3-10 days

0

3

Husqvarna 590742702

COVER PTO VZ MS668 ORANGE

$121.99

$

Usually ships in 3-10 days

0

4

Husqvarna 590915302

BAFFLE PLATE PUMP X431 E-COAT

$48.99

$

Usually ships in 3-10 days

0

5

Husqvarna 590743006

BRACKET ANGLE OPERATOR STAND V

$30.99

$

Usually ships in 3-10 days

0

6

Husqvarna 590782902

FOOTPLATE OPERATOR STAND VZ MS

$66.99

$

Usually ships in 3-10 days

0

7

Husqvarna 589623201

SHROUD PUMP

$42.99

$

In Stock, only 1 left!

0

8

Husqvarna 589527401

Gage Wheel, Rally Narrow

$4.99

$

In Stock, Qty 20+

0

9

Husqvarna 589806801

SCREW.BUTTON.HEAD.TORX.3/8-161

$3.49

$

Usually ships in 3-10 days

0

10

Husqvarna 590742906

PLATE OPERATOR STAND VZ MS498

$194.99

$

Usually ships in 3-10 days

0

11

Husqvarna 590813003

PUMP SHROUD

$125.99

$

Usually ships in 3-10 days

0

12

Husqvarna 586701701

SPACER.IDLER.METAL.POWDER

$

$

Not available

13

Husqvarna 589483501

SPRING.COMPRESS.SEAT.

$4.99

$

In Stock, only 2 left!

0

14

Husqvarna 590782302

TUBE SKIDPLATE

$42.99

$

Usually ships in 3-10 days

0

15

Husqvarna 592857401

CABLE, 1/4 BLACK FIR TREE

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 592858001

Bolt, 1/2 - 13 X 3.5 Carriage

$4.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532171877

BOLT, 5/16-18 X 1 3/4

$7.49

$

In Stock, Qty 5

0

18

Husqvarna 874490652

HHFS 3/8-16 X 3.5 GD 5 ZD

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539122728

3/8-16 X 3` CARR BOLT

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 872110618

BOLT CARRIAGE

$6.49

$

Usually ships in 3-10 days

0

21

Husqvarna 872110514

Carriage Bolt

$4.99

$

Usually ships in 3-10 days

0

22

Husqvarna 872110508

BOLT CRT

$4.99

$

Usually ships in 3-10 days

0

23

Husqvarna 592807601

BOLT HEXAGON SOCKET HEAD, SHOU

$6.49

$

Usually ships in 3-10 days

0

24

Husqvarna 592857901

Bolt, 1/2-13 X 1.75 Cap

$4.99

$

Usually ships in 3-10 days

0

25

Husqvarna 592858401

SCREW 10-24 X .325 TORX PAN

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 592858201

Screw

$4.99

$

Usually ships in 3-10 days

0

27

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 5

0

28

Husqvarna 532184471

SCREW, HEX HEAD, TAPPING

$4.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539990858

SCR 5/16-18 X 1/2 SELFTAP ZN

$3.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532421756

SCREW.#10 X 0.500

$

$

Not available

31

Husqvarna 539108010

NUT 1/2-13 HEX JM NYL

$4.99

$

In Stock, Qty 5

0

32

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

33

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$4.99

$

In Stock, Qty 15

0

34

Husqvarna 539101331

RP NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$3.99

$

In Stock, Qty 20+

0

35

Husqvarna 539109554

WASH USS FLAT 1/2

$

$

Not available
