V 554 - Husqvarna 54" Zero-Turn Mower (Original) MOWER LIFT / DECK LIFT Parts Diagram

54" Zero-Turn Mower

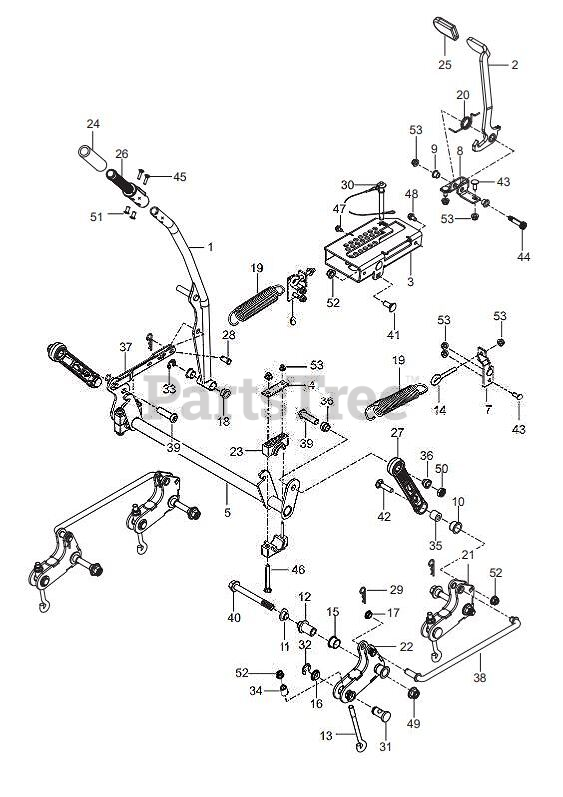

MOWER LIFT / DECK LIFT Parts Diagram

  • Title

32

Husqvarna 590673301

E-CLIP 7/8" SHAFT
(Superseded to 590673302)

$3.49

$

Usually ships in 3-10 days

0

48

Husqvarna 817490610

SCREW LT.3/8-46X5/8
(Superseded to 596564002)

$3.49

$

Usually ships in 3-10 days

0

14

Husqvarna 539107484

EYE BOLT
(Superseded to 596671601)

$3.49

$

Usually ships in 3-10 days

0

8

Husqvarna 590680202

BRACKET TRANSPORT MODE X431 E-

$22.99

$

Usually ships in 3-10 days

0

35

Husqvarna 590003502

SPACER LINKAGE PIVOT E-COAT BL

$17.99

$

Usually ships in 3-10 days

0

22

Husqvarna 589604902

BELLCRANK STANDON FRONT WELDME

$96.99

$

Usually ships in 3-10 days

0

38

Husqvarna 589414401

ROD.CONNECT.BELLCRANK.STANDON
(Superseded to 589414402)

$62.99

$

Usually ships in 3-10 days

0

1

Husqvarna 590897802

LEVER ASSY WELDMENT; DECK LIFT

$398.99

$

Usually ships in 3-10 days

0

19

Husqvarna 590003201

SPRING EXTENSION; STAND-ON DEC

$

$

Not available

28

Husqvarna 590866401

PIN CLEVIS; 1/2 X 1

$5.99

$

Usually ships in 3-10 days

0

37

Husqvarna 590662401

STRAP
(Superseded to 590662402)

$68.99

$

Usually ships in 3-10 days

0

4

Husqvarna 593634102

PLATE.PNT.PILLOW.BLOCK.EDIP

$3.49

$

Usually ships in 3-10 days

0

49

Husqvarna 525829101

NUT 5/8-11 FLG NYLOC ZD

$

$

Not available

46

Husqvarna 592859101

BOLT
(Superseded to 596584302)

$3.49

$

Usually ships in 3-10 days

0

12

Husqvarna 589414201

BUSHING STANDON BELLCRANK PIVO
(Superseded to 589414202)

$7.99

$

Usually ships in 3-10 days

0

23

Husqvarna 510023902

BLOCK, PILLOW

$14.99

$

Usually ships in 3-10 days

0

33

Husqvarna 590002901

RING E-CLIP 3/4" ID

$9.49

$

Usually ships in 3-10 days

0

42

Husqvarna 592807901

BOLT CUP HEAD SQUARE NECK 1/2-
(Superseded to 592807902)

$5.99

$

Usually ships in 3-10 days

0

30

Husqvarna 590465501

PIN.PUSH.BUTTON.DETENT..5X3.5
(Superseded to 590465502)

$39.99

$

Usually ships in 3-10 days

0

20

Husqvarna 590856101

SPRING TORSION; TRANSPORT MODE

$7.99

$

Usually ships in 3-10 days

0

27

Husqvarna 592727802

Links

$68.99

$

Usually ships in 3-10 days

0

39

Husqvarna 592807701

BOLT CUP HEAD SQUARE NECK 5/3-

$14.99

$

Usually ships in 3-10 days

0

24

Husqvarna 592723901

GRIP FOAM; DECK LIFT HANDLE

$9.99

$

Usually ships in 3-10 days

0

15

Husqvarna 501603702

BEARING FLANGED;PLASTIC 1" ID

$9.49

$

Usually ships in 3-10 days

0

43

Husqvarna 539990645

RHSNB 3/8C X 1
(Superseded to 595316801)

$4.99

$

In Stock, only 2 left!

0

25

Husqvarna 591041901

GRIP TRANSPORT MODE

$7.99

$

In Stock, only 1 left!

0

51

Husqvarna 592808201

NUT HEXAGON SOCKET CAP 1/4-20"

$3.49

$

Usually ships in 3-10 days

0

3

Husqvarna 589665102

PLATE DECK HEIGHT SELECTION X6

$125.99

$

Usually ships in 3-10 days

0

2

Husqvarna 590850502

LATCH WELDMENT; TRANSPORT MODE

$205.99

$

Usually ships in 3-10 days

0

26

Husqvarna 590960302

HANDLE DECK LIFT LEVER ARM HUS

$68.99

$

Usually ships in 3-10 days

0

40

Husqvarna 590678701

BOLT HEXAGON HEAD WITH FLANGE

$7.99

$

Usually ships in 3-10 days

0

9

Husqvarna 591042101

BUSHING FLANGED PLASTIC; RFI-0

$3.49

$

Usually ships in 3-10 days

0

11

Husqvarna 589414101

BUSHING STANDON BELLCRANK PIVO
(Superseded to 589414102)

$4.99

$

Usually ships in 3-10 days

0

5

Husqvarna 590197802

SHAFT WELDMENT; DECK LIFT X431

$205.99

$

Usually ships in 3-10 days

0

41

Husqvarna 592808001

BOLT CUP HEAD SQUARE NECK 1/2-

$5.99

$

Usually ships in 3-10 days

0

13

Husqvarna 576479001

EYEBOLT, DECK LIFT

$

$

Not available

16

Husqvarna 582464702

ARM.PNT.BELL.CRANK.REAR

$39.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539976989

HAIRPIN #4

$

$

Not available

45

Husqvarna 592807801

BOLT CUP HEAD SQUARE NECK 1/4-

$3.49

$

In Stock, Qty 7

0

31

Husqvarna 589414301

PIN STANDON DECK LIFT TRUNNION
(Superseded to 589414302)

$85.99

$

Usually ships in 3-10 days

0

6

Husqvarna 590673002

BRACKET SPRING ANCHOR LH X431

$22.99

$

Usually ships in 3-10 days

0

52

Husqvarna 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 12

0

21

Husqvarna 589605102

BELLCRANK STANDON REAR WELDMEN

$68.99

$

Usually ships in 3-10 days

0

53

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

17

Husqvarna 501603704

BEARING FLANGED;PLASTIC 5/8" I

$7.99

$

Usually ships in 3-10 days

0

50

Husqvarna 589677701

NUT.HH.THIN.NYL.5/8-11 GR5
(Superseded to 589677702)

$3.49

$

Usually ships in 3-10 days

0

44

Husqvarna 592807601

BOLT HEXAGON SOCKET HEAD, SHOU

$5.99

$

Usually ships in 3-10 days

0

36

Husqvarna 510362501

SPACER, STRUT

$

$

Not available

47

Husqvarna 539990858

SCR 5/16-18 X 1/2 SELFTAP ZN

$

$

Not available

34

Husqvarna 576485801

SPACER, EYEBOLT
(Superseded to 576485802)

$4.99

$

In Stock, only 3 left!

0

7

Husqvarna 590672902

BRACKET SPRING ANCHOR RH X431

$22.99

$

Usually ships in 3-10 days

0

10

Husqvarna 590866501

BUSHING NYLON 1 X 3/4

$4.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539131518

BEARING, FLANGE

$13.99

$

In Stock, Qty 11

0
