V 60 GG (13AV60GG897) - Columbia 42" Lawn Tractor (2009) Drive Assembly Parts Diagram

42" Lawn Tractor

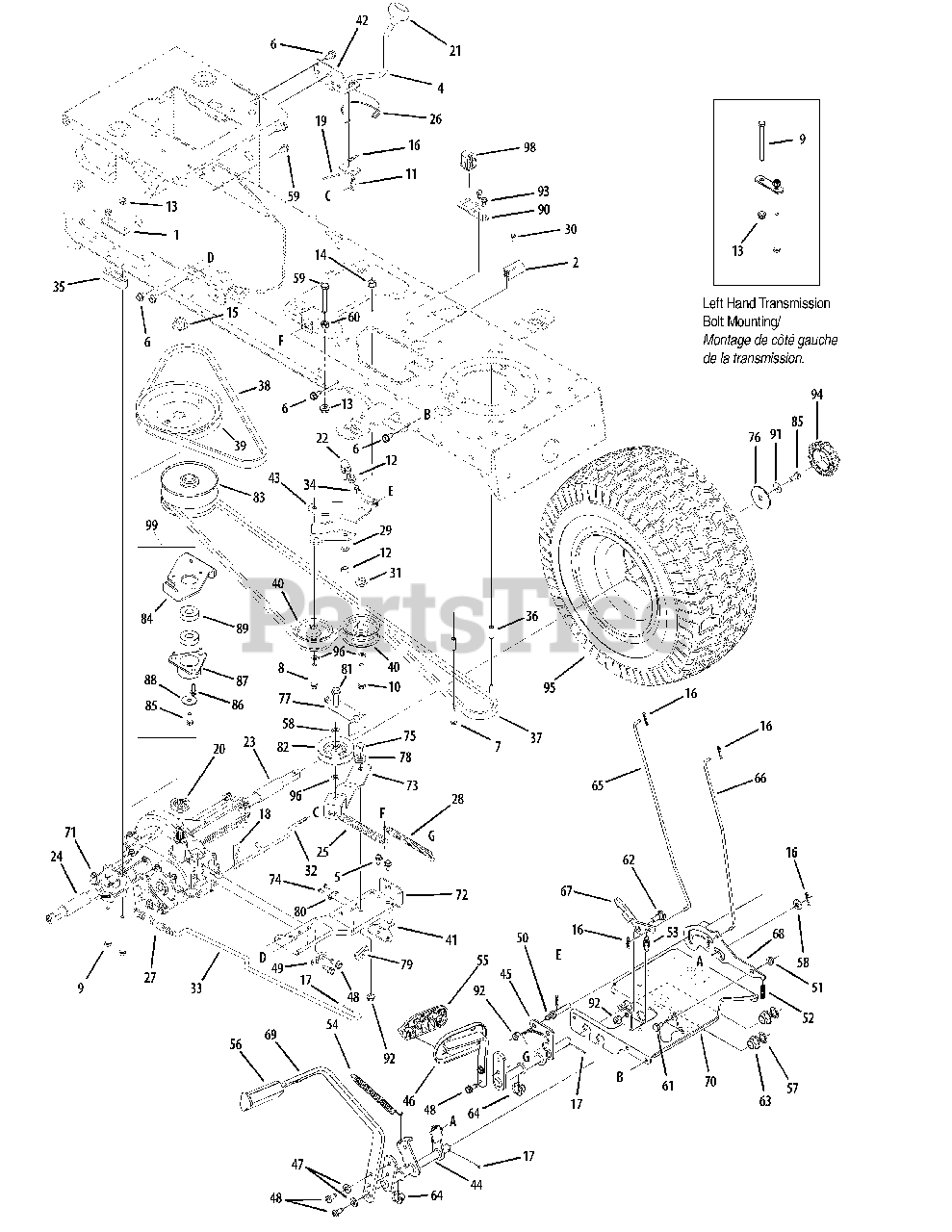

Drive Assembly Parts Diagram

  • Title

1

White Outdoor 17840-0637

Transaxle Mtg. Brkt.

$10.99

$

Usually ships in 3-6 days

0

2

White Outdoor 925-04039

Inter lock Switch

$22.99

$

In Stock, Qty 20+

0

4

White Outdoor 647-04020

Shift Lever Ass’y

$27.99

$

Usually ships in 3-6 days

0

5

White Outdoor 710-0607

Hex Wash HD S-Tapp Scr 5/16-18 x .50

$6.49

$

In Stock, Qty 20+

0

6

White Outdoor 710-04484

S-Tapp Scr 5/16-18 x .75

$3.49

$

In Stock, Qty 20+

0

7

White Outdoor 710-0809

Hex Bolt 1/4-20 x 1.25

$6.49

$

In Stock, Qty 20+

0

8

White Outdoor 710-1007

Hex L-Wash HD Scr 3/8-16 x 1.5

$5.99

$

In Stock, Qty 7

0

9

White Outdoor 710-1266

Hex Bolt 5/16-18 x 3.5" Lg.

$9.49

$

Usually ships in 3-6 days

0

10

White Outdoor 710-3144

Hex Bolt 3/8-16 x 2.0" Lg. (Gr. 5)

$4.49

$

In Stock, Qty 20+

0

11

White Outdoor 711-0736

Adjustment ferrule

$13.99

$

In Stock, only 2 left!

0

12

White Outdoor 712-0241

Hex Nut 3/8-24

$4.49

$

In Stock, Qty 20+

0

13

White Outdoor 712-04063

Flange Locknut 5/16-18 Gr. F, Nylon

$3.99

$

In Stock, Qty 20+

0

14

White Outdoor 912-0431

Flange Locknut 3/8-16 Gr. F

$4.99

$

In Stock, Qty 20+

0

15

White Outdoor 712-0700

Flange Nut

$10.99

$

In Stock, Qty 18

0

16

White Outdoor 914-0104

Int. Cotter Pin .072 x 1.13" Lg.
(Superseded to 714-0104)

$3.99

$

In Stock, Qty 20+

0

17

White Outdoor 914-0111

Cotter Pin 3/32 dia x 1.00 Lg.
(Superseded to 714-0111)

$4.49

$

In Stock, Qty 20+

0

18

White Outdoor 914-0209

Cotter Pin

$3.49

$

Usually ships in 3-6 days

0

19

White Outdoor 914-0470

Cotter Pin 1/8" Dia x 1.25
(Superseded to 714-0470)

$3.99

$

In Stock, Qty 20+

0

20

White Outdoor 718-04407

Pulley Hub 5/8" Spline

$11.99

$

In Stock, Qty 13

0

21

White Outdoor 720-04028

Shift Knob

$10.99

$

In Stock, Qty 10

0

22

White Outdoor 923-3018

Drag Link Ball Joint

$15.99

$

In Stock, Qty 20+

0

23

White Outdoor 731-04602

Sleeve, .758 x .821 x 3.3125

$5.99

$

Usually ships in 3-6 days

0

24

White Outdoor 731-04604

Sleeve, .758 x .821 x 2.4375

$6.49

$

Usually ships in 3-6 days

0

25

White Outdoor 932-04370A

Extension Spring .62 dia. x 6.12

$12.99

$

In Stock, only 4 left!

0

26

White Outdoor 732-0525

Complete Spring Clip

$9.49

$

In Stock, Qty 6

0

27

White Outdoor 732-0716D

Extension Spring .59 x 4.0

$12.99

$

In Stock, Qty 20+

0

28

White Outdoor 732-0963

Extension Spring, .50 Dia. x 6.37

$8.99

$

In Stock, Qty 20+

0

29

White Outdoor 936-0169

L-Wash 3/8 ID
(Superseded to 736-0169)

$3.49

$

In Stock, Qty 20+

0

30

White Outdoor 738-04237A

Shld. Scr. #10-32 x .5

$5.99

$

In Stock, Qty 20+

0

31

White Outdoor 738-0372B

Shoulder Spacer

$8.99

$

In Stock, Qty 20+

0

32

White Outdoor 747-04146C

Shift Rod

$20.99

$

In Stock, Qty 6

0

33

White Outdoor 747-04164

Brake Rod

$

$

Not available

34

White Outdoor 747-1127

Idler Adjustment Rod, 3/8

$39.99

$

Usually ships in 3-6 days

0

35

White Outdoor 948-0334

Transaxle Spacer

$9.99

$

In Stock, only 1 left!

0

36

White Outdoor 750-0566A

Spacer .260 x .375 x 1.030 Lg.

$9.49

$

In Stock, Qty 7

0

37

White Outdoor 954-0467

Variable-speed Belt
(Superseded to 954-0467A)

$50.99

$

In Stock, Qty 20+

0

38

White Outdoor 954-0468

Drive Belt

$30.99

$

In Stock, Qty 20+

0

39

White Outdoor 956-04002

Pulley, V-Type, 7.25 dia.

$25.99

$

In Stock, Qty 20+

0

40

White Outdoor 756-04224

Idler Pulley, Flat 2.75 OD

$24.99

$

In Stock, Qty 20+

0

41

White Outdoor 783-04283

Shift Bracket

$

$

Not available

42

White Outdoor 783-04360

Shift Bracket F-N-R

$13.99

$

Usually ships in 3-6 days

0

43

White Outdoor 783-04442-0637

Idler Bracket

$33.99

$

In Stock, Qty 13

0

44

White Outdoor 647-04100-0637

Brake Control Assembly

$

$

Not available

45

White Outdoor 647-0032A-0637

Speed Control

$

$

Not available

46

White Outdoor 683-0266

AutoDrive Pedal Assembly

$84.99

$

Usually ships in 3-6 days

0

47

White Outdoor 936-0119

L-Wash 5/16 ID

$4.49

$

In Stock, Qty 20+

0

48

White Outdoor 710-1260A

Hex Wash. Hd. Scr. 5/16-18 x .75 Lg.

$3.49

$

In Stock, Qty 20+

0

49

White Outdoor 936-0264

Flat Washer .344 ID x .625 OD x .063

$6.49

$

In Stock, Qty 11

0

50

White Outdoor 711-04159B

Pin 3/8-16 x 2.68 Lg.

$7.49

$

Usually ships in 3-6 days

0

51

White Outdoor 712-3004A

Hex Flange L-Nut 5/16-18

$3.49

$

In Stock, Qty 20+

0

52

White Outdoor 732-0335

Compression Spring

$4.99

$

In Stock, only 3 left!

0

53

White Outdoor 732-0955

Extension Spring, .50 OD x 1.41

$8.99

$

In Stock, only 1 left!

0

54

White Outdoor 732-0963

Extension Spring, .50 Dia. x 6.37

$8.99

$

In Stock, Qty 20+

0

55

White Outdoor 735-0662

AutoDrive Pedal Pad

$11.99

$

Usually ships in 3-6 days

0

56

White Outdoor 735-3049A

Brake Pad

$11.99

$

In Stock, Qty 7

0

57

White Outdoor 736-0187

Flat Washer .640 ID x 1.24 OD x .06

$4.49

$

In Stock, Qty 20+

0

58

White Outdoor 736-0262

Flat Washer .38 ID x .87 OD x .09

$3.99

$

In Stock, Qty 20+

0

59

White Outdoor 710-3103

Hex Hd Cap Scr. 5/16-18 x 2.0 Gr. 5

$4.49

$

In Stock, Qty 19

0

60

White Outdoor 912-3010

Hex Nut 516-18 Gr. 5
(Superseded to 712-3010)

$

$

Not available

61

White Outdoor 938-0155

Shld. Scr .437 Dia x .162 Lg.

$6.49

$

Usually ships in 3-6 days

0

62

White Outdoor 938-0380

Shoulder Screw .500 x .25
(Superseded to 738-0380)

$7.49

$

In Stock, Qty 18

0

63

White Outdoor 941-0225

Hex Flange Bearing .630 ID

$6.99

$

In Stock, Qty 20+

0

64

White Outdoor 741-3065B

Hex Flanged Bearing .628 ID

$7.49

$

In Stock, Qty 20+

0

65

White Outdoor 747-04093A

Brake Lock Rod

$

$

Not available

66

White Outdoor 747-04096

Cruise Control Rod

$15.99

$

Usually ships in 3-6 days

0

67

White Outdoor 748-04039C

Cruise Control Latch

$

$

Not available

68

White Outdoor 783-0732A

Lock out Bracket

$31.99

$

Usually ships in 3-6 days

0

69

White Outdoor 747-04641A-0637

Brake Pedal

$29.99

$

Usually ships in 3-6 days

0

70

White Outdoor 783-04612-0637

Steering Support Bracket

$83.99

$

In Stock, only 3 left!

0

71

White Outdoor 918-04566

Transmission Ass’y
(Superseded to 918-04566B)

$668.99

$

In Stock, Qty 5

0

72

White Outdoor 683-04287

Torque Bracket Assembly

$28.99

$

Usually ships in 3-6 days

0

73

White Outdoor 783-05904-0637

Idler Bracket
(Superseded to 783-05904)

$20.99

$

Usually ships in 3-6 days

0

74

White Outdoor 710-0227

Hex Wash HD AB S-Tapp Scr #8-.50

$3.99

$

In Stock, Qty 20+

0

75

White Outdoor 638-04012A

Hex Screw 3/8-16 x 1.25

$20.99

$

In Stock, Qty 20+

0

76

White Outdoor 736-0430

Flat Washer .350 ID x 1.59 OD x .062

$3.99

$

In Stock, Qty 20+

0

77

White Outdoor 732-1013A

Belt Guard

$10.99

$

In Stock, only 4 left!

0

78

White Outdoor 738-04162A

Shoulder Spacer .884 ID x .190
(Superseded to 738-04162C)

$12.99

$

In Stock, Qty 20+

0

79

White Outdoor 725-1644

Short Spring Switch

$8.99

$

In Stock, only 2 left!

0

80

White Outdoor 926-0320

Insulator Nut Plate

$6.49

$

In Stock, Qty 10

0

81

White Outdoor 710-04467

Sems Screw 3/8-16 x 2.5
(Superseded to 710-06045)

$4.99

$

In Stock, Qty 5

0

82

White Outdoor 756-04324

Idler Pulley, V-Type 5L x 3.06

$26.99

$

In Stock, Qty 5

0

83

White Outdoor 956-04015

Variable Speed Pulley Ass’y 4.75 OD
(Superseded to 956-04015B)

$96.99

$

In Stock, Qty 20+

0

84

White Outdoor 683-04296

Pulley Bracket

$24.99

$

Usually ships in 3-6 days

0

85

White Outdoor 710-0627

Hex L-Bolt 5/16-24 x .75 Gr. 5

$3.99

$

In Stock, Qty 20+

0

86

White Outdoor 710-0778

Hex Wash HD Bolt 1/4-20 x 1.50" Lg.

$3.99

$

In Stock, Qty 16

0

87

White Outdoor 718-04261

Bearing Cup

$18.99

$

In Stock, Qty 17

0

88

White Outdoor 736-0362

Flat Washer .22 ID x 1.25

$4.49

$

In Stock, Qty 20+

0

89

White Outdoor 941-0124

Ball Bearing
(Superseded to 941-0600)

$23.99

$

In Stock, Qty 20+

0

90

White Outdoor 783-04722-0637

Switch Bracket, Parking Brake

$

$

Not available

91

White Outdoor 736-0242

Cupped Washer .345 ID x .88 OD x .060

$3.99

$

In Stock, Qty 20+

0

92

White Outdoor 712-04065

Flange Lock-Nut 3/8-16 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

93

White Outdoor 710-0599

Hex Wash S-Tapp Scr 1/4-20 x .50

$3.99

$

In Stock, Qty 20+

0

94

White Outdoor 731-2290A

Hub Cap
(Superseded to 731-2290B)

$4.49

$

In Stock, Qty 20+

0

95

White Outdoor 634-0104-0911

Wheel Assembly Complete, 20 x 8 x 8

$509.99

$

Usually ships in 3-6 days

0

95

White Outdoor 634-04369-0662

Rim Only

Note: Not shown

$153.99

$

Usually ships in 3-6 days

0

95

White Outdoor 934-0255

Air Valve

Note: Not shown

$3.99

$

In Stock, Qty 20+

0

95

White Outdoor 734-1730-0901

Tire Only, 20 x 8 x 8, Square Shoulder

Note: Not shown

$92.99

$

In Stock, Qty 8

0

96

White Outdoor 736-3010

Flat Washer .406 ID x .812 OD x .134

$4.49

$

In Stock, Qty 20+

0

98

White Outdoor 925-3167

Switch

$13.99

$

In Stock, Qty 5

0

99

White Outdoor 918-04423A

Variable Speed Pulley Ass'y (Incl. Ref. Nos. 84-89)

$164.99

$

In Stock, Qty 6

0
