V48-12.5KO-5 - Exmark 48" Viking Walk-Behind Mower, 12.5hp Kohler (SN: 080000 - 089999) (1993) Engine Deck Group Parts Diagram

48" Viking Walk-Behind Mower, 12.5hp Kohler

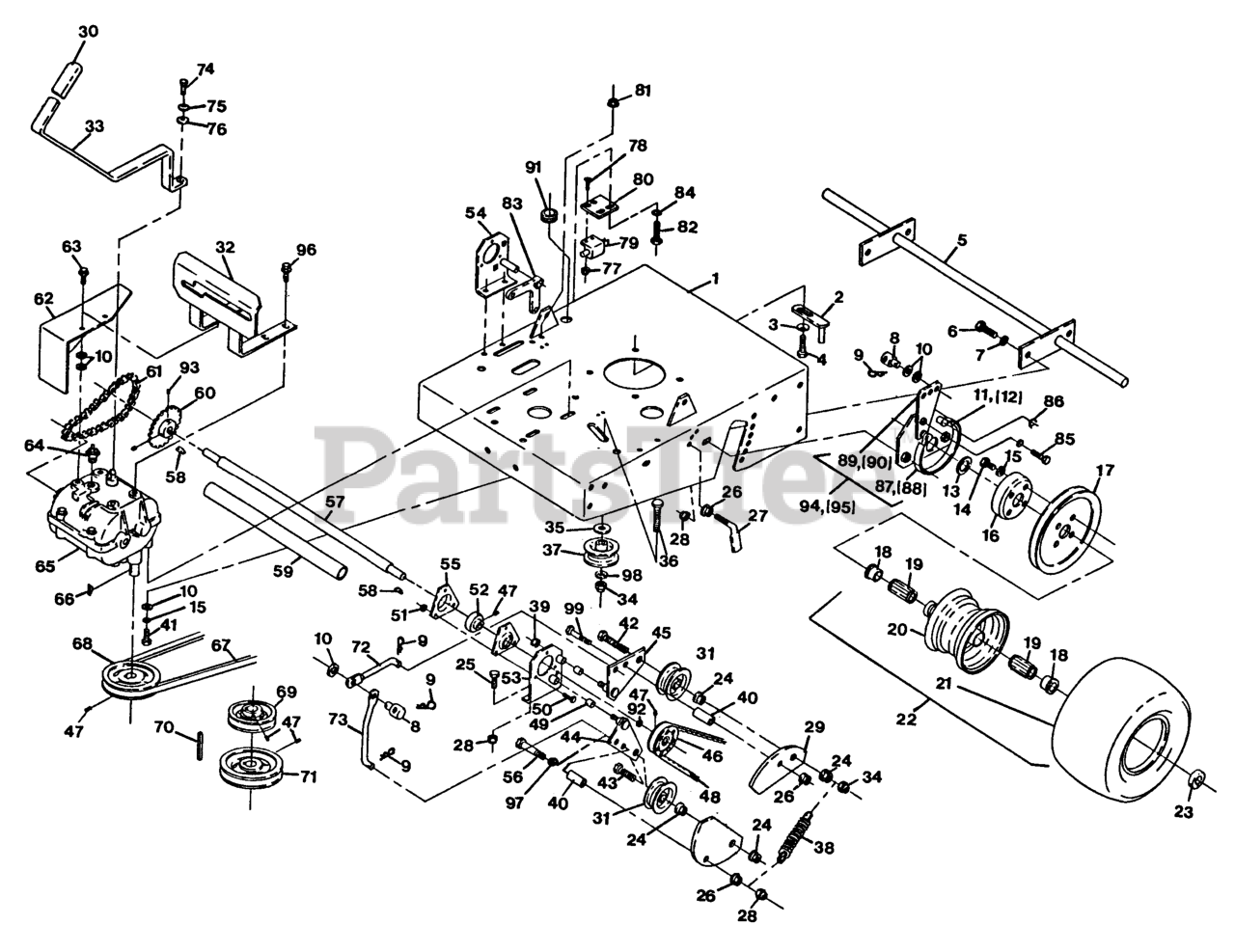

Engine Deck Group Parts Diagram

  • Title

1

Exmark 1-322079-01

DISCONTINUED (EXMARK)

$

$

Not available

2

Exmark 1-322012

GUIDE - BELT, 32

$

$

Not available

3

Exmark 1-303334

WASHER-SPRING

Note: Kawasaki & Kohler

$2.99

$

In Stock, Qty 7

0

4

Exmark 1-809018

33114-030
(Superseded to 33114-030)

Note: Kawasaki & Kohler

$1.49

$

Usually ships in 3-6 days

0

5

Exmark 1-302035-01

DISCONTINUED

$

$

Not available

6

Exmark 1-800292

323-6
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

7

Exmark 1-805006

3253-5
(Superseded to 3253-5)

$0.99

$

In Stock, Qty 20+

0

8

Exmark 1-303168

SWIVEL,SHORT ADJUSTING

$

$

Not available

9

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

10

Exmark 1-805258

3256-3
(Superseded to 3256-3)

$0.99

$

In Stock, Qty 20+

0

11

Exmark 1-302037

DISCONTINUED

$

$

Not available

12

Exmark 1-302036

BAND,BRAKE LH

Note: Not Shown)

$63.99

$

In Stock, only 1 left!

0

13

Exmark 1-513338

WASHER-FLAT

$4.49

$

In Stock, Qty 20+

0

14

Exmark 1-800273

322-5
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

15

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

16

Exmark 1-303463

DISCONTINUED

$

$

Not available

17

Exmark 1-303464

SHEAVE,SPLIT STEEL 9 B

$88.99

$

In Stock, only 1 left!

0

18

Exmark 1-303123

DISCONTINUED

$

$

Not available

19

Exmark 1-303122

BEARING,ROLLER

$16.99

$

Usually ships in 3-6 days

0

20

Exmark 1-302160

DISCONTINUED

$

$

Not available

21

Exmark 1-303125

1-323720
(Superseded to 1-323720)

$120.99

$

Usually ships in 3-6 days

0

22

Exmark 1-303469

DISCONTINUED

$

$

Not available

23

Exmark 1-809005

COLLAR,LOCKING 7/8

$37.99

$

Usually ships in 3-6 days

0

24

Exmark 1-809007

3290-357
(Superseded to 3290-357)

$0.99

$

In Stock, Qty 20+

0

25

Exmark 1-800271

322-3
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

26

Exmark 1-809001

32128-20
(Superseded to 32128-20)

$1.49

$

In Stock, Qty 20+

0

27

Exmark 1-303151

DISCONTINUED

$

$

Not available

28

Exmark 1-804256

3296-29
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

29

Exmark 1-323202-03

DISCONTINUED (EXMARK)

$

$

Not available

30

Exmark 1-303020

GRIP-LEVER

$2.99

$

In Stock, Qty 8

0

31

Exmark 1-303076

PULLEY,IDLER

$18.99

$

In Stock, Qty 7

0

32

Exmark 1-322106-03

103-0787
(Superseded to 103-0787)

$144.99

$

Usually ships in 3-6 days

0

33

Exmark 1-323220

1-322107
(Superseded to 1-322107)

$

$

Not available

34

Exmark 1-804257

3296-39
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

35

Exmark 1-805262

3256-5
(Superseded to 3256-5)

$0.99

$

In Stock, Qty 5

0

36

Exmark 1-807511

3231-6
(Superseded to 3231-6)

$2.99

$

In Stock, Qty 20+

0

37

Exmark 1-303516

IDLER,PULLEY

$52.99

$

In Stock, Qty 11

0

38

Exmark 1-323161

SPRING-IDLER

$11.99

$

In Stock, Qty 6

0

Exmark 1-323071

SPRING-EXTENSION

$15.99

$

In Stock, Qty 20+

0

39

Exmark 1-803013

NUTTORQUE ZKPLT

$

$

Not available

40

Exmark 1-323236

SPACER

$7.99

$

Usually ships in 3-6 days

0

41

Exmark 1-800272

322-4
(Superseded to 322-4)

$0.99

$

In Stock, Qty 20+

0

42

Exmark 1-800031

DISCONTINUED

$

$

Not available

43

Exmark 1-800296

323-10
(Superseded to 323-10)

$0.99

$

In Stock, Qty 20+

0

44

Exmark 1-322038

ARM - IDLER

$34.99

$

Usually ships in 3-6 days

0

45

Exmark 1-322040

ARM - IDLER

$34.99

$

In Stock, only 2 left!

0

46

Exmark 1-303409-03

DISCONTINUED

$

$

Not available

47

Exmark 1-803310

SCREW-SET

$2.99

$

In Stock, only 3 left!

0

48

Exmark 1-323051

BELT,COG

$45.99

$

In Stock, Qty 18

0

49

Exmark 1-303143

1-303548
(Superseded to 1-303548)

$5.49

$

In Stock, only 3 left!

0

50

Exmark 1-800251

321-3
(Superseded to 321-3)

$1.49

$

In Stock, Qty 15

0

51

Exmark 1-804255

3296-42
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

52

Exmark 1-303067

DISCONTINUED

$

$

Not available

53

Exmark 1-322041

1-302229
(Superseded to 1-302229)

$

$

Not available

54

Exmark 1-322042

1-302228
(Superseded to 1-302228)

$

$

Not available

55

Exmark 1-303066

DISCONTINUED

$

$

Not available

56

Exmark 1-800279

322-12
(Superseded to 322-12)

$1.99

$

In Stock, Qty 14

0

57

Exmark 1-323109

JACKSHAFT

$

$

Not available

58

Exmark 1-807006

3257-32
(Superseded to 3257-32)

$2.99

$

In Stock, Qty 20+

0

59

Exmark 1-303513

$

$

Currently unavailable

60

Exmark 1-323110

DISCONTINUED

$

$

Not available

61

Exmark 1-323111

CHAIN,DRIVE

$78.99

$

In Stock, only 1 left!

0

62

Exmark 1-323035

1-323243-01
(Superseded to 1-323243-01)

$

$

Not available

63

Exmark 1-809013

9264964
(Superseded to 9264964)

$1.49

$

In Stock, only 2 left!

0

64

Exmark 1-303282

SWITCH-START, NEUTRAL

$49.99

$

In Stock, Qty 11

0

65

Exmark 1-322057

1-321010
(Superseded to 1-321010)

$965.99

$

Usually ships in 3-6 days

0

Exmark 1-323112

SPROCKET,GEARBOX 5 SPEED

$

$

Not available

66

Exmark 1-807009

3257-5
(Superseded to 3257-5)

$5.49

$

In Stock, Qty 20+

0

67

Exmark 1-403018

BELT,TRANSMISSION
(Superseded to 1-403018-SL)

$38.99

$

Usually ships in 3-6 days

0

68

Exmark 1-403019

DISCONTINUED

$

$

Not available

69

Exmark 1-323070

DISCONTINUED

$

$

Not available

70

Exmark 1-807264

KEY,MACH 1/4X1/4X2-5/8

$5.49

$

In Stock, Qty 9

0

71

Exmark 1-303498

SHEAVE,BLADE DRIVE

$145.99

$

In Stock, only 3 left!

0

Exmark 1-403087

1-403160
(Superseded to 1-403160)

$79.99

$

Usually ships in 3-6 days

0

72

Exmark 1-323163

LINKAGE,UPPR CALIPERPLT

$

$

Not available

73

Exmark 1-323084

LINKAGE,LOWER CALIPER RH

$21.99

$

In Stock, only 1 left!

0

Exmark 1-323086

DISCONTINUED (EXMARK)

Note: (Not Shown)

$

$

Not available

74

Exmark 1-800502

DISCONTINUED

$

$

Not available

75

Exmark 1-323235

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

76

Exmark 1-805256

3256-2
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

77

Exmark 1-804252

3296-2
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

78

Exmark 1-803017

32108-55
(Superseded to 32108-55)

Note: Countersunk

$1.99

$

Usually ships in 3-6 days

0

79

Exmark 1-513051

SWITCH-OPEN, NORMALLY

$18.99

$

In Stock, Qty 18

0

80

Exmark 1-323128

BRACKET,SAFETY SWITCH

$

$

Not available

81

Exmark 1-809012

32128-33
(Superseded to 32128-33)

$0.99

$

In Stock, Qty 20+

0

82

Exmark 1-800252

321-4
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

83

Exmark 1-303186

BELLCRANK

$56.99

$

In Stock, only 2 left!

0

84

Exmark 1-805255

3256-22
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

85

Exmark 1-800250

321-2
(Superseded to 321-2)

$3.49

$

Usually ships in 3-6 days

0

86

Exmark 1-808250

PIN-LEVER, DRIVE

$2.99

$

In Stock, Qty 20+

0

87

Exmark 1-302178

1-302178-01
(Superseded to 1-302178-01)

$

$

Not available

88

Exmark 1-302179

1-302179-01
(Superseded to 1-302179-01)

Note: (Not Shown)

$62.99

$

Usually ships in 3-6 days

0

89

Exmark 1-302175-01

WLD,BRAKE LEVER RH

$

$

Not available

90

Exmark 1-302177-01

DISCONTINUED

Note: (Not Shown)

$

$

Not available

91

Exmark 1-543296

GROMMET

$8.49

$

In Stock, Qty 7

0

92

Exmark 1-303164

1-323539
(Superseded to 1-323539)

$2.49

$

In Stock, Qty 20+

0

93

Exmark 1-803022

SCREW-SET

$2.99

$

In Stock, Qty 20+

0

94

Exmark 1-302185

ASM,BRAKE LH

$187.99

$

Usually ships in 3-6 days

0

95

Exmark 1-302184

ASM,BRAKE RH

$

$

Not available

96

Exmark 1-809064

DISCONTINUED (EXMARK)

$

$

Not available

97

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

98

Exmark 1-805259

3256-24
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

99

Exmark 1-800277

322-10
(Superseded to 322-10)

$0.99

$

In Stock, Qty 10

0
