V5000E (9079-0) - Generac 5,000 Watt Portable Generator Receptacle Panel Parts Diagram

5,000 Watt Portable Generator

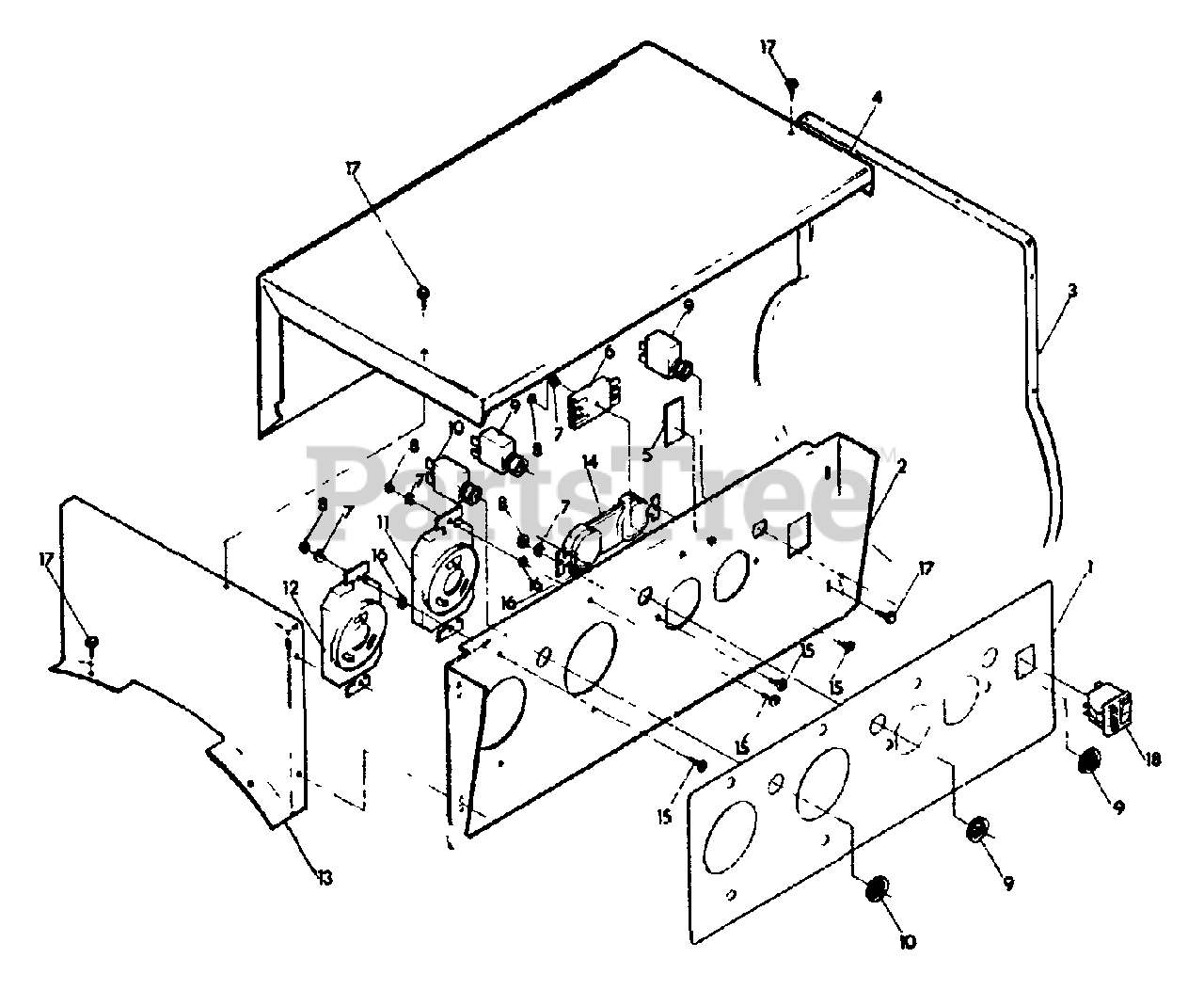

Receptacle Panel Parts Diagram

  • Title

1

Briggs & Stratton 76237

DECAL, Panel- V4000E

$

$

Currently unavailable

1

Briggs & Stratton 76238

DECAL, Panel- V5000E

$

$

Currently unavailable

2

Briggs & Stratton 76230

PANEL, Receptacle

$

$

Currently unavailable

3

Briggs & Stratton 44328

PANEL, End

$

$

Not available

4

Briggs & Stratton 76232

SHROUD, Panel- V4000E

$

$

Currently unavailable

4

Briggs & Stratton 75493

SHROUD, Panel- V5000E

$

$

Currently unavailable

5

Briggs & Stratton 27565

TAPE, Insulator- 38mm

$

$

Currently unavailable

6

Briggs & Stratton 65795

RECTIFIER, Battery Charge
(Superseded to 65795GS)

$

$

Not available

7

Briggs & Stratton 22264

LOCKWASHER- M4

$

$

Not available

8

Briggs & Stratton 51715

NUT, Hex - M4-0.70
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 75207

BREAKER, Circuit- 20 amp
(Superseded to 209872GS)

$9.99

$

Usually ships in 2-12 days

0

10

75207A

BREAKER, Circuit- 30 amp

$

$

Not available

11

Briggs & Stratton 68868

RECEPTACLE- 120 volts, 30 amp
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 68867

RECEPTACLE- 120/240 Volts, 20 amp
(Superseded to 68867GS)

$46.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 43874

PANEL, Back
(Superseded to 7043874YP)

$34.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 68759

RECEPTACLE, Duplex- 120 volts
(Superseded to 68759GS)

$24.99

$

In Stock, only 2 left!

0

15

Briggs & Stratton 75475

SCREW, Pan Head- M4-0.70 x 10mm

$

$

Not available

16

Briggs & Stratton 23365

LOKWASHER (Shakeproof)- M4
(Superseded to 5023365)

$462.99

$

In Stock, only 2 left!

0

17

Briggs & Stratton 24489

SCREW (Taptite)- No. 10-32 x 3/8"

$

$

Currently unavailable

18

Briggs & Stratton 66817

SWITCH, Engine-Run/Stop (with A.C. ON Lamp)
(Superseded to 66817GS)

$39.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 37806

PLUG, Connector- 120 volts, 30 amp Twistlock
(Superseded to 100523GS)

$20.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 43483

PLUG, Connector- 120/240 volts, 20 amp Twistlock
(Superseded to 100522GS)

$34.99

$

Usually ships in 2-12 days

0
